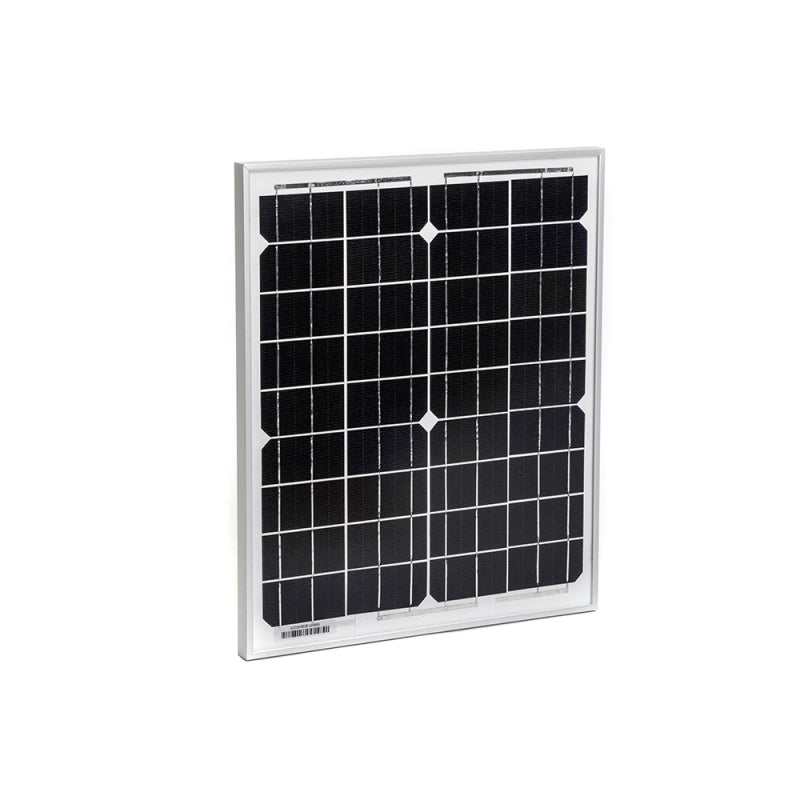

WATTSTUNDE® WS30M Solar Module Monocrystalline 30Wp
WATTHOUR 30 Watt Solar Module Monocrystalline
Special features at a glance:
- 30 watt monocrystalline solar module
- High efficiency of 18%
- Anti-reflective glass
- Junction box with 2 PG screw connections IP65
- Bypass diodes integrated
- Pre-wired with 50cm solar cable and MC4 connectors (+ / -)
- Easy connection of multiple modules thanks to MC4 connectors
- Performance guarantee 25 years
- Product warranty 5 years
Easy installation, quick commissioning and prepared materials make your setup a breeze!
The modules are encased in a sturdy hollow-chamber profile frame, ensuring maximum stability, even under extreme conditions. Thanks to their anti-reflective glass, the modules allow significantly more light to pass through, thus ensuring higher transmission than other modules. The efficiency of the monocrystalline solar modules is 18%.
The solar modules of the MONO series are high-quality modules with monocrystalline cells that always promise top results and a high energy yield.
They can be installed and used in any self-sufficient battery application, such as in motorhomes, garden sheds, camping, island systems, and all off-grid systems. Thanks to the integrated bypass diodes in the junction box, the module can continue to produce power even in shade or low light conditions.
Technical data | WS30M |
---|---|
Module type | 12 V module |
Rated power (Pmpp) | 30 Wp |
Max. daily yield (summer) | 120 Wh/d |
Short-circuit current (Isc) | 2.0 A |
Open circuit voltage (Uoc) | 21.0 V |
Voltage (Umpp) | 18.0 V |
Electricity (Impp) | 1.67 A |
Cell efficiency | 18% |
Cell count | 36 |
Junction box | IP65 |
Mass | 510 x 480 x 25 mm |
Weight | 2.5 kg |
