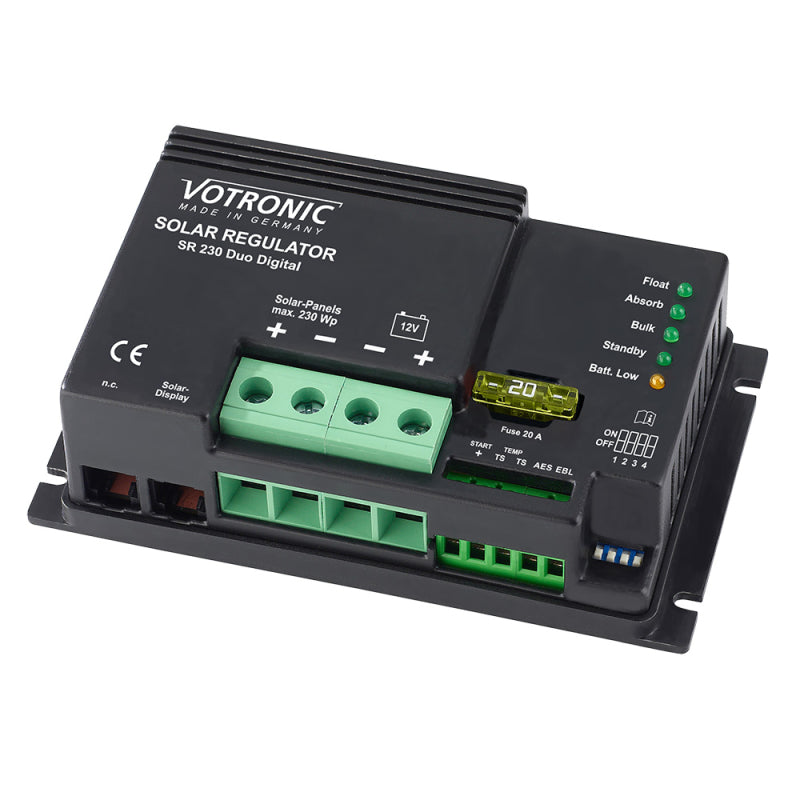

Votronic solar charge controller SR 230 Duo Dig. - 1616

Name: Votronic solar charge controller SR 230 Duo Dig. - 1616
Brand: VOTRONIC
SKU: 300-10521
Price: 104.70 EUR
Availability: InStock

€104,70

Tax included. Shipping calculated at checkout

Quantity:

Votronic SR 230 Duo Dig Charge Controller up to 230W

Effective battery charging for motorhomes, caravans, boats and self-sufficient solar systems! The VOTRONIC solar regulators act as the link between the solar module and the battery, operate fully automatically and ensure optimal charging of the battery without overcharging.

Overview of special features:

Main charging output I: Automatic charging of the on-board battery
Auxiliary charging output II: Recharging and trickle charging of the starter battery
Overcharge protection
Gassing control
Backflow prevention
On-board power supply filter
Integrated temperature compensation
For 12V applications
Reverse polarity protection
Suitable for all battery types

A correctly dimensioned solar system makes motorhomes, caravans or boats self-sufficient and consists of three components: solar module, solar charge controller and battery.

During the day, power consumption is immediately recharged, and at night, reverse discharge of the battery is prevented. The devices are characterized by high operational reliability. High-quality charging technology combined with intelligent microprocessor control ensures exact adherence to charging voltages, currents and times. The main charging output with IU1oU2 charging characteristic can be optimally set for acid/wet batteries, gel or AGM/fleece batteries.
With the temperature sensor (recommended accessory) for battery temperature compensation, the charging voltage is automatically increased at low temperatures (winter operation), and the weakened battery is charged better and faster. At summer temperatures, the charging voltage is reduced, which reduces the load (gassing) on the battery and increases the service life of sealed (e.g. gel) batteries. The second charging output has reduced voltage and current and is used for supplementary charging and trickle charging of the vehicle's starter battery during long periods of inactivity.

Note: The classic functionality of PWM regulators is becoming less and less compatible with the sensitive battery management systems of modern LiFePO4 batteries. Therefore, this characteristic curve has been omitted from the new SR charge controllers, and we strongly recommend using MPP regulators for charging lithium batteries.

Technical data	Votronic SR230 Duo Dig
Battery nominal voltage (AC) in [V]	12
Solar module power max. [Wp]	230
Solar module current max. [A]	14.5
Solar module voltage max. [V]	28
Charging current Batt. I / II max. [A]	14.5 / 0.8
Charging characteristic	IU1oU2
Battery type adjustable	Acid, Gel, AGM
Self-consumption in [A]	0.004
Overcharge protection	yes
Backflow prevention (night operation)	yes
On-board power supply filter	yes
Number of charging outputs	2
Protection against overload, overheating, reverse polarity	yes
Temperature sensor connection	yes
Compensation of voltage losses on the charging cables	yes
Connection LCD-Solar-Computer S	yes
Output EBL solar power display	yes
Temperature range [°C]	-20 to +45
Dimensions in [mm] - incl. mounting flanges	131 x 77 x 40
Weight [g]	155
