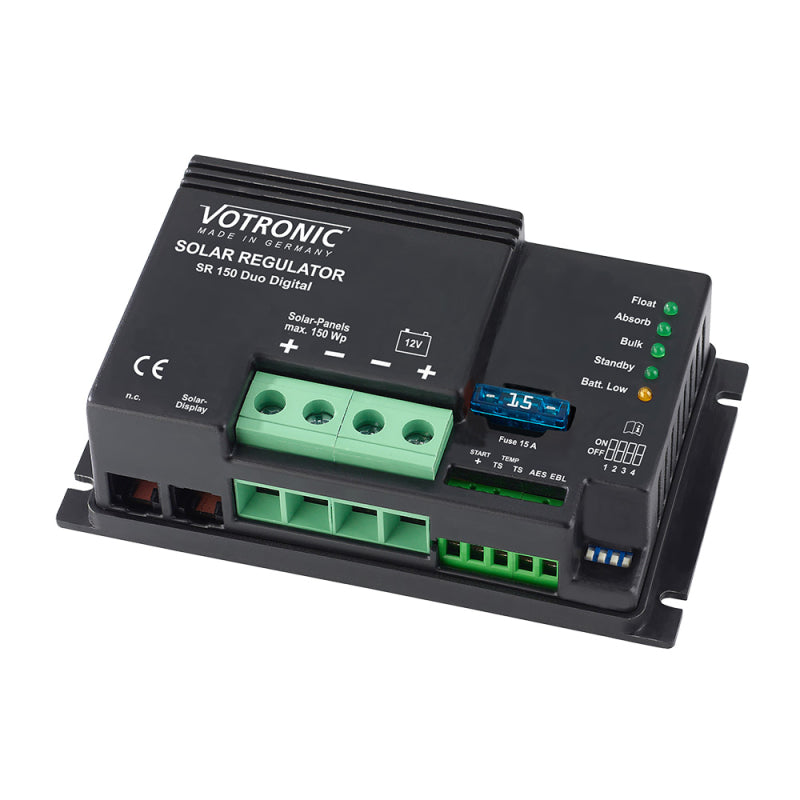

Votronic solar charge controller SR 150 Duo Dig. - 1611

Name: Votronic solar charge controller SR 150 Duo Dig. - 1611
Brand: VOTRONIC
SKU: 300-10511
Price: 92.00 EUR
Availability: InStock

€92,00

Tax included. Shipping calculated at checkout

Quantity:

Votronic SR 150 Duo Dig Charge Controller up to 150 W

Effective battery charging for motorhomes, caravans, boats and self-sufficient solar systems! VOTRONIC solar controllers act as the link between the solar module and the battery, operate fully automatically and ensure optimal charging of the battery without overcharging.

Special features at a glance:

Main charging output I: Automatic charging of the leisure battery
Auxiliary charging output II: Recharging and trickle charging of the starter battery
Overcharge protection
Gassing control
Reverse current blocking
On-board power filter
Integrated temperature compensation
For 12V applications
Reverse polarity protection
Suitable for all battery types

A solar system, correctly sized, makes motorhomes, caravans or boats self-sufficient and consists of three components: solar module, solar charge controller and battery.

During the day, power consumption is immediately recharged, and at night, reverse discharge of the battery is prevented. The devices are characterized by high operational reliability. High-quality charging technology combined with intelligent microprocessor control ensures the exact adherence to charging voltages, currents and times. The main charging output with IU1oU2 charging characteristic can be optimally set for acid/wet batteries, gel or AGM/fleece batteries.
With the temperature sensor (recommended accessory) for battery temperature compensation, the charging voltage is automatically increased at low temperatures (winter operation), allowing the weakened battery to be charged better and faster. At summer temperatures, the charging voltage is reduced, thereby reducing the stress (gassing) on the battery and/or increasing the lifespan of sealed (e.g. gel) batteries. The second charging output is voltage and current reduced and serves as support charging and trickle charging for the vehicle starter battery during long periods of inactivity.

Note: The classic functionality of PWM controllers is becoming less and less suitable for the sensitive battery management systems of modern LiFePO4 batteries. Therefore, this characteristic is omitted in the new SR charge controllers, and we strongly recommend using MPP controllers for charging lithium batteries.

Technical Data	Votronic SR150 Duo Dig
Battery nominal voltage (AC) in [V]	12
Solar module power max. [Wp]	150
Solar module current max. [A]	9.5
Solar module voltage max. [V]	28
Charging current Batt. I / II max. [A]	9.5 / 0.8
Charging characteristic	IU1oU2
Battery type adjustable	Acid, Gel, AGM
Self-consumption in [A]	0.004
Overcharge protection	yes
Reverse current blocking (night operation)	yes
On-board power filter	yes
Number of charging outputs	2
Protection against overload, overheating, reverse polarity	yes
Temperature sensor connection	yes
Compensation of voltage losses on the charging cables	yes
LCD Solar Computer S connection	yes
EBL solar power display output	yes
Temperature range [°C]	-20 to +45
Dimensions in [mm] - incl. mounting flanges	131 x 77 x 40
Weight [g]	150
