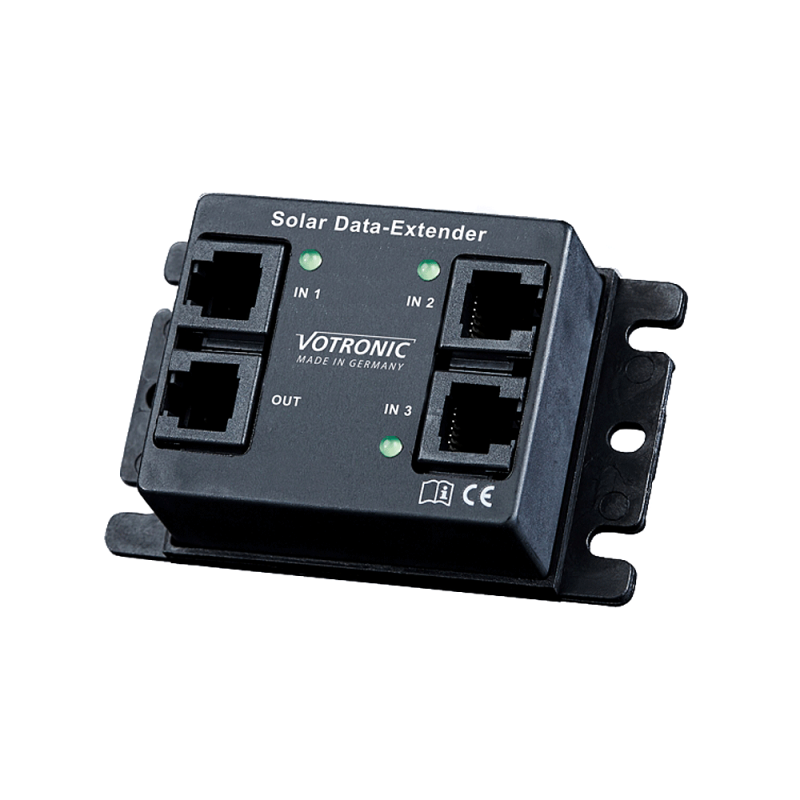

Votronic Solar Data Extender 3n1 - 1440
Quantity:
The Solar Data Extender combines the data from up to three solar controllers, allowing them to be displayed on a single screen. The familiar LCD display can still be used. It is compatible with the following devices.
Assembly and connection
The Solar Data Extender can be retrofitted at any time. It has three independent inputs (IN1, IN2, IN3). The signals are combined and provided via the output (OUT). A solar display (e.g., LCD Solar Computer S) can be connected there.
It is connected between the Votronic solar charge controller and the solar display (e.g., LCD Solar Computer S) using the included modular cable. The IN1 connection must always be connected, as it supplies the device with power.
Technical data Data Extender 3 in 1
| Nominal voltage (supply via connected devices) | 12 and 24 |
| Operating voltage range [V] | 8 - 32 |
| Current consumption in standby, typical [mA] | 0.7 |
| Current consumption during activity, typical [mA} | 10 |
| Dimensions (WxHxD) in [mm] | 75 x 47 x 24 |
| Weight in [g] | 37 |
| Test mark | CE, E-test (EMC/Vehicle Directive) |
| Ambient conditions, humidity: max. 95% room humidity, non-condensing | |
| Scope of delivery: 3 pcs. control cable 6-pin 0.5 m long, operating instructions | |
