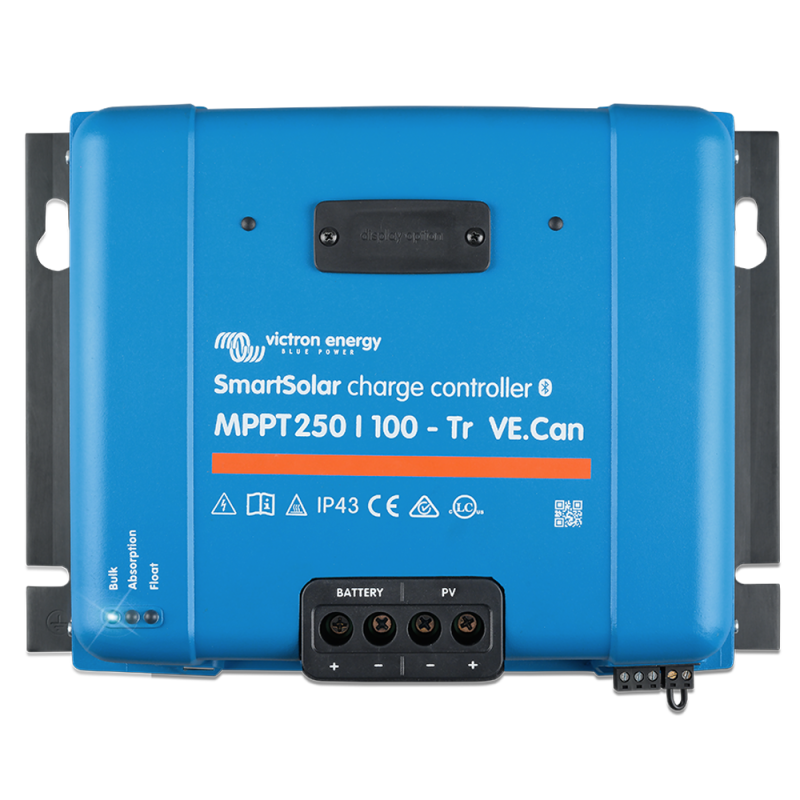

Victron SmartSolar MPPT 250/100-Tr VE.Can Bluetooth integrated

Victron SmartSolar 250/100-Tr VE.Can

Ultra-fast MPPT Tracking
Especially in cloudy conditions, when light intensity is constantly changing, the ultra-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in Partial Shading.
In cases of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP, which may not be the optimal MPP. The SmartSolar device's innovative algorithm will always maximize energy yield by locking onto the optimal MPP.

Highlight: Real-time data display on your smartphone! Built-in Bluetooth Smart: No dongle required
A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets, or other devices.
Unlike BlueSolar controllers, the Bluetooth interface is already built in here, so no additional accessories need to be purchased.

Intelligent Battery Management with the BatteryLife Algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the bulk voltage is reached. From this point, the load disconnect threshold is modulated so that the bulk voltage is reached approximately once a week.
The BatteryLife algorithm will extend the battery's operational life compared to conventional battery algorithms that always cycle between "partially charged" and "fully charged" (due to low self-discharge).

Optional: pluggable LCD display
Simply remove the rubber seal protecting the connector on the front of the controller and plug in the display.
You can find the display here in our webshop: SmartSolar Display

Internal temperature sensor and optional external measurement of battery voltage, temperature, and current via Bluetooth
With a Smart Battery Sense, a BMV-712 Smart Battery Monitor, or a SmartShunt, battery voltage and temperature (and current, in the case of a BMV 712 or a SmartShunt) can be transmitted to one or more SmartSolar charge controllers.

Recovery function for fully discharged batteries
Will initiate charging even if the battery has been discharged to 0 Volts. Will reconnect to a fully discharged lithium-ion battery with internal disconnect function.

Synchronized parallel charging with VE.Can or Bluetooth
Up to 25 devices can be synchronized with VE.Can, and up to 10 devices with Bluetooth.

VE.Can: the solution for multiple controllers
Up to 25 controllers can be synchronized with VE.Can.



Technical Data	SmartSolar MPPT 250 / 100
Battery voltage	12 V / 24 V / 48 V
Rated charge current	100 A
Rated PV power 12 V	1450 W
Rated PV power 24 V	2900 W
Rated PV power 48 V	5800 W
Max. PV open circuit voltage	250 V
Max. PV short circuit current	70 A
Efficiency	99 %
Absorption voltage	14.4 V / 28.8 V / 43.2 V / 57.6 V
Float voltage	13.8 V / 27.6 V / 41.4 V / 55.2 V
Operating temperature	- 30 °C - + 60 °C
Weight	4.5 kg
Dimensions	216 x 295 x 103 mm
