Victron SmartSolar MPPT 150/60-Tr Bluetooth integrated

Name: Victron SmartSolar MPPT 150/60-Tr Bluetooth integrated
Brand: Victron Energy
SKU: 300-3223
Price: 427.21 EUR
Availability: InStock

€427,21

Tax included. Shipping calculated at checkout

Quantity:

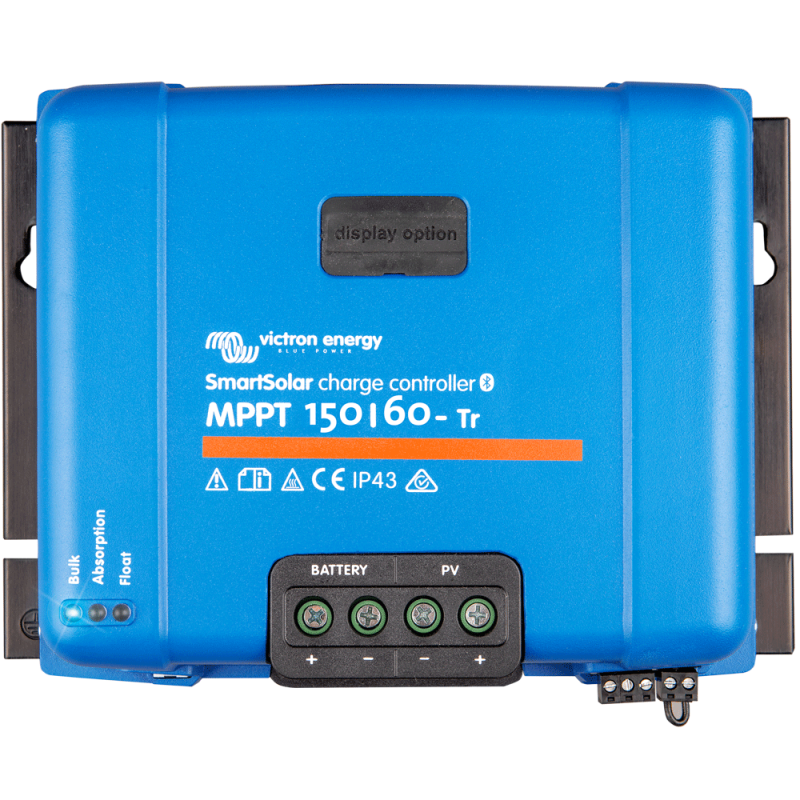

MPP Solar Charge Controller MPPT SmartSolar 150/60-Tr by Victron.

Ultra-fast MPPT tracking
Especially in cloudy conditions, when light intensity is constantly changing, the ultra-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point detection in case of partial shading. In cases of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP, but this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by adapting to the optimal MPP.

Highlight: Real-time data display on smartphone! Built-in Bluetooth Smart: No dongle required
A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets, or other devices.
Unlike the BlueSolar controllers, the Bluetooth interface is already built-in, so no additional accessories need to be purchased.

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the bulk voltage is reached. From this point, the load disconnect threshold is modulated so that the bulk voltage is reached approximately once a week.
The BatteryLife algorithm will extend the battery's operational life compared to conventional battery algorithms that always cycle between "partially charged" and "fully charged" (due to low self-discharge).

Internal temperature sensor
Compensates bulk and float charge voltages based on temperature

Extensive electronic protection
- Overheating protection and power derating at high temperatures.
- Protection against PV short circuit and PV reverse polarity.
- PV reverse current protection.

Excellent efficiency
No cooling fan. Maximum efficiency over 98%. Full output current up to 40°C.

Technical data	BlueSolar MPPT 150 / 60
Battery voltage	12 V / 24 V / 48 V
Rated charge current	60 A
Rated PV - Power 12 V	860 W
Rated PV - Power 24 V	1720 W
Rated PV - Power 48 V	2440 W
Max. PV - Open circuit voltage	150 V
Max. PV - Short circuit current	50 A
Efficiency	98 %
Bulk - Charge voltage	14,4 V / 28,8 V / 57,6 V
Float - Charge voltage	13,8 V / 27,6 V / 41,4 V / 55,2 V
Operating temperature	- 30 °C - + 60 °C
Weight	3 kg
Dimensions	185 x 250 x 95 mm
