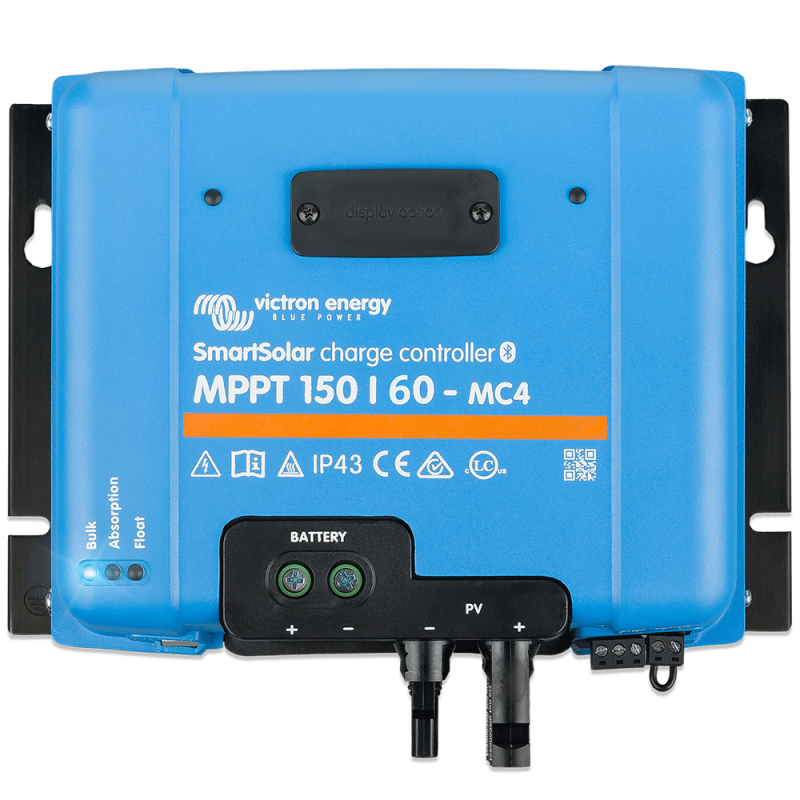

Victron SmartSolar MPPT 150/60-MC4 Bluetooth integrated

Name: Victron SmartSolar MPPT 150/60-MC4 Bluetooth integrated
Brand: Victron Energy
SKU: 300-12121
Price: 427.21 EUR
Availability: InStock

€427,21

Tax included. Shipping calculated at checkout

Quantity:

MPP Solar Charge Controller MPPT 150/60 by Victron.

A charge controller is the heart of every solar system, connecting the solar panel to the battery. The solar controller uses powerful technology to convert the voltage, which varies throughout the day, into a voltage adapted to the loads or optimized for ideal and gentle battery charging.

Ultra-fast MPPT tracking
Especially under cloudy skies, when light intensity changes constantly, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point detection in case of partial shading. In case of partial shading, two or more maximum power points (MPP) can exist on the current-voltage curve. Conventional MPPTs tend to settle on a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by settling on the optimal MPP.

Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of data live. Further information and the dongle can be found here in our shop.

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the bulk voltage is reached. From this point, the load disconnect threshold is modulated so that the bulk voltage is reached approximately once a week. The BatteryLife algorithm will extend the battery's operating life compared to conventional battery algorithms that always alternate between "partially charged" and "fully charged" (due to low self-discharge).

Internal temperature sensor
An internal temperature measurement unit is, of course, built in, so that bulk and float voltages are temperature compensated. The full output current can thus be guaranteed up to 40°C.

Automatic battery voltage detection
The MPPT 150 / 60 automatically adapts to a 12 V, 24 V, or 48 V system.

Three-stage charging: Instead of simply charging at a constant voltage up to the charge voltage, an innovative multi-stage system is used (constant current, constant voltage, and float phase).

Technical Data	SmartSolar MPPT 150 / 60 MC4
Battery Voltage	12 V / 24 V / 48 V
Rated Charge Current	60 A
Rated PV Power 12 V	860 W
Rated PV Power 24 V	1720 W
Rated PV Power 48 V	3440 W
Max. PV Open Circuit Voltage	150 V
Max. PV Short Circuit Current	50 A
Efficiency	98 %
Bulk Charge Voltage	14.4 V / 28.8 V / 57.6 V
Float Charge Voltage	13.8 V / 27.6 V / 41.4 V / 55.2 V
Operating Temperature	- 30 °C - + 60 °C
Weight	3 kg
Dimensions	215 x 250 x 95 mm
