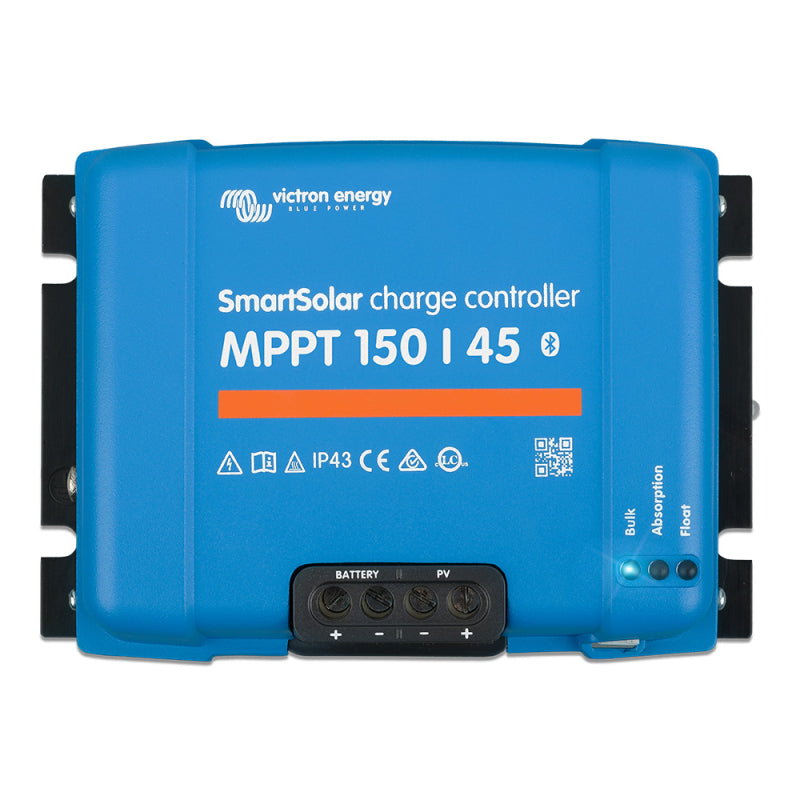

Victron SmartSolar MPPT 150/45 solar charge controller

Name: Victron SmartSolar MPPT 150/45 solar charge controller
Brand: Victron Energy
SKU: 300-12091
Price: 265.37 EUR
Availability: InStock

€265,37

Tax included. Shipping calculated at checkout

Quantity:

MPP Solar Charge Controller MPPT 150/45 by Victron.

A charge controller is the heart of any solar system, connecting the solar panel to the battery. The solar controller uses powerful technology to convert the fluctuating voltage throughout the day into a voltage adapted to the loads or optimized for ideal and gentle battery charging.

Ultra-fast MPPT tracking
Especially under cloudy skies, when light intensity is constantly changing, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading. In the event of partial shading, two or more maximum power points (MPP) may be present on the current-voltage curve. Conventional MPPTs tend to settle on a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by adjusting to the optimal MPP.

Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of data live. Further information and the dongle can be found here in our shop

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until the bulk voltage is reached. From this point on, the load disconnect threshold is modulated so that the bulk voltage is reached approximately once a week. The BatteryLife algorithm will increase the operational life of the battery compared to conventional battery algorithms that always cycle between "partially charged" and "fully charged" (due to low self-discharge).

Internal temperature sensor
An internal temperature measuring unit is, of course, built in, so that constant and float voltages are temperature-compensated. The full output current can thus be guaranteed up to 40°C.

Automatic battery voltage detection
The MPPT 150/45 automatically adapts to a 12 V, 24 V, or 48 V system.

Three-stage charging: Instead of simply charging at a constant voltage up to the charge voltage, an innovative multi-stage system is used. (Constant current, constant voltage, and float phase.)

Technical Data	SmartSolar MPPT 150/45
Battery voltage	12 V / 24 V
Rated charge current	50 A
Rated PV power 12 V	700 W
Rated PV power 24 V	1400 W
Max. PV open-circuit voltage	100 V
Max. PV short-circuit current	60 A
Efficiency	98 %
Absorption voltage	14.4 V / 28.8 V
Float voltage	13.8 V / 27.6 V
Operating temperature	- 30 °C - + 60 °C
Weight	1.3 kg
Dimensions	130 x 186 x 70 mm
