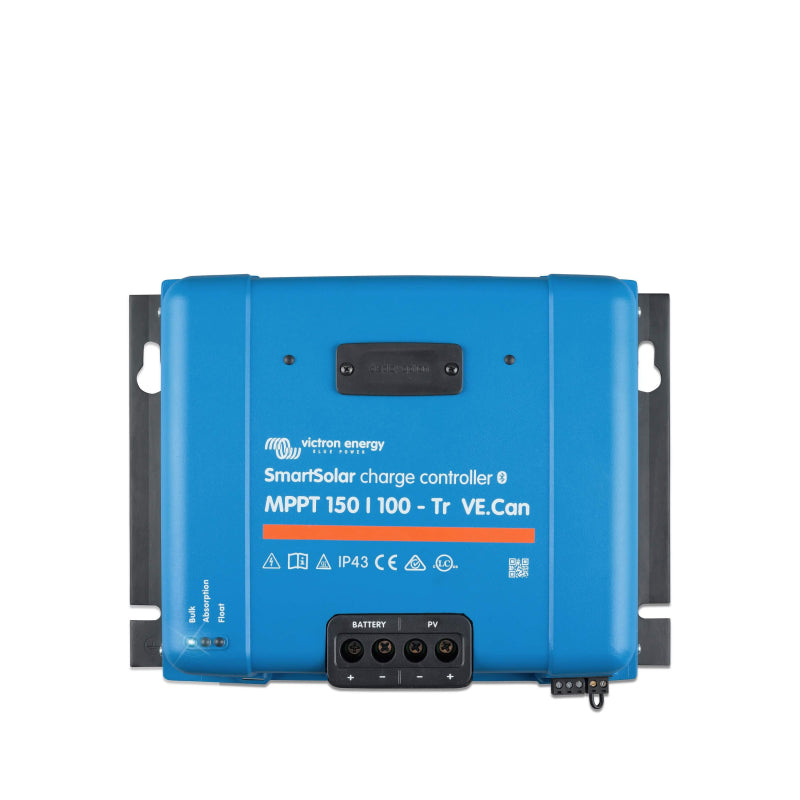

Victron SmartSolar MPPT 150/100-Tr VE.Can Bluetooth integrated

Victron SmartSolar 150/100-Tr MPPT Solar Charge Controller

Ultra-fast MPPT tracking
Especially under overcast conditions, when the light intensity is constantly changing, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in Partial Shading. In the case of partial shading, there may be two or more Maximum Power Points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP, but this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by locking onto the optimal MPP.

Highlight: Display of data in real time on your smartphone! Built-in Bluetooth Smart: No dongle required
A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.
In contrast to the BlueSolar controllers, the Bluetooth interface is already built in, so no additional accessories need to be purchased.

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnection threshold every day until the constant voltage is reached. From this point on, the load disconnection threshold is modulated so that the constant voltage is reached approximately once a week.
The BatteryLife algorithm will increase the operating life of the battery compared to conventional battery algorithms that always switch between “partially charged” and “fully charged” (due to low self-discharge)

Optional: plug-in LCD display
Simply remove the rubber seal that protects the connector on the front of the controller and plug in the display.
You can find the display here in our webshop: SmartSolar Display

Internal temperature sensor
Balances constant and float voltages according to temperature

Comprehensive electronic protection
- Overheating protection and load reduction at high temperatures.
- Protection against PV short circuit and PV reverse polarity.
- PV reverse current protection.

Excellent efficiency
No cooling fan. Maximum efficiency over 98%. Full output current up to 40°C.

VE.Can: the solution for multiple controllers
With VE.Can up to 25 controllers can be synchronized.

VE.Direct and VE.Can
For a wired data connection to a Color Control GX, other GX products, a PC or other devices
