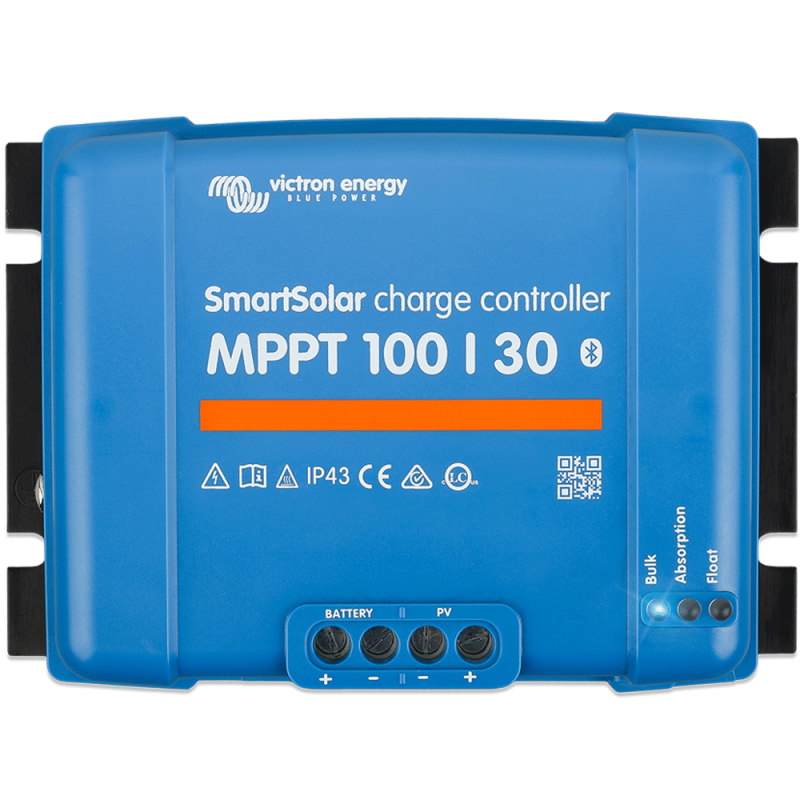

Victron SmartSolar MPPT 100/30 Bluetooth integrated

Victron Energy

Victron SmartSolar MPPT 100/30 Bluetooth integrated

Sale price€144,69

Tax included.

Quantity:

MPP solar charge controller MPPT SmartSolar 100/30 from Victron.

Ultra-fast MPPT tracking
Especially under overcast conditions, when the light intensity is constantly changing, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in Partial Shading. In the case of partial shading, there may be two or more Maximum Power Points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP, but this may not be the optimal MPP. The innovative algorithm of the SmartSolar device will always maximize energy yield by locking onto the optimal MPP.

Highlight: Display of data in real time on your smartphone! Built-in Bluetooth Smart: No dongle required
A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.
In contrast to the BlueSolar controllers, the Bluetooth interface is already built in, so no additional accessories need to be purchased.

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnection threshold every day until the constant voltage is reached. From this point on, the load disconnection threshold is modulated so that the constant voltage is reached approximately once a week.
The BatteryLife algorithm will increase the operating life of the battery compared to conventional battery algorithms that always switch between partially charged and fully charged (due to low self-discharge)

Technical data SmartSolar MPPT 100 / 30
Battery voltage 12V / 24V
Nominal charging current 30A
Nominal PV power 12 V 440W
Nominal PV power 24 V 880W
Max. PV open circuit voltage 100V
Max. PV short circuit current 35A
Efficiency 98%
Constant charging voltage 14.4V / 28.8V
Maintenance charging voltage 13.8V / 27.6V
operating temperatur - 30 °C - + 60 °C
Weight 1.3kg
Dimensions 130x186x70mm
