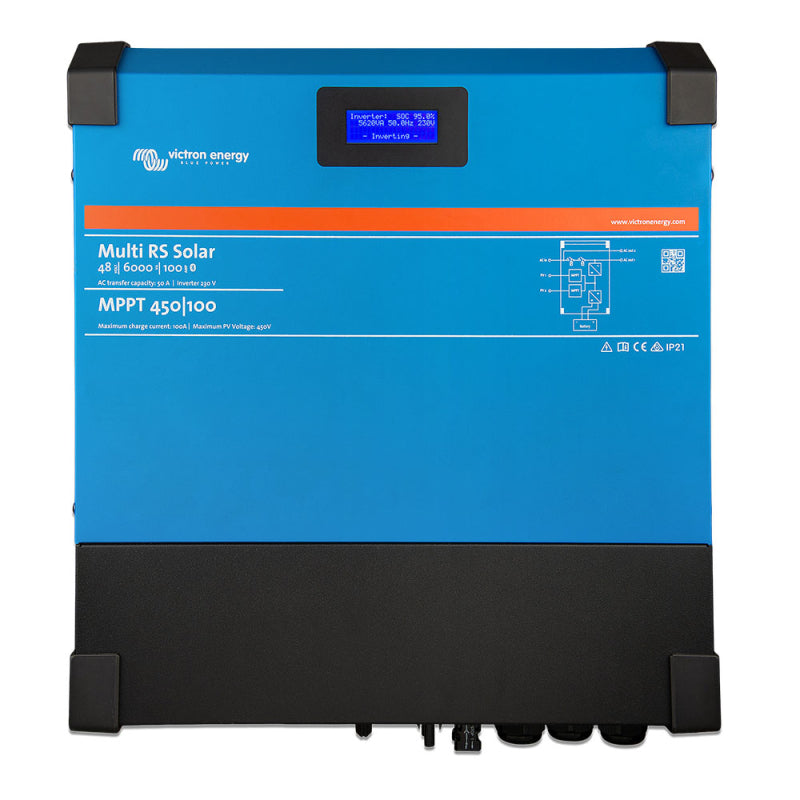

Victron Multi RS Solar 48/6000/100-450/100

Victron Multi RS Solar 48/6000/100-450/810 230V

Hybrid inverter/charger
The Multi RS Solar 48/6000 is a 48 V & 6 kVA inverter/charger with 450 VDC 4 kWp PV input.

Combination of inverter, AC charger and solar MPPT
The inverter generates a perfect sine wave capable of powering high-power devices. It also operates bidirectionally, meaning it charges the battery when there's excess solar or AC power, or converts it when needed.

Wide MPPT voltage range
80 - 450 VDC, with a PV turn-on voltage of 120 VDC.

Light, efficient and quiet
Thanks to high-frequency technology and a new design, this powerful inverter weighs only 11 kg. It also boasts excellent efficiency, low standby power, and very quiet operation.

Display, Bluetooth and VictronConnect app
The display reads the battery, inverter, and solar parameters. These same parameters can be accessed with a smartphone or other Bluetooth-enabled device via the VictronConnect app.

Expandable PV capacity, coupled with both AC and DC
The integrated PV capacity of 4 kWp can be expanded by adding solar chargers to the system, for example, our Smart Solar Chargers, including the Smart Solar RS models. When connected to a VE.Can grid, all battery charges are carried out simultaneously and in a coordinated manner.
Alternatively, the PV capacity can be expanded by installing PV inverters whose output power is automatically controlled by the integrated frequency shift control.

Interfaces
Ve.Can connection to a GX device for remote system monitoring, data logging, and firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O connections
Programmable relay, temperature sensor, and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.
