Victron Energy

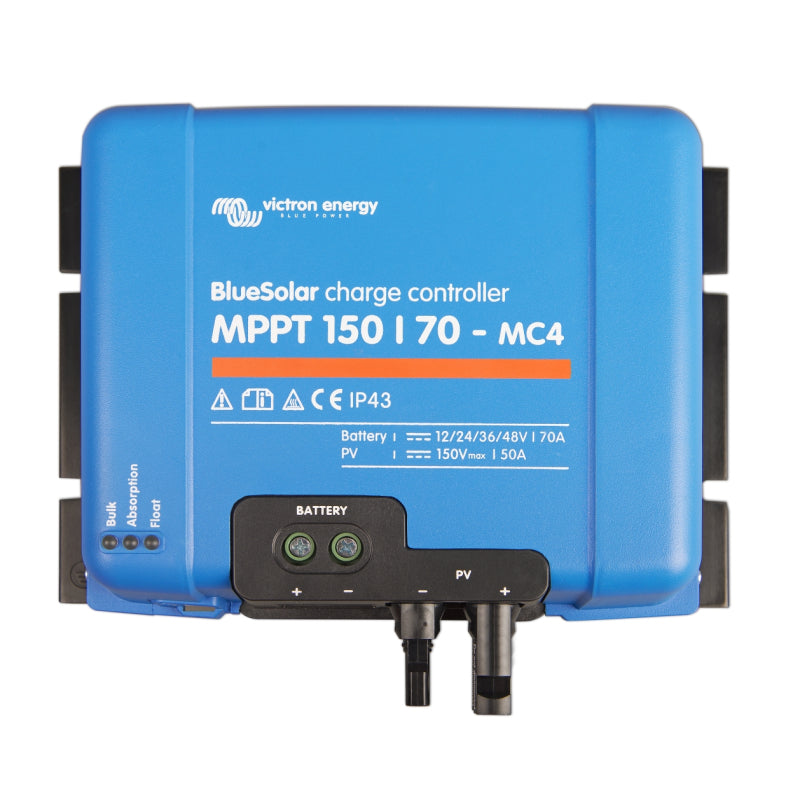

Victron BlueSolar MPPT 150/70-MC4

Name: Victron BlueSolar MPPT 150/70-MC4
Brand: Victron Energy
SKU: 300-3154
Price: 427.21 EUR
Availability: InStock

€427,21

Tax included. Shipping calculated at checkout

Quantity:

MPP Solar Charge Controller MPPT 150/70-MC4 by Victron.

A charge controller is the heart of every solar system, connecting the solar panel to the battery. The solar controller converts the voltage, which varies throughout the day, into a voltage adapted to the loads or optimized for ideal and gentle battery charging using powerful technology.

Ultra-fast MPPT Tracking
Especially with cloudy skies, when the light intensity changes constantly, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point detection in case of partial shading. In the case of partial shading, two or more maximum power points (MPP) can exist on the current-voltage curve. Conventional MPPTs tend to settle for a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the BlueSolar device will always maximize energy yield by adjusting to the optimal MPP.

Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of data live. Further information and the dongle can be found here in our shop

Intelligent battery management with the BatteryLife algorithm
The BatteryLife algorithm monitors the battery's state of charge and slightly increases the load disconnect threshold daily until constant voltage is reached. From this point, the load disconnect threshold is modulated so that constant voltage is reached approximately once a week. The BatteryLife algorithm will increase the operating life of the battery compared to conventional battery algorithms that always switch between "partially charged" and "fully charged" (due to low self-discharge)

Internal temperature sensor
An internal temperature measurement unit is, of course, built-in, so that constant and float charge voltages are compensated for temperature. The full output current can thus be guaranteed up to 40°C.

Automatic battery voltage detection
The MPPT 150 / 70 automatically adapts to a 12 V, 24 V or 48 V system.

Three-stage charging: Instead of simply charging constantly up to the charging voltage, an innovative staged system is used (constant current, constant voltage, and float charge phase).

Technical data	BlueSolar MPPT 150 / 70 MC4
Battery voltage	12 V / 24 V / 48 V
Rated charging current	70 A
Rated PV - power 12 V	1000 W
Rated PV - power 24 V	2000 W
Rated PV - power 48 V	4000 W
Max. PV - open circuit voltage	150 V
Max. PV - short-circuit current	50 A
Efficiency	98 %
Constant - charging voltage	14.4 V / 28.8 V / 43.2 V / 57.6 V
Float - charging voltage	13.8 V / 27.6 V / 41.4 V / 55.2 V
Operating temperature	- 30 °C - + 60 °C
Weight	3 kg
Dimensions	215 x 250 x 95 mm

Information on VAT for solar products

Production Sustainability No information
