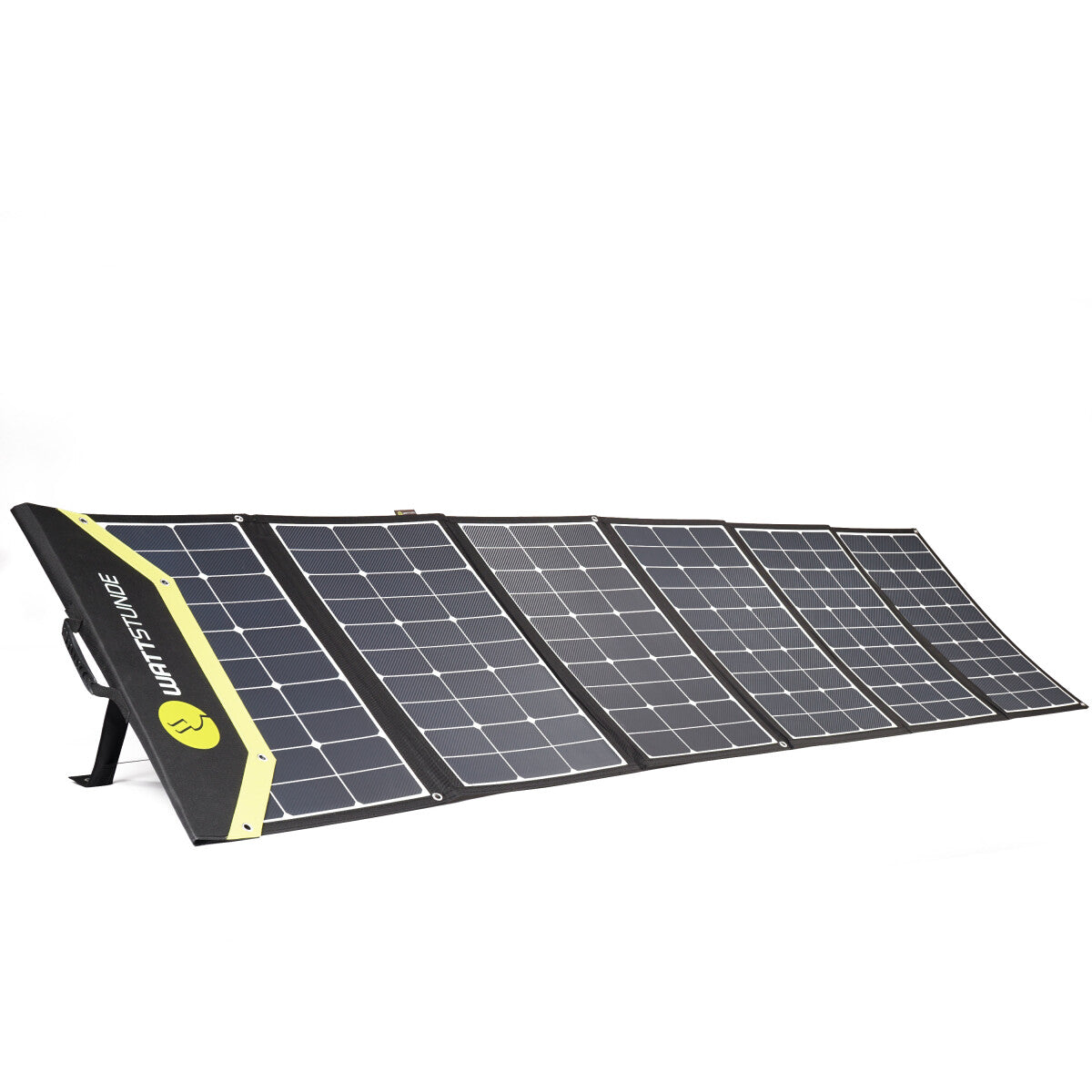

WATTSTUNDE® WS340SF SunFolder+ 340Wp solar bag
WATTSTUNDE® WS340SF+ SunFolder solar module 340 Wp
Generate solar energy simply and innovatively - with the new WATTSTUNDE® SunFolder solar bag it's really quick. Open the bag, plug it in and generate energy.
Lightweight, innovative and flexible
Thanks to its innovative design, the WATTSTUNDE® SunFolder solar bag is very light, absolutely space-saving and therefore offers a high degree of flexibility and usability. The solar bag scores points for its ability to be freely aligned at any time. Whether behind the windshield when parked or simply outside, you can place the solar bag wherever the sun is shining. In addition, you are guaranteed to gain a high energy yield from the SunPower Back-Contact solar cells.
Robust & flexible:
The robust Cordura fabric makes the SunFolder a perfect companion for outdoor use - nevertheless, as with any technical device, care should be taken to ensure that no moisture or water can get into sensitive areas. We do not recommend leaving the SunFolder outside overnight. (This is an electrical device that uses solar energy - which means it cannot tolerate mist and rain.)
Plug & Play with practical plug-in system

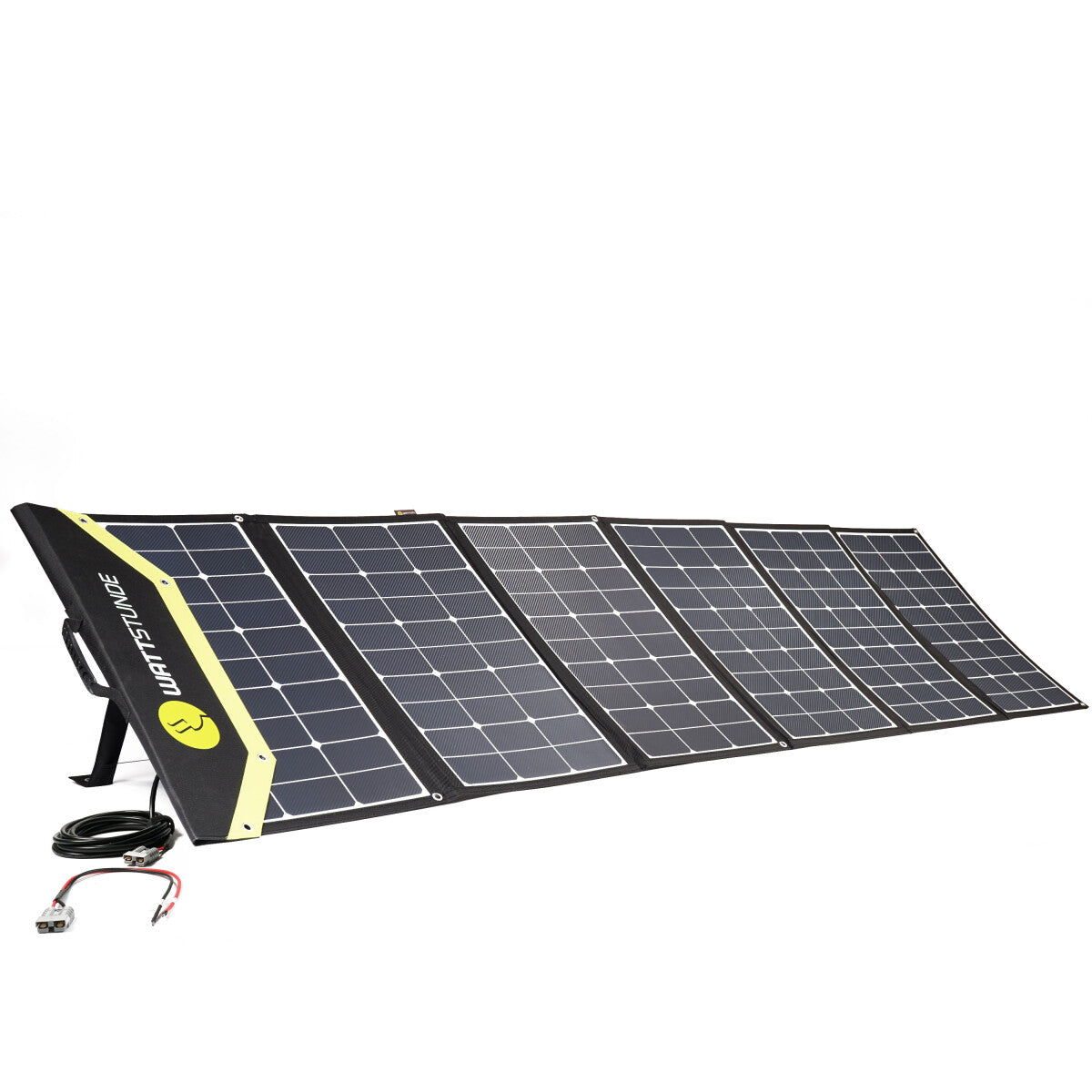

The SunFolder solar bag from WATTSTUNDE® has a 4.5m long connection cable that has an Anderson plug system at the end. Thanks to the practical plug system, the connection can be permanently attached to the charge controller and when required, the solar bag can be taken out, hung or placed in the sun, and you simply plug the two Anderson plugs together and the SunFolder is connected to the charge controller. It couldn't be quicker or more practical.
Self-sufficient with SunPower solar cells
The SunFolder solar bags of the WATTSTUNDE® series are high-quality modules with SunPower cells that deliver optimal results and ensure a high energy yield. The solar bags are suitable for all self-sufficient battery applications, such as in motor homes and mobile homes, camping and tents, marine sailing boats, campervans, box vans (including off-road vehicles such as the Land Rover Defender) and in all off-grid systems.
Technical data | WS340SF+ |
---|---|
Nominal power (Pmpp) | 340 Wp |
Max. daily yield (summer) | 2040 Wh/d |
Voltage (Umpp) | 33.0V |
Electricity (Impp) | 10.30A |
Open circuit voltage (Uoc) | 38.8V |
Short circuit current (Isc) | 10.92A |
Bypass diode | integrated |
Cell efficiency | >24% |

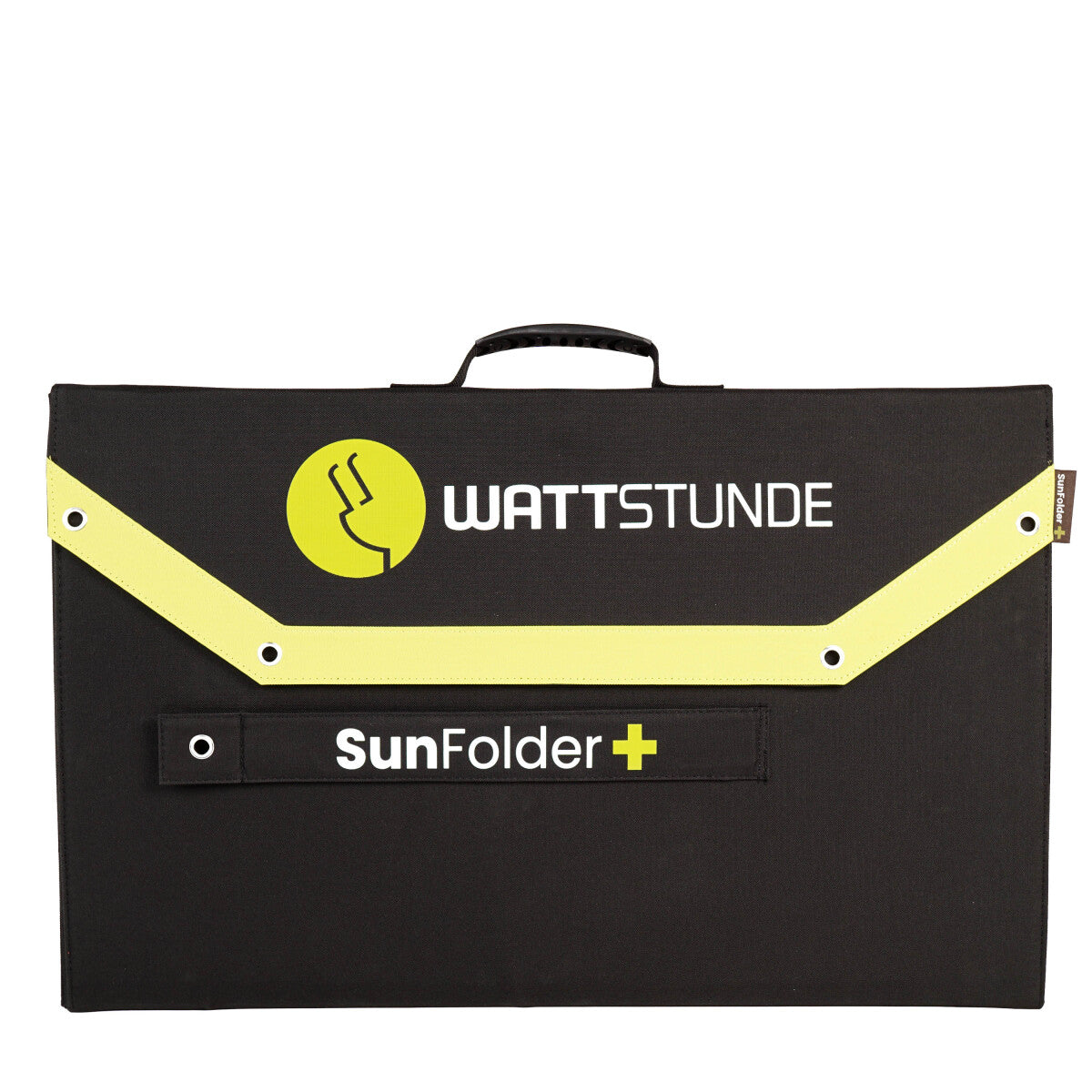

Dimensions (closed) | 690x440x30mm |

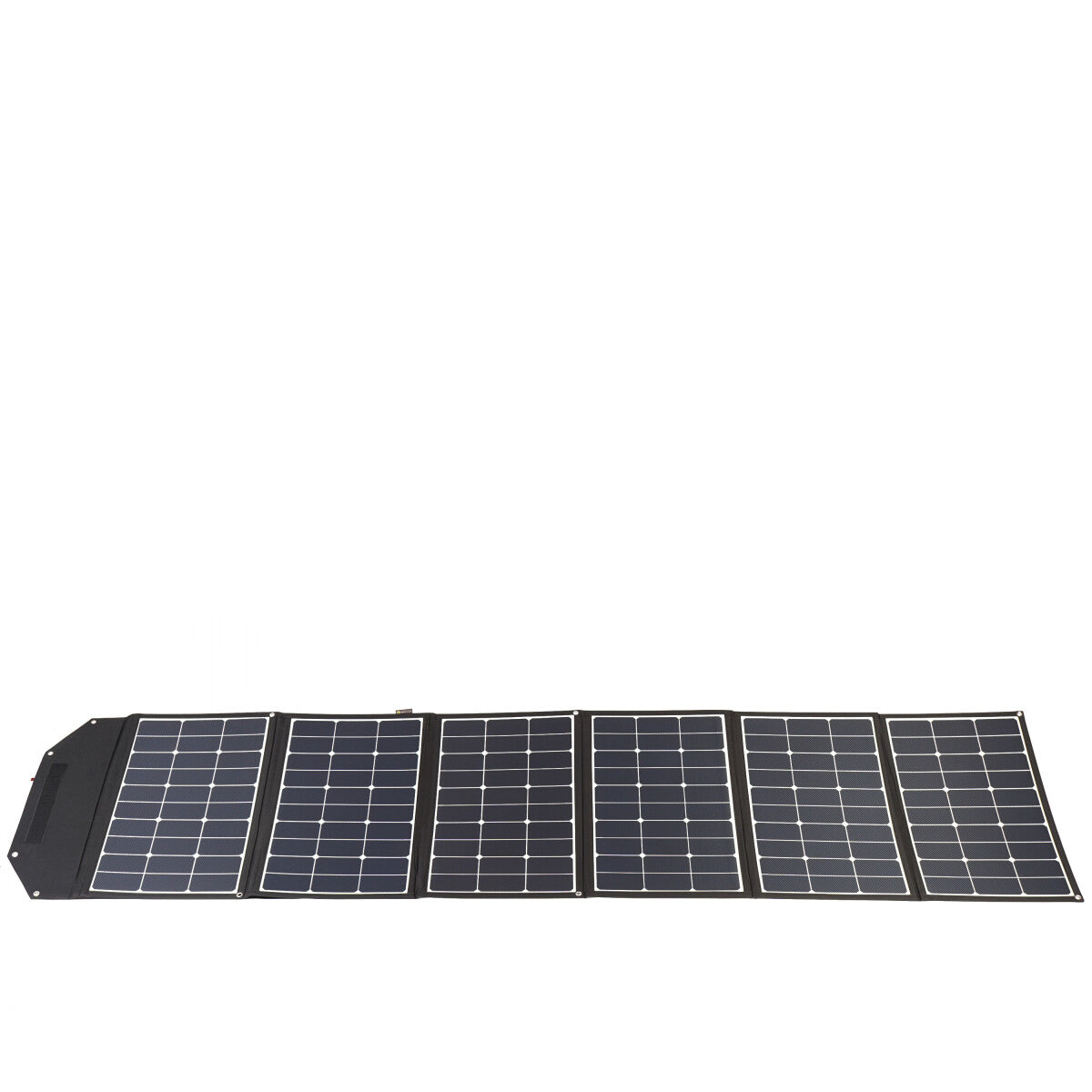

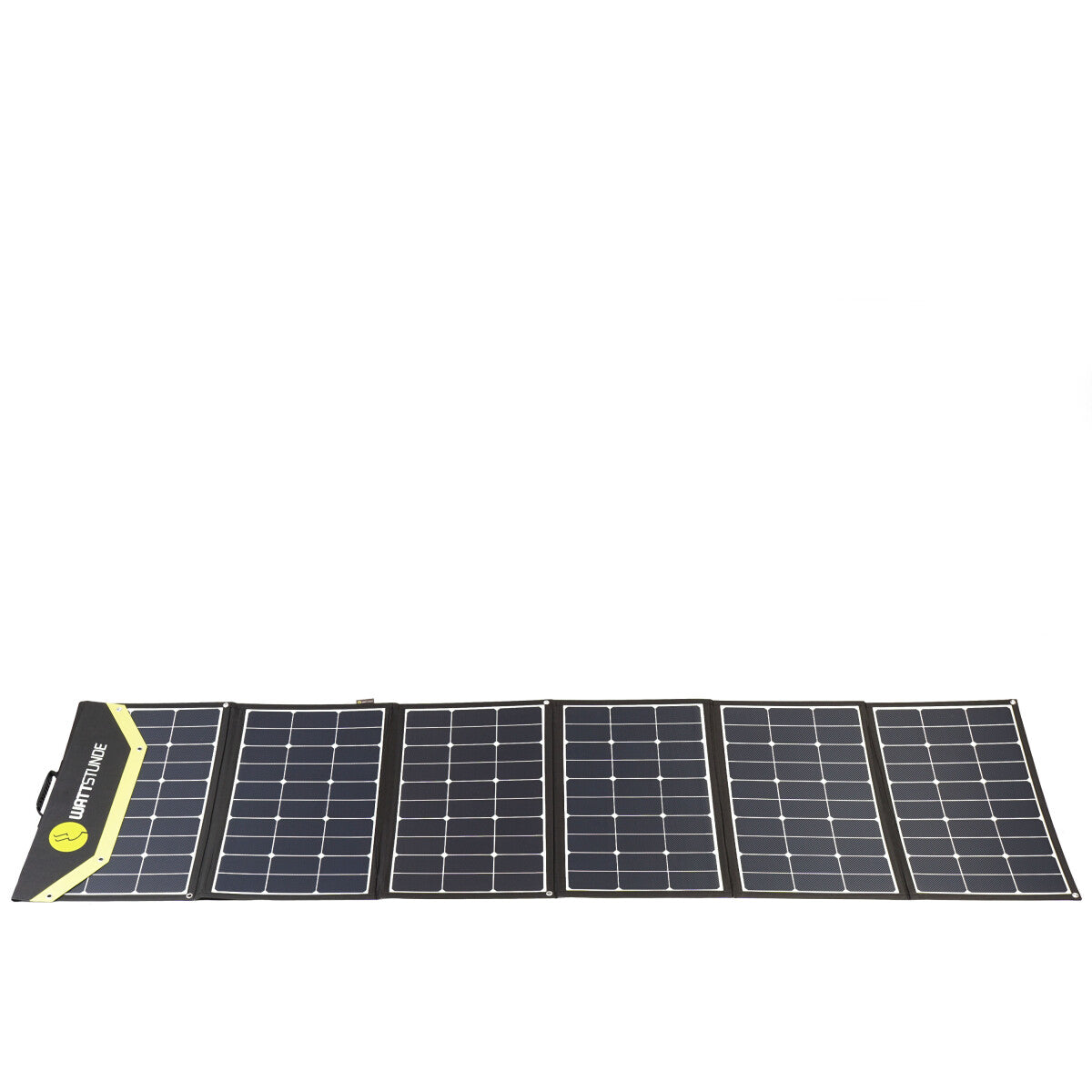

Dimensions (open) | 690x2700x7.5mm |
Connection cable | 4.5 metres |
Weight | 9.42kg |
