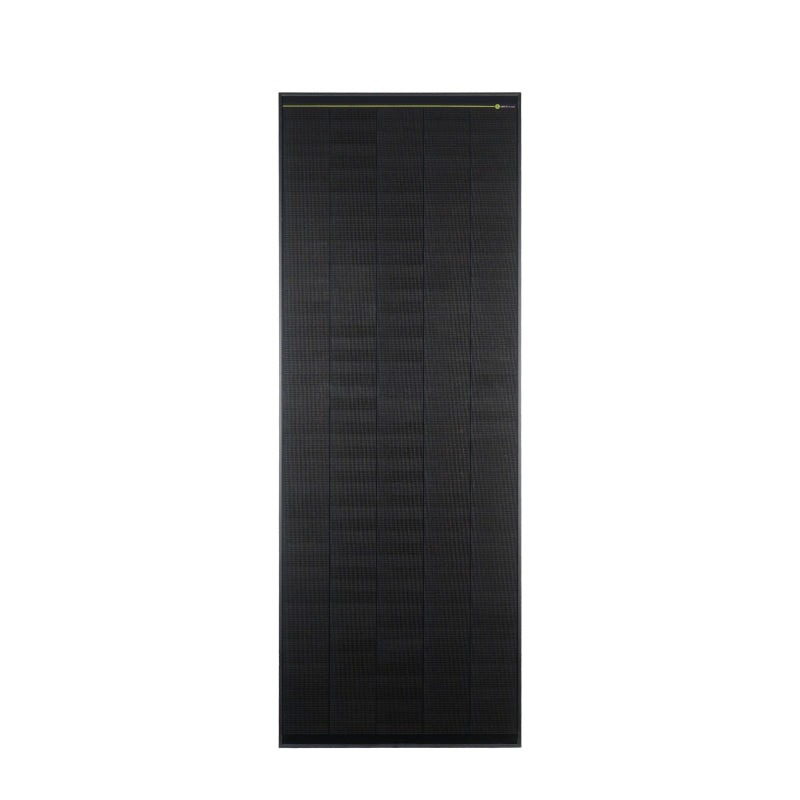

WATTSTUNDE® SOLA Frame Black 175 Wp – Marine Infinite Shop (1/4)

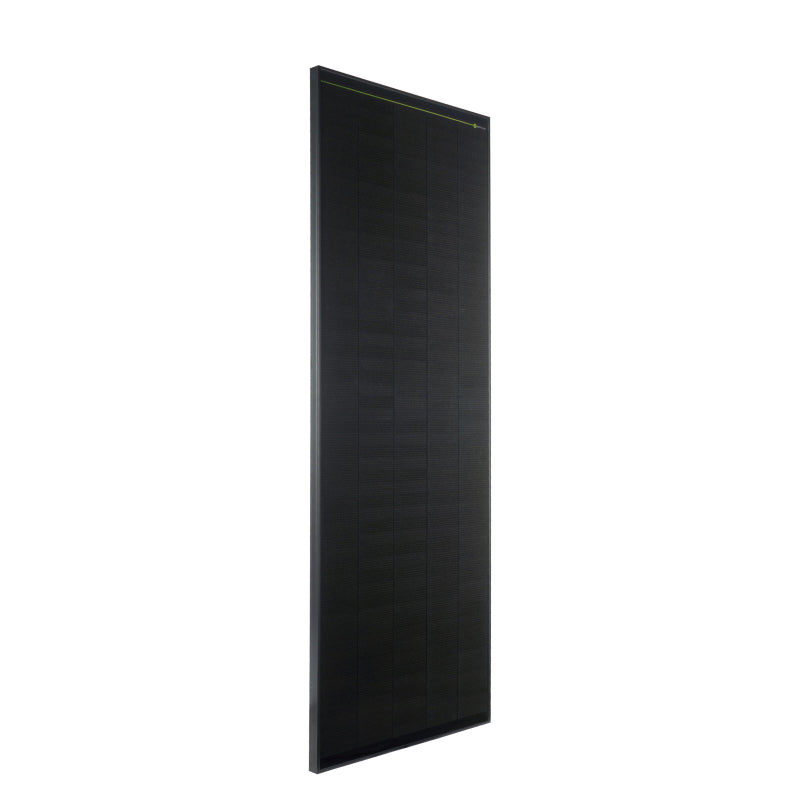

WATTSTUNDE® SOLA Frame Black 175 Wp – Marine Infinite Shop (2/4)

WATTSTUNDE

WATTSTUNDE® SOLA Frame Black 175 Wp

Name: WATTSTUNDE® SOLA Frame Black 175 Wp
Brand: WATTSTUNDE
SKU: 101-22175
Price: 229.00 EUR
Availability: OutOfStock

€229,00

Sold out

Tax included. Shipping calculated at checkout

WATTSTUNDE® SOLA Frame Black 175 Wp - Innovative Solar Module with Shingled Cell Technology

WATTSTUNDE® solar modules from the BLACK series are ideal for those who value the highest quality and the latest technology. This module utilizes novel shingled cell technology. The unique parallel structure of narrow cell strips ensures unhindered energy flow and prevents hot spot effects. The modules impress with their robust construction featuring a hollow chamber profile frame, now equipped with an optimized, reduced frame height. This not only enables a noticeable weight reduction but also improves aerodynamics – an advantage particularly for mobile applications. Thanks to the durable ESG anti-reflective glass, the modules are also particularly robust.

Advantages at a glance:

High Efficiency: With an impressive cell efficiency of over 22% and PERC technology, these modules deliver more than 10% higher energy yield compared to standard solar modules.
Reduced Frame Height: The optimized frame height ensures less weight and better aerodynamics – ideal for mobile applications such as motorhomes or off-grid systems.
Durability and Protection: ESG anti-reflective glass, an IP67-certified junction box, and integrated bypass diodes offer optimal protection against environmental influences and mechanical stress.
Easy Installation: The modules are pre-wired with 90 cm solar cable and MC4-compatible connectors, making the assembly and interconnection of multiple modules effortless.
Reliable Performance Guarantee: A 25-year performance guarantee for 80% of the nominal power and a 10-year product warranty underline the high quality.

Unique Construction Features:

Shingled cell technology eliminates the need for conventional cell connectors, reducing mechanical stress and increasing longevity. This technology also ensures that internal losses are minimal and module performance is maximized through optimized arrangement. Even under difficult lighting conditions or partial shading, the integrated bypass diodes guarantee reliable power production.

Technical Data	SOLA Frame Black 175 Wp
Rated Power	175 W
Max. Daily Yield (Summer)	790 Wh/d
Voltage (Umpp)	29.12 V
Current (Impp)	6.01 A
Open-circuit voltage (Voc)	33.28 V
Short-circuit current (Isc)	6.38 A
Cell Efficiency	≥ 22 %
Cell Material	Mono Shingled Cells
Bypass Diode	Integrated
Weight	8.80 kg
Dimensions	1546 x 555 x 30 mm

Production Sustainability No Information
