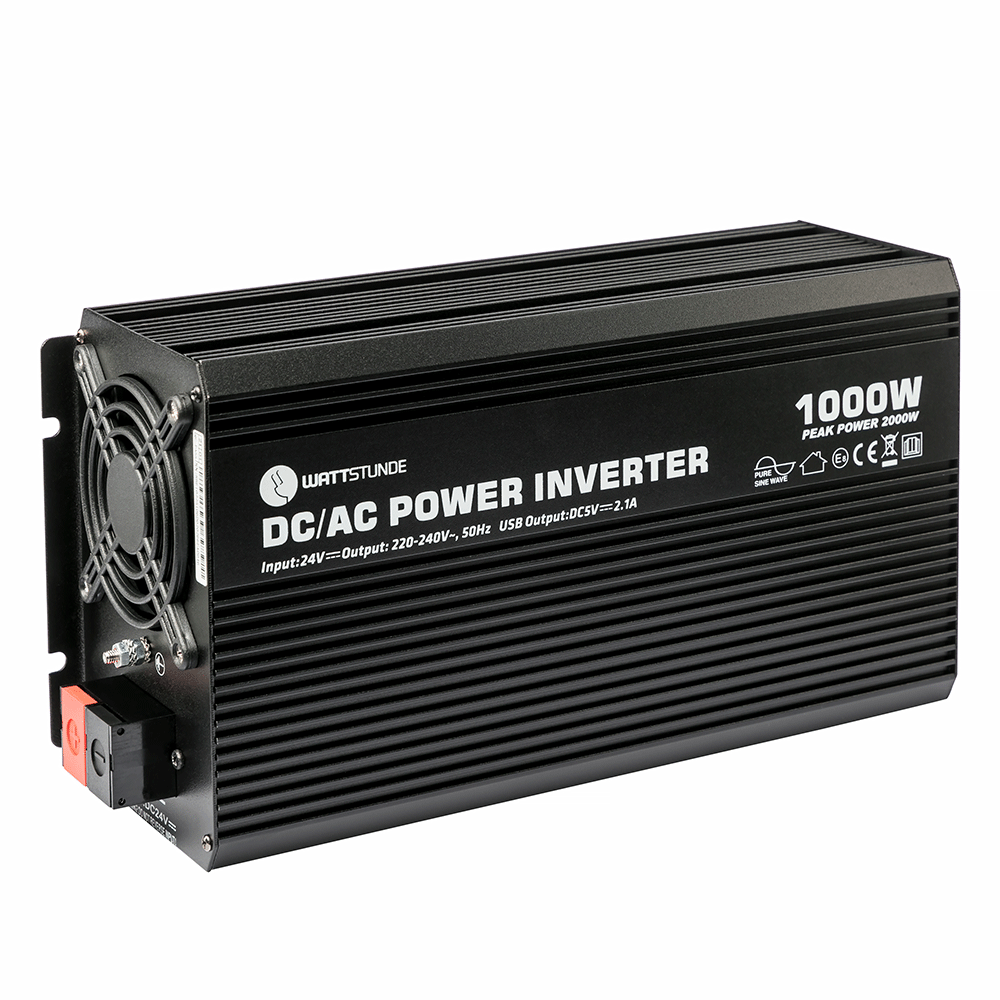

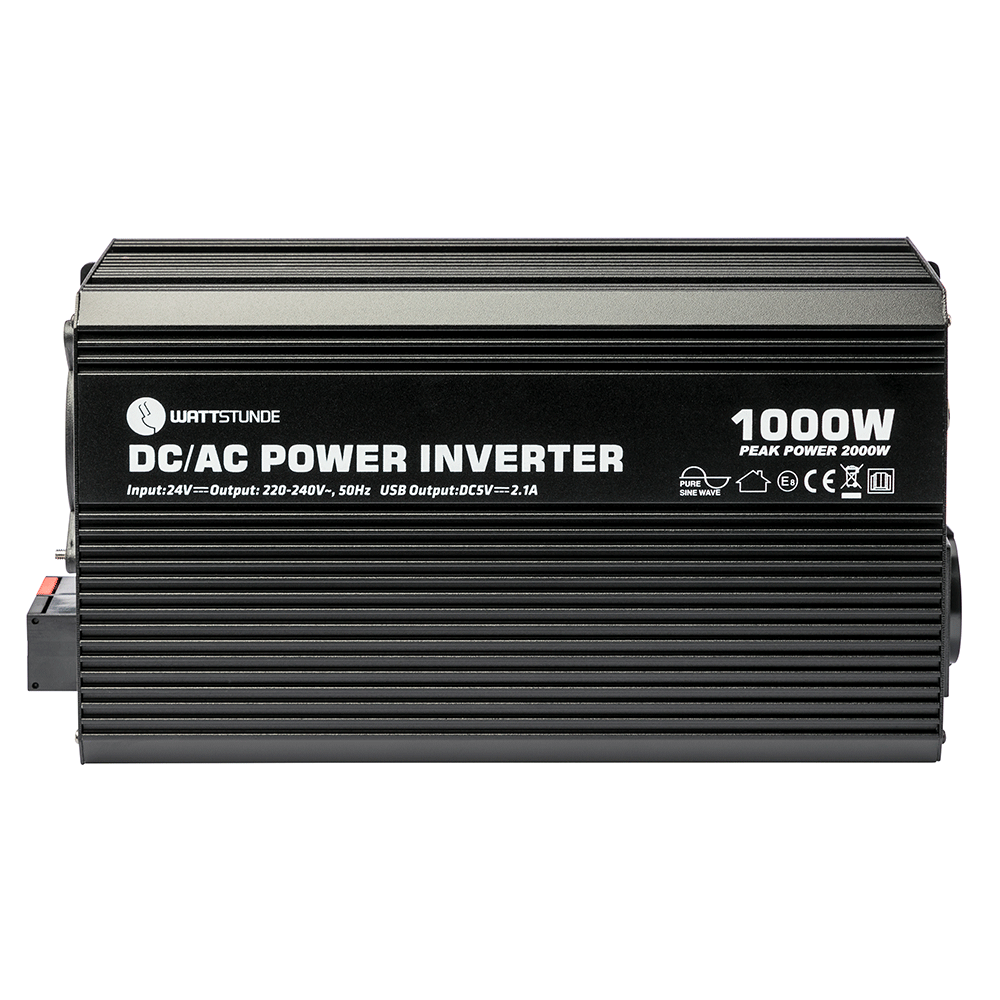

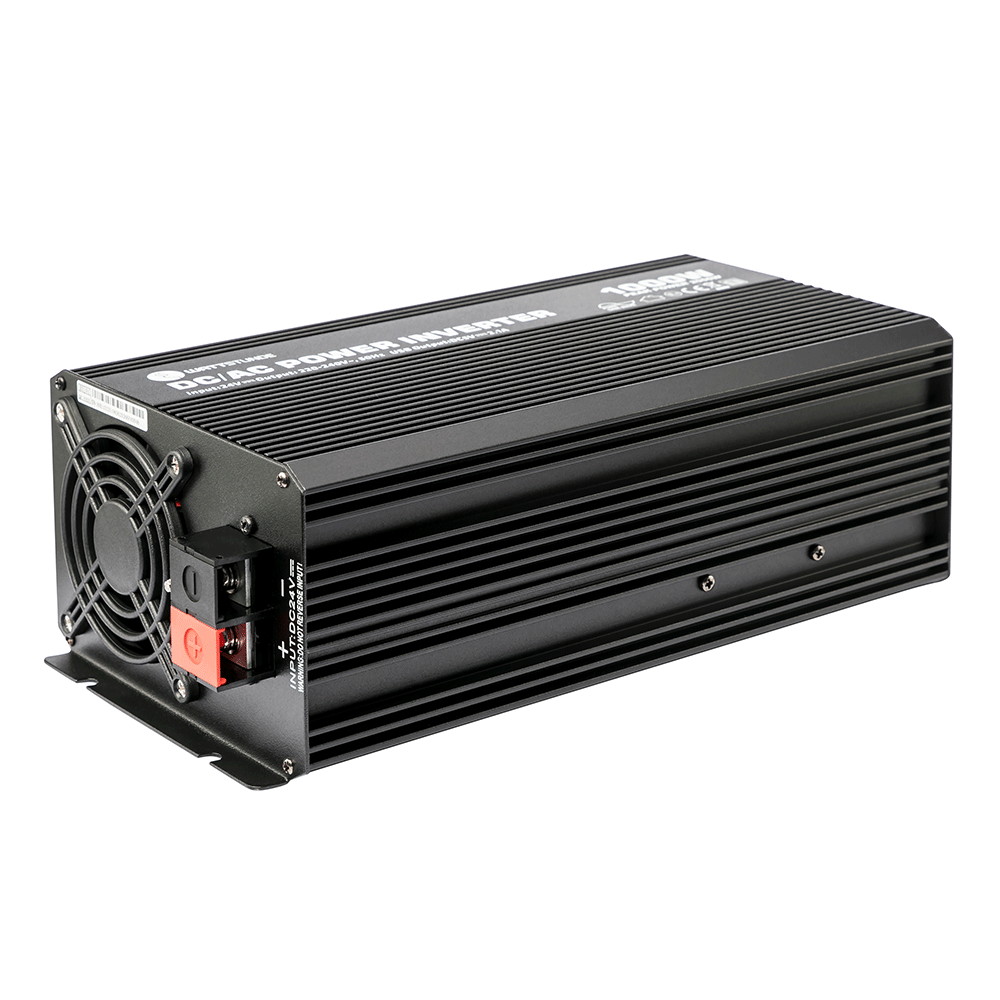

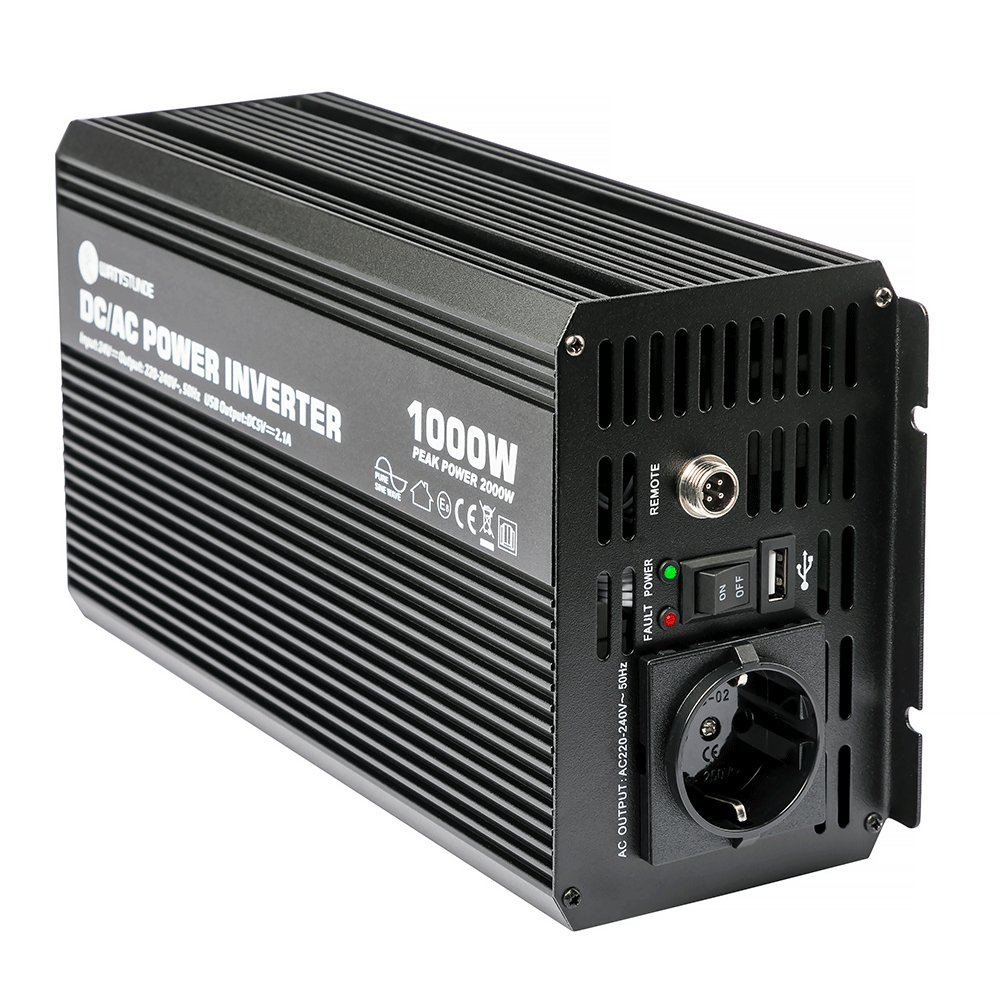

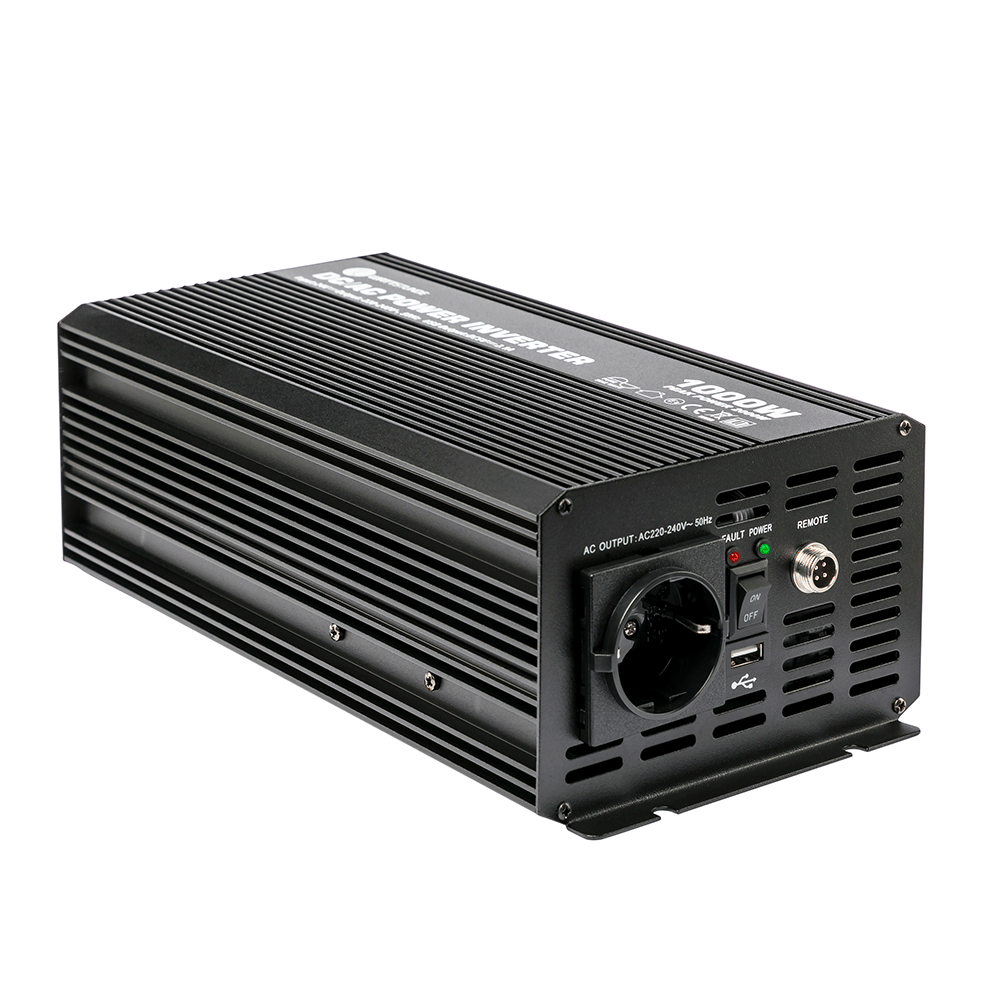

WATTSTUNDE® 1000 W / 2000 W 24 V Sine Wave Inverter WS24/1000SI

WATTSTUNDE® Sine Wave Inverter 1000 W - WS24/1000SI

Compact and reliable sine wave inverter for powering 230 V AC consumers.

Efficient conversion from 24 V (DC) to 230 V (AC)

The WS24/1000SI inverter generates a 230 V AC voltage from the DC voltage of the connected battery, which is ideal for operating 230V household appliances, chargers or other consumers.
Common devices such as computers, pumps and fans can be operated just as easily as other small consumers.

The low standby consumption makes it an economical entry-level device when a clean sine wave voltage is required.
Because the fan operates load-controlled, further precious energy is saved.
The practical USB port allows mobile phones and tablets to be charged directly without an additional power adapter.

Comfortable Allrounder

The integrated LEDs indicate the operating status, so that the device's status is visible at all times.
If the battery capacity runs low, an audible signal warns the user so that the load can be switched off in time.
If the battery voltage falls below a critical level, the inverter switches itself off automatically to prevent deep discharge of the battery.

The integrated fan runs quietly and cools the microelectronics, so that even large loads can be operated safely.
All cables required for connection are included with the device, so that installation can begin immediately.

The device is characterized by:

• Pure sine wave
• Converts 24V to 230V

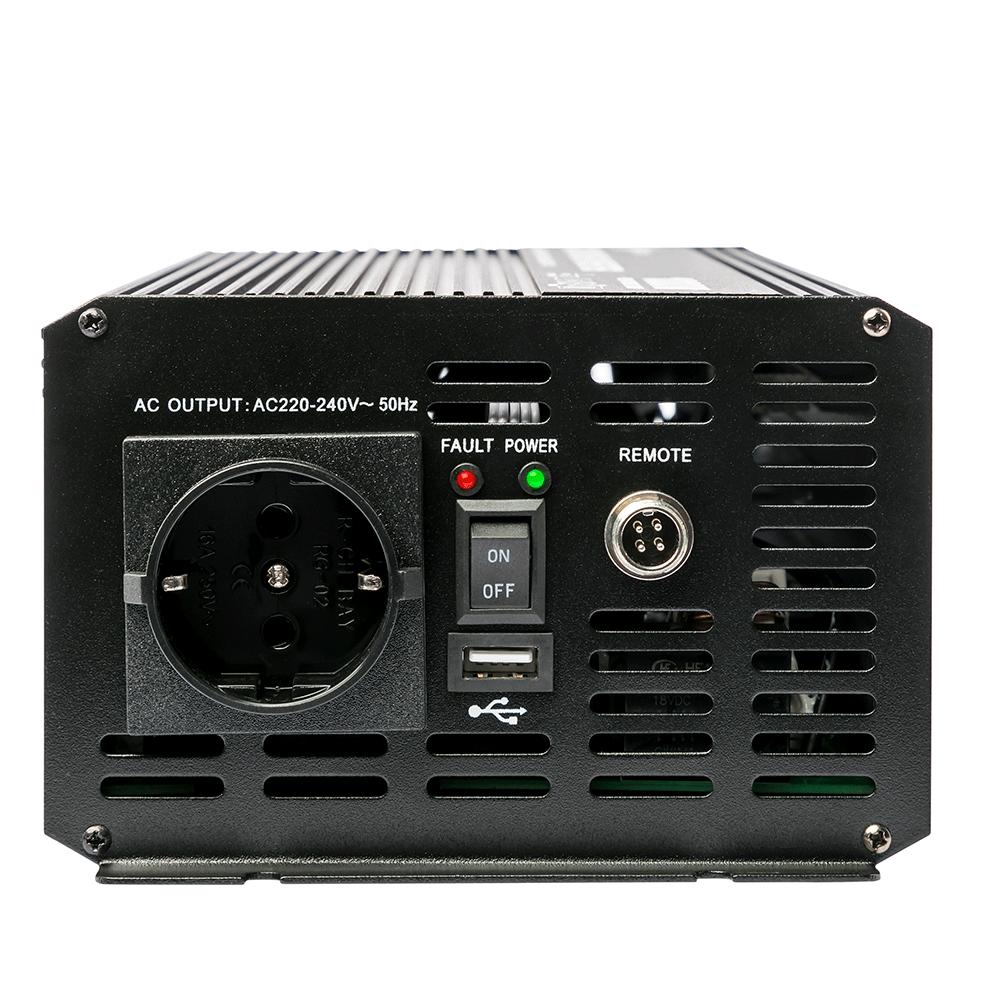

• 1 x Schuko socket on the device
• 1 x USB socket on the device
• Manual on/off switch
• Overheat protection functions
• Automatic shutdown when battery capacity is too low (deep discharge protection)
• Intelligent SoftStart function also enables the operation of inductive loads
• Load-controlled fans
• Power like at home (AC voltage and Schuko socket)
• Warranty: 2 years

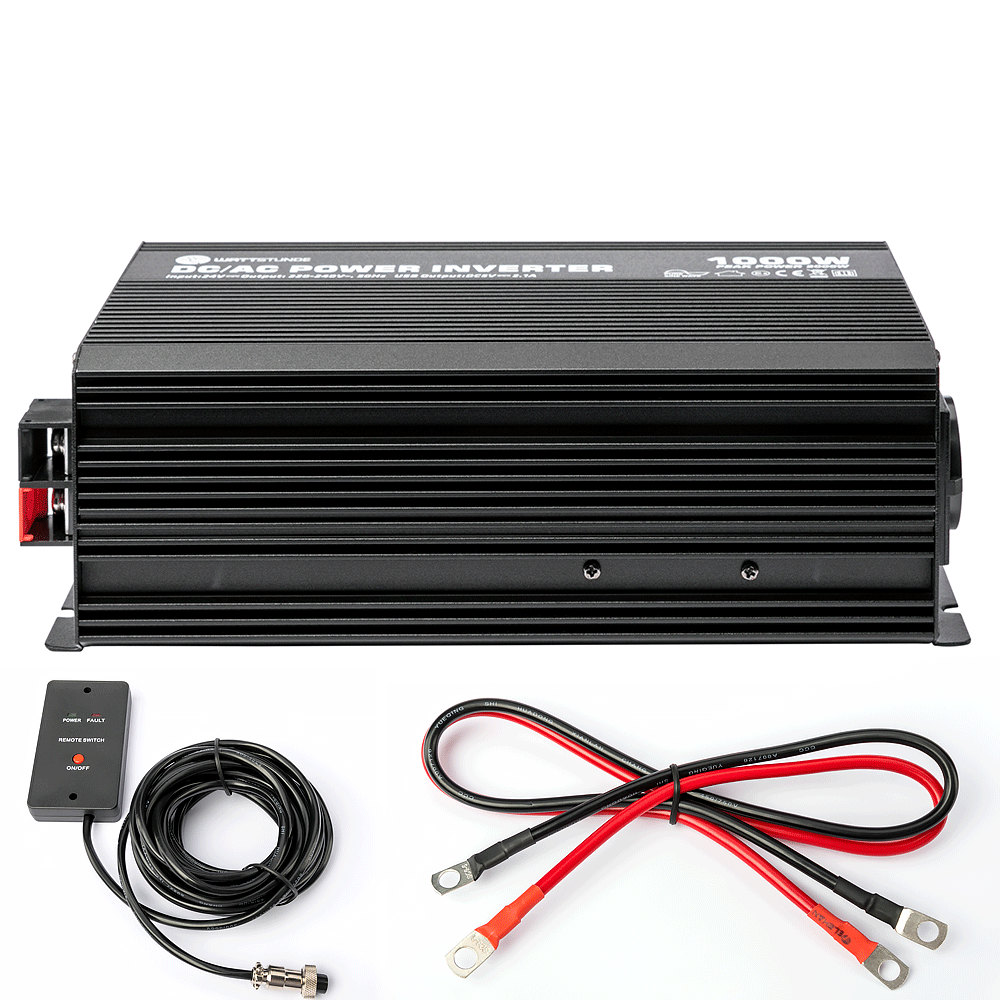

Scope of delivery

• 1x WATTSTUNDE® Sine Wave Inverter 1000 W WS24/1000SI
• 1x Battery connection cable 6 mm² 53 cm (with M8 ring terminals)
• 4x flat fuse
• User manual (German / English)

Note:

Observe starting currents!
When connecting inductive devices (hotplate, drill, refrigerator, etc.), note that these often require a 3-10 times higher power for a short time to start up than indicated on the type plate.
The maximum short-term power demand must not exceed the maximum power of the inverter!
