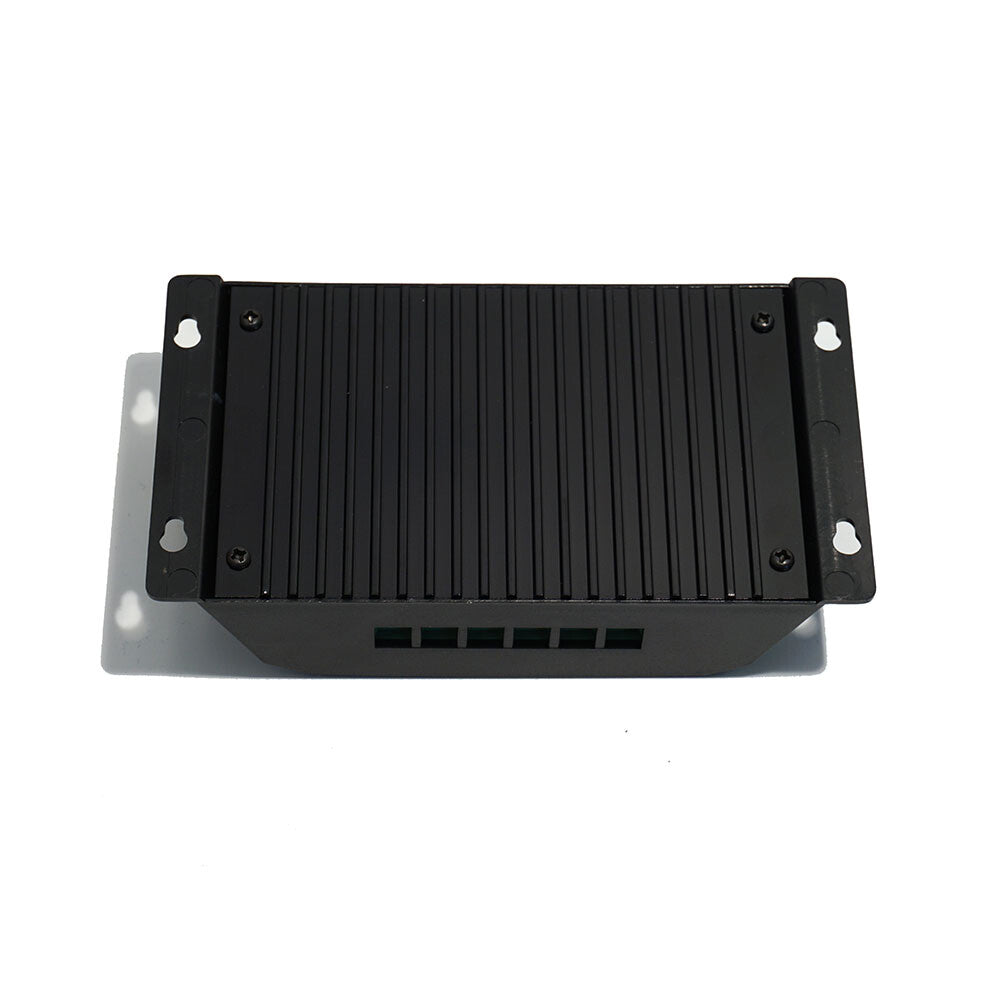

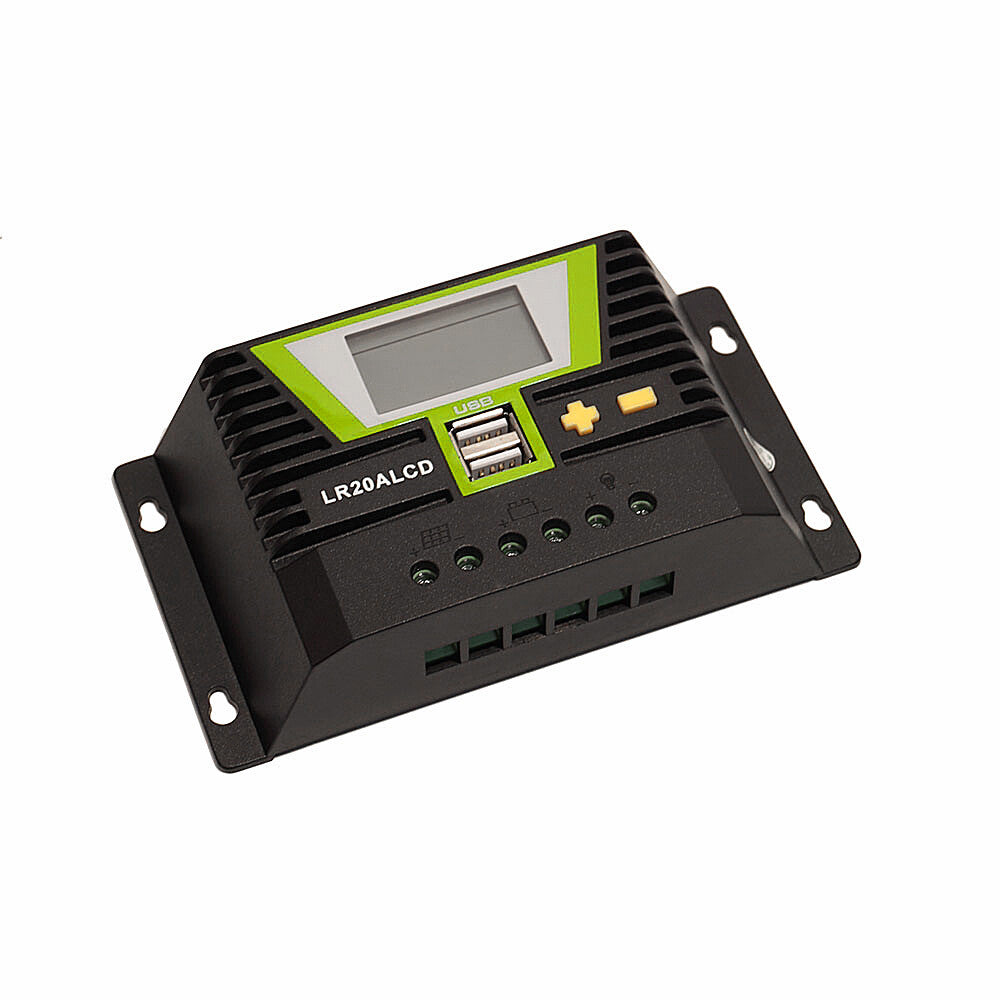

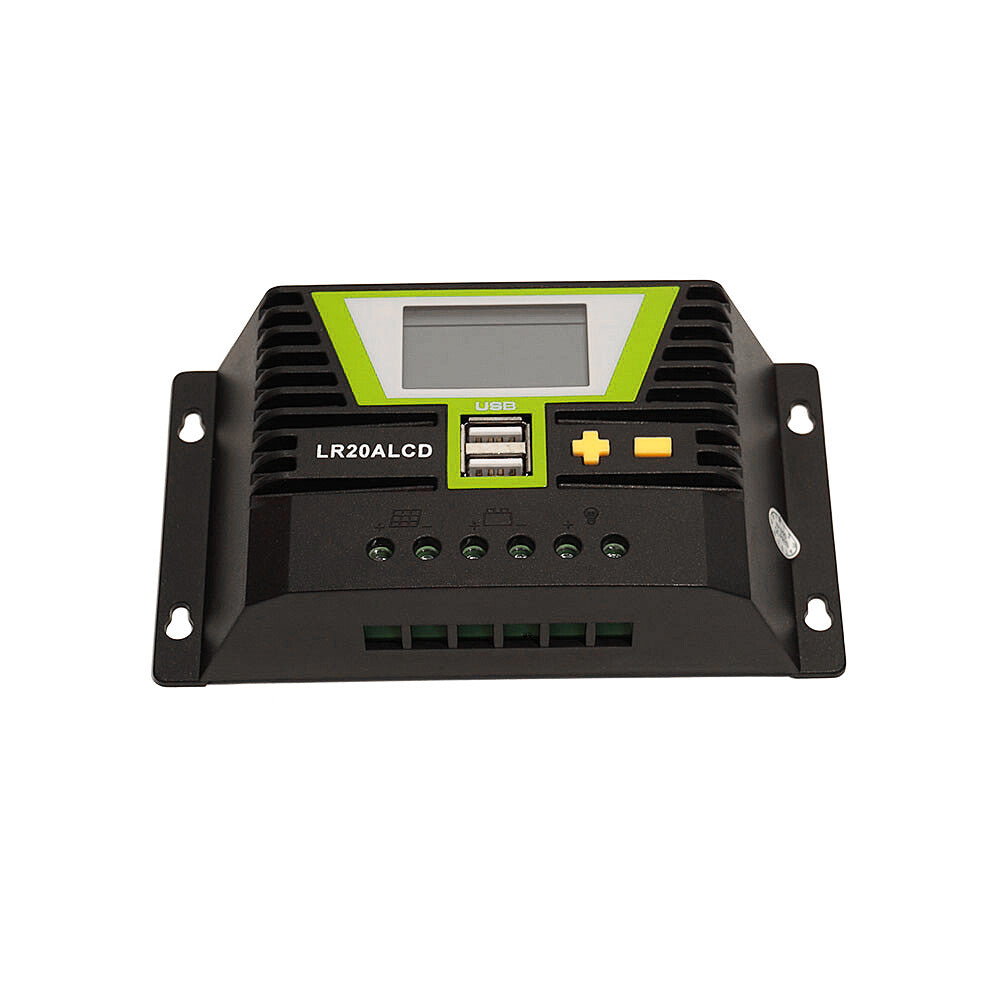

WATTSTUNDE® PWM Solar Charge Controller 20 A with LCD Display and USB Ports for 12 V / 24 V Systems

LR20ALCD Solar Charge Controller 20 A with LCD Display and Numerous Programmable Functions

The LR20ALCD is an intelligent solar charge controller featuring an LCD status display. The 20A solar charge controller reliably and gently charges the battery and protects it from dangerous deep discharge by automatically disconnecting its consumers using intelligent load shedding when the battery reaches a critical charge state. The 20A charge controller has also been designed to be very user-friendly, making all individually adjustable parameters very easy to set.

• Backlit LCD graphic display
• 2 x USB front ports
• Automatic voltage detection 12 or 24V
• Battery type AGM, GEL, lead-acid (adjustable)
• Charge termination voltage (adjustable)
• PWM control
• Temperature compensation
• LCD - status display
• Overcharge protection
• Automatic shutdown in case of battery overvoltage (adjustable)
• Deep discharge protection LVD (adjustable)
• Load output 20A (adjustable)
• 12 V / 24 V systems
• Protection against overtemperature or overload
• Various operating modes adjustable
• Control functions
• Operating manual in German
• Warranty period: 2 years

---

Technical Data	LR20ALCD
Max. Short-circuit current PC	20 A
Max. open-circuit voltage PV	100 V DC (25 °C)
Max. solar power	260 Wp (12V) / 520 W (24 V)
Battery type	AGM, Gel, Lead-Acid, Lithium
Battery nominal voltage	12/24 V
Charging technology	3-stage (Bulk, Absorption, Float), PWM
Float voltage	13.8 V (12V – 15V) / 27.6 V (24V – 30V)
Absorption voltage	14.4 V (12V – 15V) / 28.8 V (24V – 30V)
Protection class	IP32
Display/Operation	LCD display with backlight
Weight	200 g
Dimensions	147 x 82 x 39 mm
