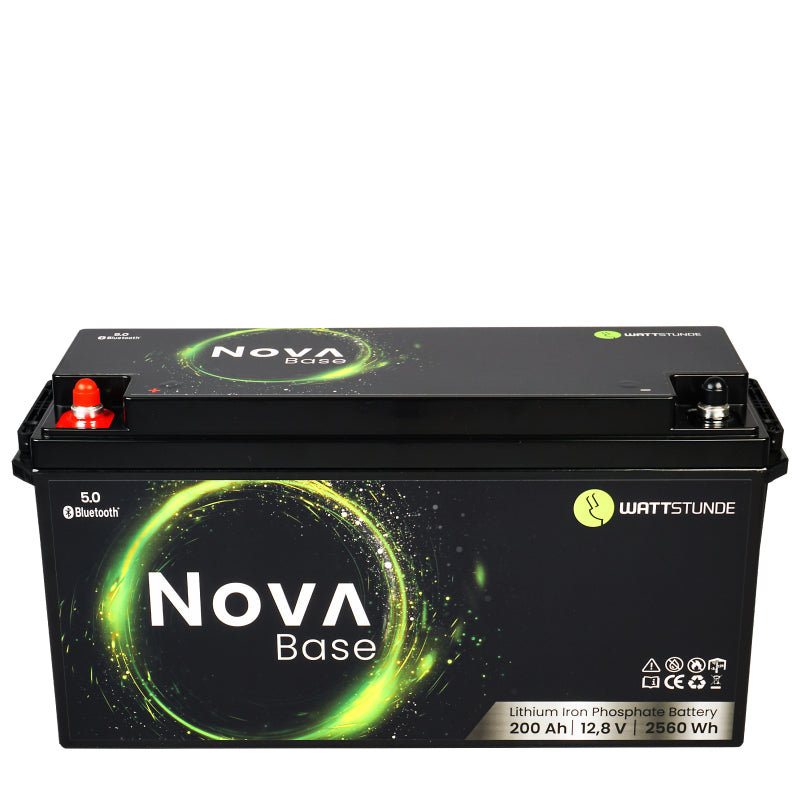

WATTSTUNDE® NOVA Base 200Ah battery LiFePO4
Discover the WATTSTUNDE® NOVA Base 200Ah LiFePO4 battery
Your reliable partner for energy-intensive applications
This powerful basic model is a first-class choice for both newcomers and experienced users looking for environmentally friendly and efficient LiFePO4 technology at an attractive price.
Optimal protection and easy handling
Thanks to the integrated battery management system (BMS), you enjoy optimal protection against overcharging, deep discharge, and overheating. This makes your NOVA Base 200Ah battery not only safe but also long-lasting.
Monitoring made easy with the NOVA APP
With the NOVA app, you have your energy supply firmly under control. Monitor your battery status conveniently from your smartphone and benefit from detailed information on voltage, current, temperature, and much more.
Outstanding performance with low weight
Experience high energy density combined with impressive storage capacity and a high, consistent discharge current. The NOVA Base 200Ah proves that efficient energy storage doesn't have to be difficult.
Expand your system as needed
The NOVA Base 200Ah offers you maximum flexibility. Whether connected in series or parallel, expand your energy system according to your needs and requirements; up to four batteries can be easily combined.
| Technical data | NOVA Base 200 Ah |
| Nominal voltage | 12.8 V |
| Nominal capacity | 200 Ah / 2560 Wh |
| Constant discharge current | 250 A |
| Temperature range (discharge) | -30 °C to +60 °C |
| Temperature range (charge) | 0 °C to + 45 °C |
| Temperature range (storage) | -5 °C to +35 °C |
| Interconnection | Parallel / Series (Max. 4 batteries) |
| Cycle life | ≥ 4000 at 80% DoD |
| Weight | 21.7 kg (± 0.1 kg) |
| Mass | 485 x 170 x 240 mm (± 2 mm) |
