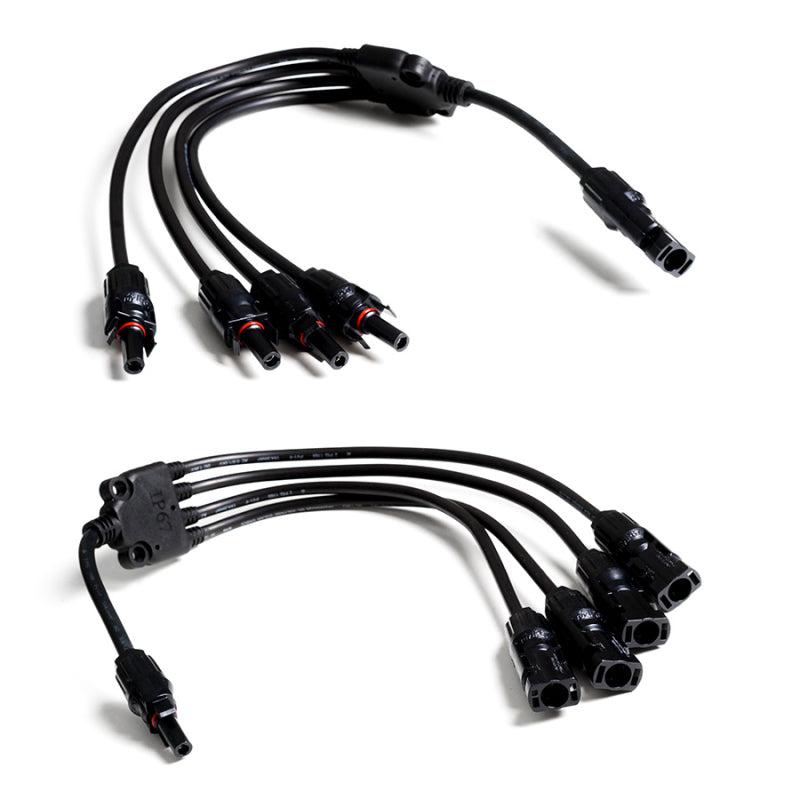

WATTSTUNDE® MC4.4 Adapter Set

MC4 compatible T-connector set - for parallel connection of 4 solar modules

Simply connect several modules together using the Multi Contact Principle (MC)

With the MC4 connector system, module connections are child's play.

The MC4 connectors (+ and -) are ideal for connecting 4 modules in parallel. The simple click and plug system (snap-in) makes handling the multicontact connectors really easy and no more fiddling with cables is necessary. Save yourself unnecessary cable clutter with the connectors and connect your modules in parallel straight away. The connectors save you any unnecessary cable lengths to the connections. The connectors have one of the highest protection classes IP67 and are extremely robust, weatherproof and durable.

The plugs are suitable for cable cross-sections of 4 - 6mm² and are always supplied as a set.

• MC4 T connector set
• Rated current max. 40A
• System voltage max. 1800V
• Protection class plugged IP67
• Protection class II
• "Snap-In" locking system
• Temperature resistant -40°C to +90°C
• Conductor cross section 4 - 6mm²
• Weatherproof
