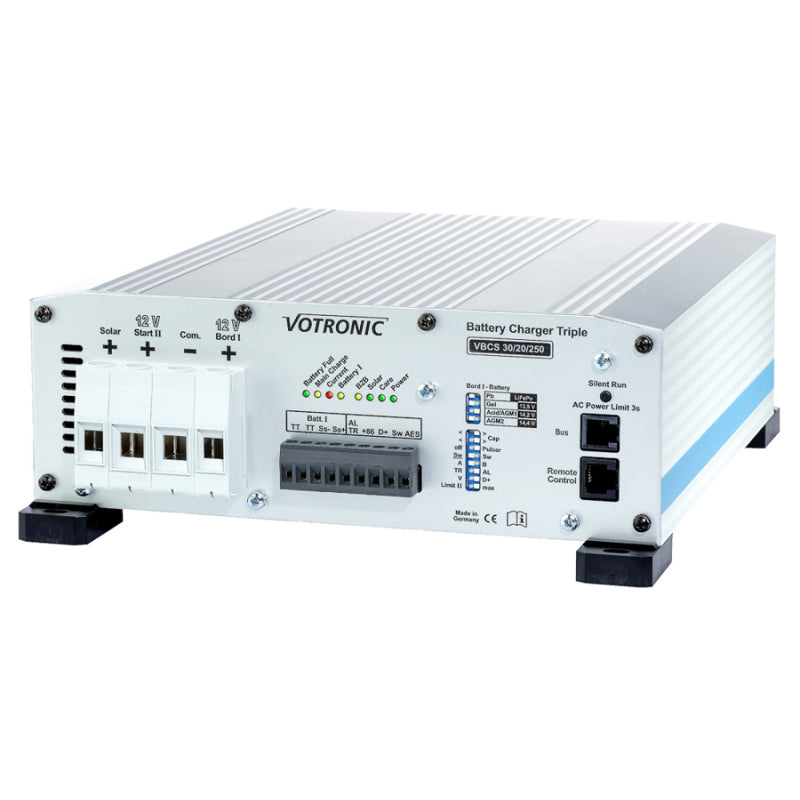

Votronic VBCS 30/20/250 CI-Triple combination device - charger/regulator/converter/device - 3242

Name: Votronic VBCS 30/20/250 CI-Triple combination device - charger/regulator/converter/device - 3242
Brand: VOTRONIC
SKU: 302-1143
Price: 758.60 EUR
Availability: InStock

€758,60

Tax included. Shipping calculated at checkout

Quantity:

Device combination consisting of mains charger 20A, charge booster 30A and MPP solar controller 250 Wp incl. Battery Trainer

With the Battery Charger VBCS Triple, a completely new device combination has been created, consisting of a Pb mains charger, VCC charge booster, and MPP solar controller, ensuring power supply in the motorhome. The batteries are always charged automatically, whether driving or at the pitch. Especially the generously dimensioned charging capacity of the integrated charge booster, with 30, 45 or 60 A, ensures that the leisure battery is charged with full current even during short journeys and is fully charged upon arrival.

The VBCS Triple series corresponds to the VOTRONIC individual devices in terms of quality, features, and functions, and is characterized by its particularly compact and lightweight design. The devices contribute significantly to cost reduction and help save valuable space in the motorhome. Procurement, installation, and connection wiring are reduced to a minimum, thus saving additional valuable resources.

Designed for common battery sizes, three different device combinations are available. All devices are future-proofed with 8 charging characteristics for lead-acid, gel, and AGM batteries, as well as for lithium-LiFePO4 batteries. The integrated Battery Trainer keeps the leisure batteries fit during long periods of inactivity.

An LCD display and control panel specifically designed for this charging unit shows all important device information. In addition, the charger can be adapted to the pitch's power supply.

Product features:

Constant, fully automatic battery charging
Integrated CI-BUS interface
High operational reliability
Fast, battery-friendly charging
Integrated battery care
Full charging power worldwide
8 charging characteristics for acid, gel, AGM, and LiFePO4 batteries
Temperature sensor 825 included in delivery
Robust technology and compact design
Easy installation
short cable runs

Recommended accessory: LCD-Charge Control S . This practical display panel can show a variety of information.
For example, active charging sources can be read, an AC Power Limit can be set, or the voltages and currents in the system can be displayed.

Technical Information VBCS 30/20/250 Triple

Mains Operation
Nominal operating voltage (AC) in [V]	110 to 230 / 45 - 65 Hz worldwide
Operating voltage range (AC) in [V]	90- 270 (full charging power)
Max. power consumption (AC) in [W]	360
Charging power leisure/starter battery max. [A]	20.0 / 4.0
Switching output for engine start inhibit	yes
Power limit function	yes
12 V / 12 V B2B Charge Booster Operation
Charging power leisure battery max. [A]	30
Automatic activation D+ / ignition	yes
Starter battery/alternator voltage range (Euro 6) in [V] / max. current [A]	10.5 - 16.0 / 42
Limit II max. current limiting (adjustable) in [A]	25
MPP Solar Charge Controller Operation
Solar module power (Pmax) in [Wp]	50 - 250
Solar module current max. [A]	15.0
Solar module voltage (Voc) max. [V]	36
Charging current leisure / starter battery max. [A]	18.0 / 4.0
Switching output AES refrigerator	yes
Starter Battery
Nominal voltage [V] / capacity min. [Ah] recommended	12 / > 60
Leisure Battery, IU1oU2oU3
Nominal voltage lead / LiFePO4 [V]	12 / 12.0 - 13.3
Battery capacity, adjustable [Ah]	45 - 280
Device mounting position	any
Temperature range [°C]	-20 to +45
Protection class/-rating	IP 21
Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges, without connections	217 x 85 x 250
Weight [g]	2,700

Production Sustainability No information available
