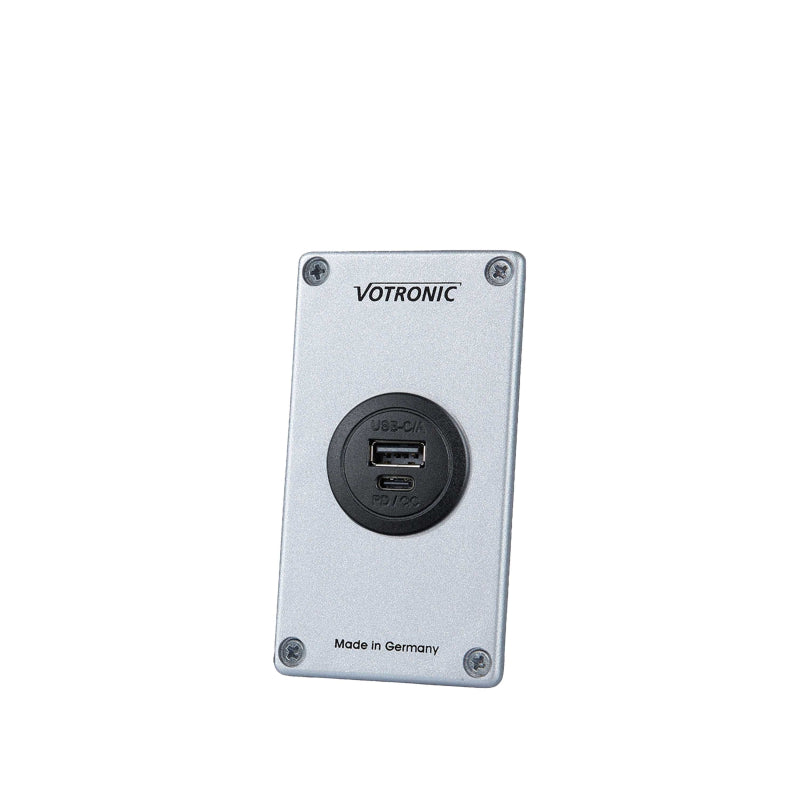

Votronic USB Charger Panel 1298 – Compact Charging Unit for 12 V and 24 V On-board Power Systems

Universal Charging Option for Mobile Applications

The Votronic USB Charger Panel 1298 is a space-saving and powerful solution for powering your USB devices directly from your on-board electrical system. It combines a USB-C and a USB-A socket in a compact panel and is ideal for installation in motorhomes, boats, or commercial vehicles with 12 V or 24 V power supplies.

Powerful and Versatile

The USB-C socket supports a maximum current of 3 A and, depending on the input voltage, allows output voltages of 5 V, 9 V, 12 V, 15 V, or even 20 V. The USB-A socket delivers up to 2.2 A at 5 V. This allows you to reliably and quickly charge smartphones, tablets, and other mobile devices – even simultaneously.

Ready for Immediate Use Without Configuration

The charging panel is ready for immediate use once connected to the on-board electrical system. No complex commissioning is required – perfect for permanent installation in easily accessible locations.

Technical Data at a Glance:

Operating voltage: 12 V / 24 V on-board electrical system
Voltage range: 8…34 V DC
USB-C: 5 V, 9 V, 12 V, 15 V, 20 V | max. 3 A
USB-A: 5 V | max. 2.2 A
Total power: max. 30 W
Self-consumption: < 5 mA
Dimensions: 85 × 47 × 44 mm
Weight: approx. 34 g
Permissible humidity: max. 95% RH (non-condensing)

The Votronic USB Charger Panel 1298 is the ideal addition to any mobile power supply, providing flexible charging options with high compatibility and minimal space requirements – reliable, robust, and ready for immediate use.
