VOTRONIC

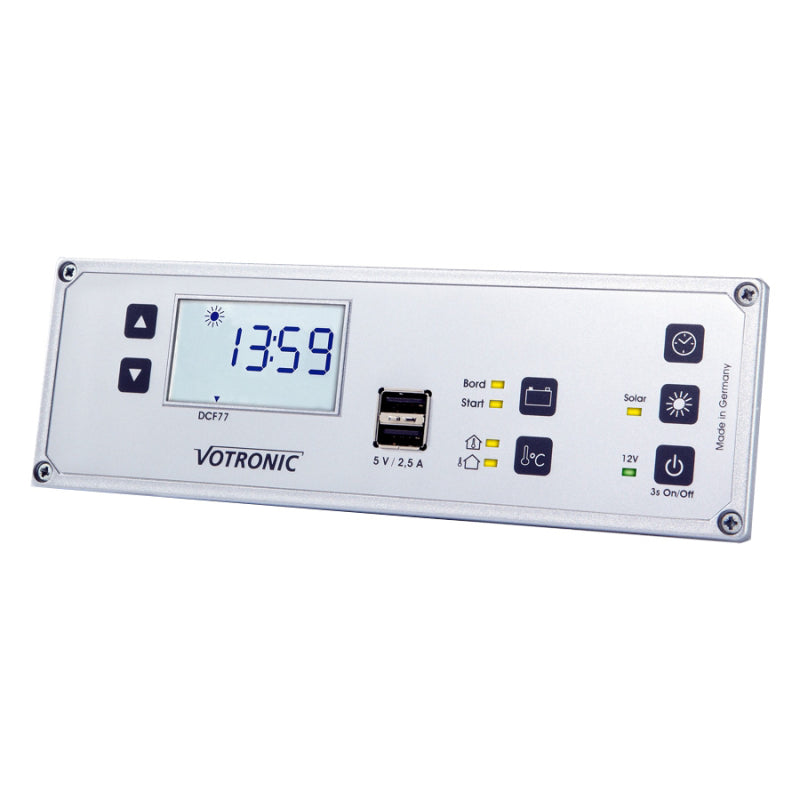

Votronic Power Control VPC Merkur 5744
Votronic LCD Control Board Merkur 5744
The VOTRONIC Power Control (VPC for short) is an innovative multi-panel system for motorhomes that combines the most important functions and information in one user-friendly device. Information is displayed on a bright, white-backlit graphic display. The large values are perfectly legible in all lighting conditions, even from a greater distance. Colored LEDs always indicate the selected function. The individual versions differ in their range of functions, which is designed to meet the specific requirements of different vehicle types. While the Jupiter version, for example, leaves virtually nothing to be desired in terms of power supply and fill levels, the Merkur version is particularly recommended for more compact vehicles, which often do not have fixed tanks.
All devices have at least a voltage display for the leisure and starter battery and a switching output for an external relay as a main switch. A switchable alarm (beeper) on the panel and an indication on the display warn when an adjustable energy threshold has been undershot and the main switch will automatically switch off in a few seconds to prevent deep discharge of the battery.
Merkur Product Features
- Voltage display for leisure and starter battery
- Voltage-controlled deep discharge protection for the leisure battery
- Switching output for an external relay as a main switch
- Solar computer for all VOTRONIC solar charge controllers and VBCS Triple
- Indoor and outdoor thermometer including 1 indoor and 1 outdoor sensor
- Clock in 24-hour format
- Dual USB charging socket (5 V/2.5 A)
