Votronic Power Control VPC Jupiter 200 with Smart Shunt and Ground Strap 35 mm² - 5748

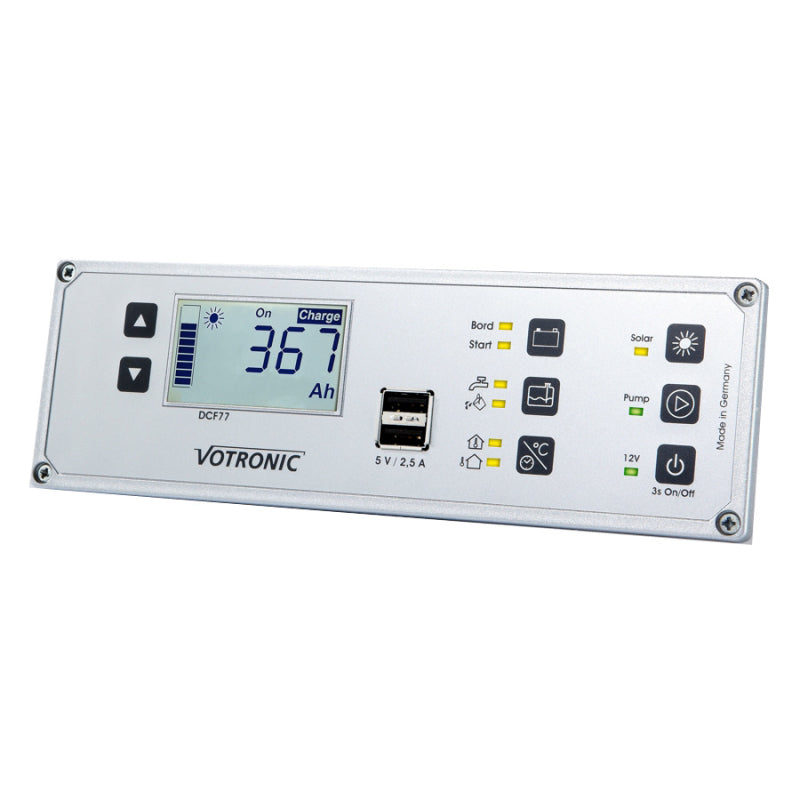

Votronic LCD Control Board Jupiter 200 with Smart Shunt 35mm²

The VOTRONIC Power Control (VPC) is an innovative multi-panel system for motorhomes that combines the most important functions and information in one user-friendly device. Information is displayed on a bright, white backlit graphic display. The large-sized values are perfectly legible in all lighting conditions and from a greater distance. Colored LEDs indicate the selected function at all times. The individual versions differ in their range of functions, which are designed to meet the specific requirements of different vehicle types. While the Jupiter version, for example, leaves virtually nothing to be desired in terms of energy supply and fill levels, the Mercury version is particularly recommended for more compact vehicles, which often do not have fixed tanks.

All devices have at least a voltage display for the leisure and starter batteries and a switching output for an external relay as a main switch. A switchable alarm (beeper) on the panel and a notification on the display warn when an adjustable energy threshold has been fallen below and the main switch will automatically shut off in a few seconds to prevent deep discharge of the battery.

Jupiter Product Features

• Battery Computer (data see p. 61) for the leisure battery
  • Battery voltage in V
  • Battery current in A (+ = charging / – = discharging)
  • Battery capacity in Ah and %
  • Remaining runtime in h until the programmed shutdown threshold is reached
• Solar Computer (data see p. 55) for all VOTRONIC solar charge controllers (from 2014) and VBCS Triple
  • Current solar power in W
  • Current solar current in A
  • Charged solar capacity in Ah
  • Charged solar energy in kWh
• Voltage display for the starter battery
• Fill level display for fresh water and waste water tanks
• Potential-free switching output for an external relay with freely programmable switching thresholds (% remaining capacity) as deep discharge protection and as main switch
• Switch for the fresh water pump max. 16 A
• Indoor and outdoor thermometer incl. 1 indoor and 1 outdoor sensor
• Clock in 24-hour format
• Dual USB charging socket (5 V/2.5 A)
