Votronic Power Control VPC Jupiter 100 with Smart Shunt and Ground Strap 25 mm² - 5747

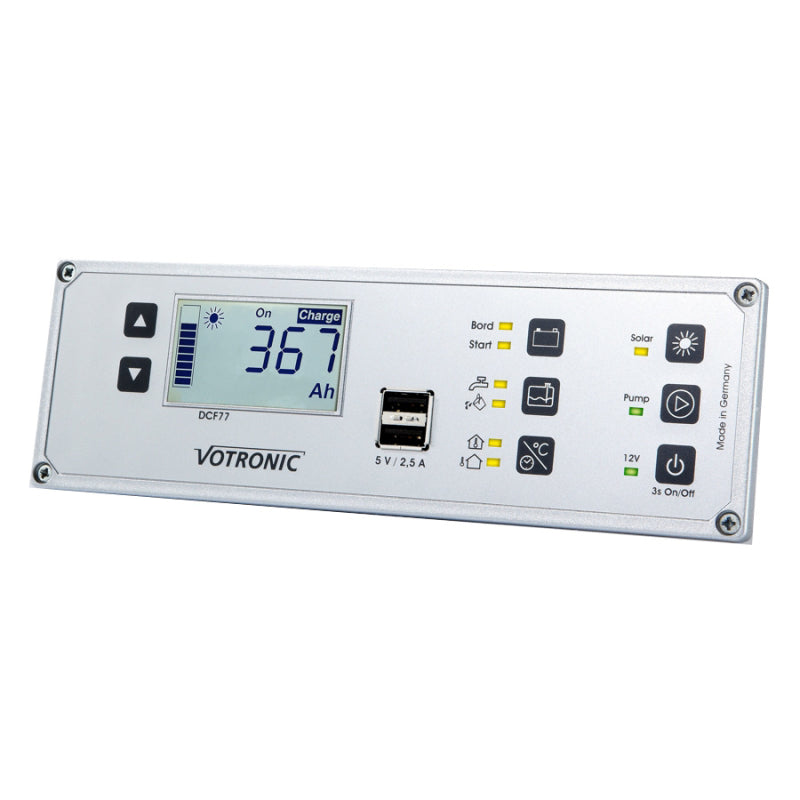

Votronic LCD control board Jupiter 100 with Smart Shunt 25mm²

The VOTRONIC Power Control (VPC for short) is an innovative multi-panel system for motorhomes that combines the most important functions and information in a user-friendly way in one device. The information is shown on a bright, white illuminated graphic display. The large values ​​​​are clearly visible in all lighting conditions, even from a distance. Colored LEDs signal the selected function at any time. The individual versions differ in their range of functions, which are designed to meet the specific requirements of the various vehicle types. While the Jupiter version leaves almost nothing to be desired with regard to power supply and fill levels, the Merkur version is particularly recommended for more compact vehicles, which often do not have fixed tanks.

All devices feature at least a voltage indicator for the onboard and starter batteries and a switching output for an external relay as a main switch. A switchable alarm (beeper) on the panel and a message on the display alert you when a set energy threshold is exceeded. The main switch will automatically shut off in a few seconds to prevent deep discharge of the battery.

Jupiter product features

• Battery computer (data see p. 61) for the on-board battery
  • Battery voltage in V
  • Battery current in A (+ = charge /– = discharge)
  • Battery capacity in Ah and %
  • Remaining running time in hours until the programmed switch-off threshold is reached
• Solar computer (data see page 55) for all VOTRONIC solar charge controllers (from 2014) and VBCS Triple
  • Current solar power in W
  • Current solar power in A
  • Charged solar capacity in Ah
  • Charged solar energy in kWh
• Voltage display for the starter battery
• Level indicator for fresh water and waste water tank
• Potential-free switching output for an external relay with freely programmable switching thresholds (% remaining capacity) as deep discharge protection and as main switch
• Switch for the fresh water pump max. 16 A
• Indoor and outdoor thermometer including 1 indoor and 1 outdoor sensor
• Clock in 24-hour format
• Double USB charging socket (5 V/2.5 A)
