Votronic Charge Converter/Charge Booster VCC 2412-45 Li - 3320 · Delivery time approx. 2–4 weeks

Name: Votronic Charge Converter/Charge Booster VCC 2412-45 Li - 3320 · Delivery time approx. 2–4 weeks
Brand: VOTRONIC
SKU: 302-1157
Price: 508.50 EUR
Availability: InStock

€508,50

Tax included. Shipping calculated at checkout

Quantity:

⏳ Delivery time approx. 2–4 weeks
This product is ordered directly from the manufacturer upon order. We will confirm the estimated delivery time by email within 24 hours of receiving your order.

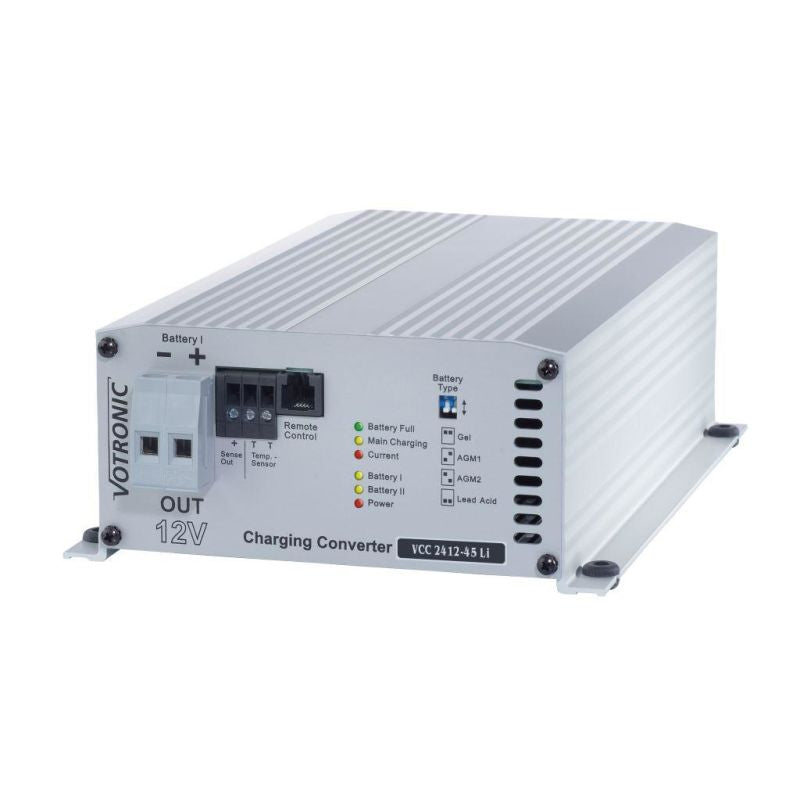

Votronic Charge Booster VCC 2412-45 Li VO3320: Your Ultimate Solution for Efficient Battery Charging

Unrivaled charging performance even on short distances

With the Votronic Charge Booster VCC 2412-45 Li, you'll enjoy impressive charging performance even on short journeys. It significantly improves the energy balance of your supply circuit and ensures optimal charging of your batteries.

Protection and Reliability

Experience excellent protection for your leisure battery and all connected consumers from the sometimes strong voltage fluctuations of modern, dynamically regulated alternators. The advanced IU1oU2oU3 charging technology guarantees a complete charge without the risk of overcharging, especially on long journeys.

Perfectly matched for LiFePO4 batteries

Easily set the optimal charging characteristic curve for various LiFePO4 battery types via the battery selector switch. The Votronic Charge Booster is specially designed for perfect adaptation, offering you flexibility and efficiency.

Automatic charging power for your safety

The automatic, adjustable charging power ensures that the starter battery always has priority when the vehicle's electrical system is heavily loaded. This guarantees the immediate start capability of your vehicle under all circumstances.

Temperature compensation for all conditions

Benefit from the built-in temperature compensation, which automatically adjusts the charging voltage to the battery temperature. This allows for safe charging operation even at temperatures outside the recommended ranges for LiFePO4 batteries (below 5°C or above 35°C). Battery temperature sensor is included in the delivery.

Simplicity and Safety in Installation

The installation of the charge booster is extremely simple and safe. You do not need to intervene in the vehicle's starter circuit. In addition, it offers comprehensive protection against reverse polarity, short circuit, and reverse discharge.

Extended Functions for Your Convenience

With connection options for remote control and remote operating display, the Votronic Charge Booster maximizes your flexibility. The galvanic isolation between input and output prevents interference and unwanted reverse discharges.

Universally applicable

The Votronic Charge Booster is ideal for use in a variety of applications – from large vehicles and trailers to supply containers. Its ability to work with EBL (electrical block) and EVS, as well as the built-in on-board network filter for parallel operation with other charging sources, make it an indispensable tool for any modern vehicle.

Optimize charging efficiency and protect your batteries with the Votronic Charge Booster VCC 2412-45 Li. It offers the most advanced technologies for safe, efficient, and user-friendly battery charging.

Replaces item no. VO3309, change: larger terminals

Charging power in [V]/[A] 12 / 45
Max. current in [A] 33
Input voltage in [V] 22 - 32
Battery type adjustable LiFePO4 - 4-fold
Battery nominal voltage IN in [V] 24
Battery capacity IN in [Ah] 60
Power consumption IN max. in [W] 720
Battery nominal voltage OUT in [V] 12
Battery capacity OUT in [Ah] 90 - 200
Charging curve IU1oU2oU3
Overvoltage shutdown EURO+ in [V] 32.2
Voltage ripple in [mV] rms < 30
Charge timer 3-fold
Device installation position any
Temperature range [°C] -20 to +45
Protection class/degree IP 21
Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges, without connections 160 x 71 x 245
Weight in [g] 1800
Standards (CE) EN 60335-2-29
Ambient conditions, humidity: max. 95% relative humidity, non-condensing

Scope of delivery: temperature sensor, operating instructions

Technical Data	VCC-2412-45 Li
Input voltage (DC)	24V
Charging Current	45 A
Battery capacity min.	60 Ah
Max. Power Consumption	740 W
Selectable Charging Characteristics LiFePO4	4
Battery Capacity (recommended)	90-300 Ah LiFePO4
Battery Type	LiFePO4
Operating Temperature	-20°C to +45°C
Dimensions	280 x 139 x 74 mm
Weight	1.70 kg

Production Sustainability No information
