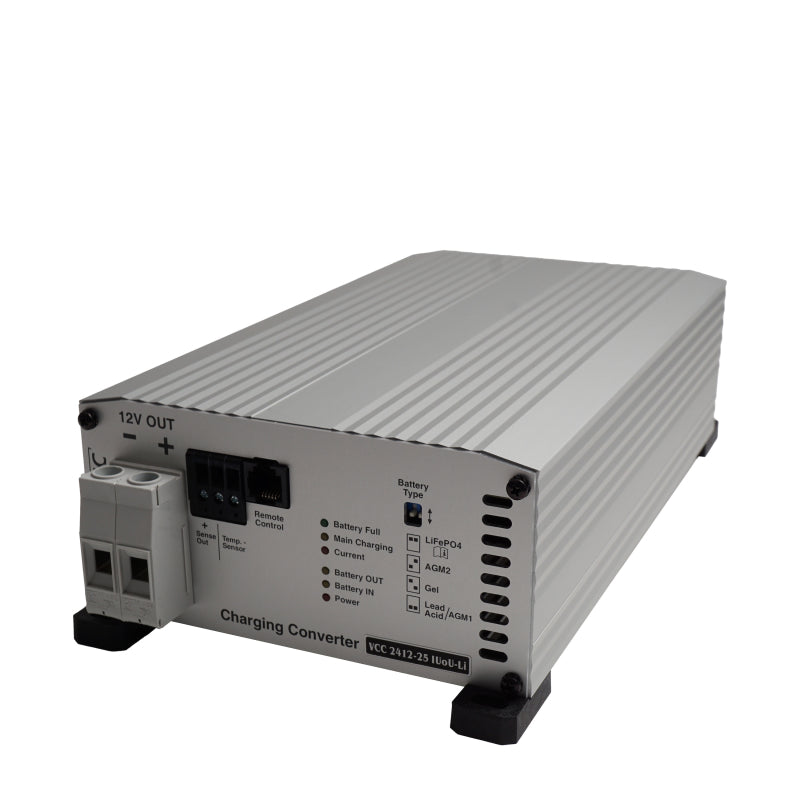

Votronic charging converter/charging booster VCC 2412-25 IUoU-Li - 3304

Increase Your Vehicle's Energy Efficiency with the Votronic Charging Converter/Charge Booster VCC 2412-25 IUoU-Li - 3304

Experience advanced charging technology on the go with the Votronic Charging Converter VCC 2412-25 IUoU-Li, ideal for special vehicles, motorhomes, and boats. This fully automatic charging converter guarantees optimal charging of your service batteries – be they lead-acid, lead-gel, lead-AGM, or LiFePO4 technology – directly from the alternator, thanks to its specialized charging conversion. The integrated IU1oU2 charging characteristic curve and dynamic charging time calculation optimize the charging process by compensating for energy losses and enabling efficient full charging.

Through the advanced technology of the charging converter, connected batteries are protected from overcharging and excessive gassing even during long journeys, ensuring your vehicle is always ready to start. In addition, the microprocessor-controlled charging management promotes fast and gentle full charging, as well as subsequent 100% charge retention.

Further outstanding features of this device include:

• Automatic power adjustment, which prioritizes the starter battery in an overloaded vehicle network.
• High safety standards through protection functions against overload, overheating, and more.
• Galvanic isolation protects your battery systems even when mixing different voltages.
• Lead and LiFePO4 temperature compensation, which adjusts the charging voltage according to the battery temperature, thus ensuring efficient charging.
• Integrated on-board network filter that enables interference-free parallel operation with other energy sources.

With this charge booster, you are ideally equipped to charge your batteries safely and efficiently on the go, without affecting your vehicle's electrical system. It behaves like a consumer on the alternator, without interfering with the vehicle's electrical system, which greatly simplifies installation and use.

Technical Data	VCC 2412-25
Input voltage (DC)	24 V
Charging current	25 A
Battery type	GEL, AGM, LiFePO4
Minimum battery capacity	50 Ah
Max. current consumption	18 A
Battery capacity, recommended/up to	50 - 170 / 220Ah
Dimensions	270 x 139 x 74 mm
Weight	1.3 kg
