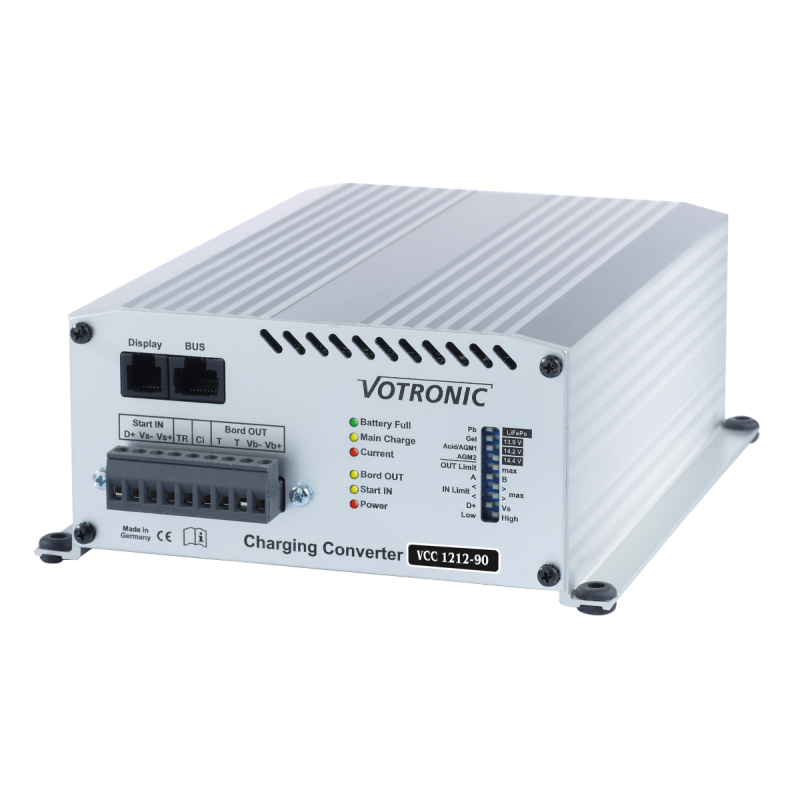

Votronic charging converter/charging booster VCC 1212-90 - 3329

Name: Votronic charging converter/charging booster VCC 1212-90 - 3329
Brand: VOTRONIC
SKU: 302-1643
Price: 591.20 EUR
Availability: InStock

€591,20

Tax included. Shipping calculated at checkout

Quantity:

Votronic Charging Booster VCC-1212-90 for 12V - 90A Charging Power

Charging booster, optimal charging even on short journeys

The VOTRONIC charging boosters ensure optimal and fast charging of the supply battery from the alternator while driving. In contrast to a simple isolating relay, the charging voltage is increased to the value necessary for a full charge for the respective battery type and required by battery manufacturers. This allows the full charging current to flow, and a significant amount of power to be stored in the battery in a short time. Long charging cables and losses, as well as voltage fluctuations at the alternator, are precisely regulated.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

The charging converters thus provide the well-known high quality of battery charging of VOTRONIC chargers even while driving. The intelligent microprocessor charging control with "IU1oU2" charging characteristics and dynamic charging time calculation automatically ensures fast and gentle full charging as well as subsequent maintenance charging of the connected batteries from any state of charge, and always enables the simultaneous supply of consumers parallel to the supply battery.

Further features at a glance:

Votronic products "Made in Germany"
High charging power even on short journeys
Significantly improved energy balance of the leisure battery
Optimal charging curves for all battery types, adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
Suitable for all alternators
Automatic, adjustable power control ensures priority charging of the starter battery by the alternator in heavily loaded vehicle electrical systems, thus guaranteeing the immediate startability of the vehicle
Easy installation, no interventions in the vehicle's starter circuit required, device is switched into the charging line to the supply battery
Parallel operation possible for increased power
Particularly recommended for vehicles with Euro 6 standard
Temperature sensor 825 already included
The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology), and robustly dimensioned power components. 6 operating indicators provide information about the device's operating status at all times.

As an accessory, we recommend the clear LCD-Charge Control S-VCC (1248). With this, you always have charging information at a glance.

Technical Data	VCC-1212-90
Input voltage (DC)	12V (10.5 - 16.5V)
Charging power adjustable limit, max.	75A, 90A
Battery type	GEL, AGM, Lead-Acid, LifePO4
Continuously temperature-controlled fan	yes
Temperature sensor included	yes
Connections remote control, display / VBS2 / CI-Bus	yes / yes / yes
Overload protection / Overtemperature protection	yes / yes
Battery capacity, recommended/up to	150-600/800 Ah
Dimensions	160 x 205 x 72mm
Weight	1.48 kg
