Votronic charging converter/charging booster VCC 1212-30 - 3324

Name: Votronic charging converter/charging booster VCC 1212-30 - 3324
Brand: VOTRONIC
SKU: 302-1654
Price: 239.60 EUR
Availability: InStock

€239,60

Tax included. Shipping calculated at checkout

Quantity:

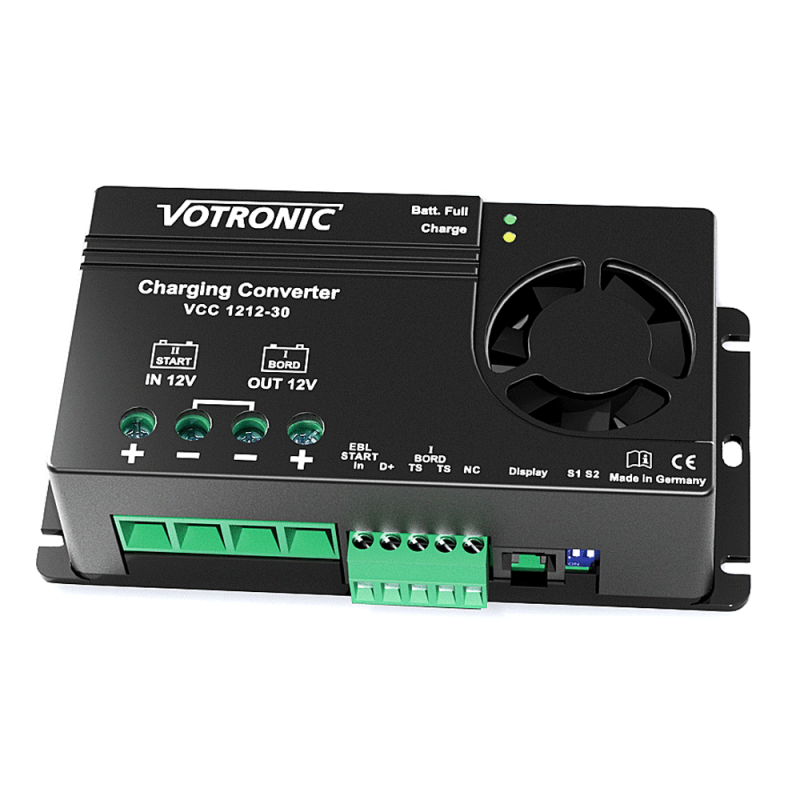

Votronic Charging Booster VCC-1212-30 for 12V - 30A Charging Power

Charging booster, optimal charging even on short journeys

The VOTRONIC charging boosters ensure optimal and fast charging of the supply battery from the alternator while driving. In contrast to a simple battery isolator, the charging voltage is increased to the value required for the respective battery type for a full charge and demanded by the battery manufacturers. This allows the full charging current to flow and considerable amounts of current to be loaded into the battery in a short time. Long charging lines and losses, as well as voltage fluctuations at the alternator, are precisely regulated.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard vessels! Quality - Made in Germany!

The charge converters thus provide the well-known high-quality battery charging of VOTRONIC chargers even while driving. The intelligent microprocessor charging control with "IU1oU2" charging characteristics and dynamic charging time calculation automatically ensures fast and gentle full charging as well as subsequent charge maintenance of the connected batteries from any state of charge and always allows simultaneous power supply to consumers in parallel with the supply battery.

Further special features at a glance:

Votronic products "Made in Germany"
High charging power even on short journeys
Significantly improved energy balance of the leisure battery
Optimal charging characteristics for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
Suitable for all alternators
Automatic, adjustable power regulation ensures priority charging of the starter battery by the alternator when the vehicle's electrical system is heavily loaded, thus guaranteeing immediate starting capability of the vehicle again
Easy installation, no intervention in the vehicle's starter circuit required, device is connected in the charging line to the supply battery
Parallel operation possible for increased power
Particularly recommended for vehicles with Euro 6 standard
Temperature sensor 825 already included in delivery
The charge converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and robustly dimensioned power components. 6 operating indicators provide information about the operating status of the device at all times.

As an accessory, we recommend the clear LCD-Charge Control S-VCC (1248). With this, you always have information about charging at a glance; the display was developed exclusively for the VCC 1212 series of devices.

Technical Data	VCC-1212-30
Input voltage (DC)	12V (10.5 - 16.5 V)
Charging current	30 A
Battery capacity min.	50 Ah
Max. power consumption	490 W
Stored charging programs Lead / LiFePO4	3 / 1
Battery capacity (recommended)	60 - 200 Ah LiFePO4
Battery type	GEL, AGM, Lead-acid, LiFePO4
Operating temperature	-20°C to +45°C
Dimensions	146 x 67 x 40 mm
Weight	0.28 kg

Production Sustainability No information
