VOTRONIC

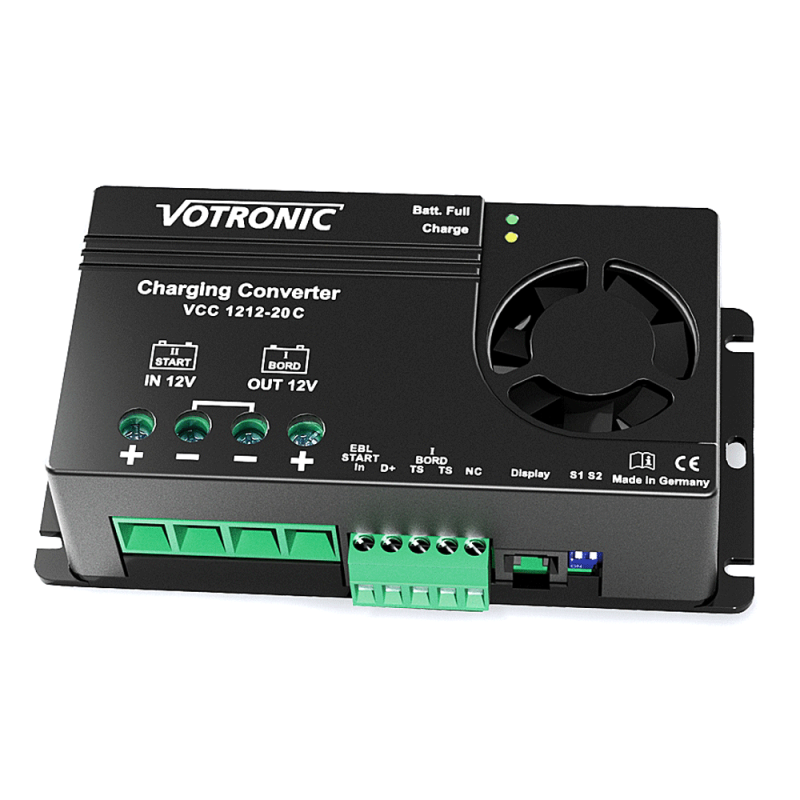

Votronic charging converter/charging booster VCC 1212-20 C - 3321

Name: Votronic charging converter/charging booster VCC 1212-20 C - 3321
Brand: VOTRONIC
SKU: 302-1101
Price: 239.60 EUR
Availability: InStock

€239,60

Tax included. Shipping calculated at checkout

Quantity:

Votronic Charging Booster VCC-1212-20 for 12V - 20A Charging Power

Charging Booster, optimal charging even on short journeys

The VOTRONIC charging boosters ensure optimal and fast charging of the supply battery from the alternator while driving. Unlike a simple cut-off relay, the charging voltage is raised to the value necessary for a full charge for the respective battery type and required by battery manufacturers. This allows the full charging current to flow, and a significant amount of electricity can be loaded into the battery in a short time. Long charging cables and losses, as well as voltage fluctuations at the alternator, are precisely regulated.

Designed for operation with a 13-pin trailer connector for caravans and camper cabins

The device is primarily designed for operation with the 13-pin trailer connector of the towing vehicle to charge the caravan battery. It automatically regulates itself so that the load capacity of the connector and the upstream vehicle electrical system (12 V / max. 20 Amperes) is not exceeded. From this perspective, the performance of the device results. The charging converter is installed in the caravan/camper cabin and provides the optimal charging voltage for the battery, independent of vehicle board voltage fluctuations and cable/connector voltage losses.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

The charging converters thus provide the well-known high quality of battery charging of VOTRONIC chargers even while driving. The intelligent microprocessor charging control with "IU1oU2" charging characteristics and dynamic charging time calculation automatically ensures fast and gentle full charging, as well as subsequent charge maintenance of the connected batteries from any state of charge, and always enables the simultaneous supply of consumers in parallel with the supply battery.

Further features at a glance:

Votronic products "Made in Germany"
High charging power even on short journeys
Significantly improved energy balance of the leisure battery
Optimal charging characteristics for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
Suitable for all alternators
Automatic, adjustable power regulation ensures, when the vehicle's electrical system is heavily loaded, priority charging of the starter battery by the alternator, thus guaranteeing the vehicle's immediate starting capability
Easy installation, no intervention in the vehicle's starter circuit required, device is connected into the charging line to the leisure battery
Parallel operation for increased power possible
Particularly recommended for vehicles with Euro 6 standard
Temperature sensor 825 already included in delivery
The charging converters are also characterized by compact design, low weight (high-frequency switching transformer, switch-mode technology), and robustly dimensioned power components. 6 operating indicators provide information on the operating status of the device at all times.

As an accessory, we recommend the clear LCD-Charge Control S-VCC (1248). With this, you always have charging information in view; the display was developed exclusively for the VCC 1212 device series.

Technical Data	VCC-1212-20
Input voltage (DC)	12V (10.5 - 16.5V)
Adjustable charging power limit / max. charging current	15 A / 24 A
Battery type	GEL, AGM, Lead-Acid, LiFePO4
Continuously temperature-controlled fan	yes
Temperature sensor included	yes
Connection accessories	LED Remote Control (2076) or LCD Charge Control S-VCC (1248)
Overload protection / Overtemperature protection	yes / yes
Battery capacity, recommended/up to	50-160/200 Ah
Dimensions	146 x 67 x 40mm
Weight	0.28 kg
