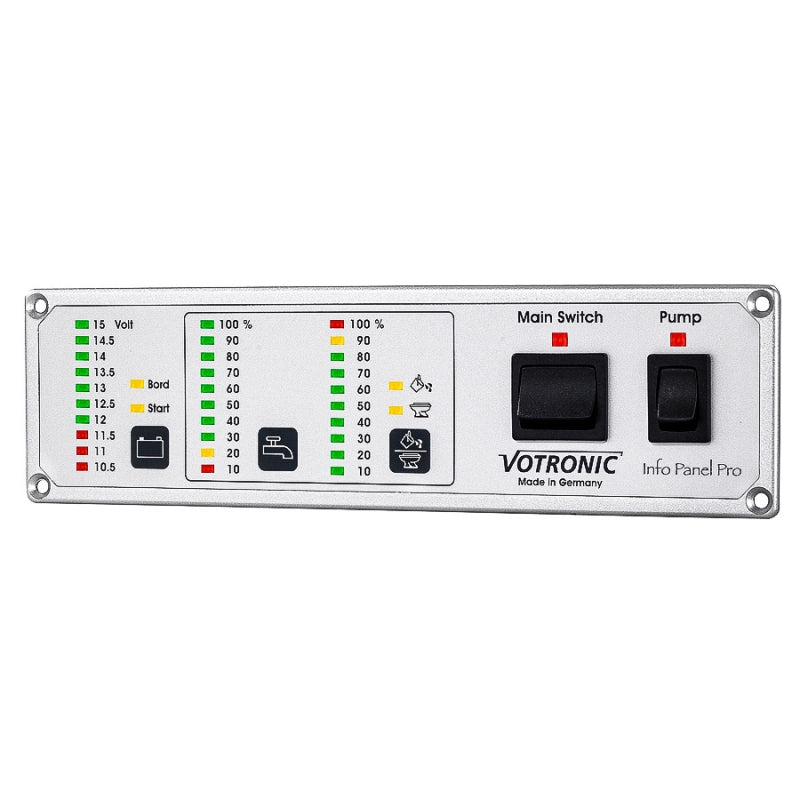

Votronic Info Panel Pro - 5330

Control and information center for motorhomes and boats

The VOTRONIC Info Panel has proven itself outstandingly since its market launch and has now been expanded in its functions. It is particularly popular because it handles the most important control and switching tasks in the motorhome, and does so in a particularly compact form. It monitors the fresh water, waste water, and sewage tanks as well as the on-board and starter batteries. Furthermore, it features a main switch for the on-board battery and a pump main switch for the fresh water supply. Both, of course, feature a switch-on control.

The voltage display on the left side of the Info Panel Pro is used to monitor the on-board and starter batteries. The illuminated dot display provides a fairly accurate indication of the battery voltages, as even intermediate values ​​are easy to read thanks to the varying brightness of neighboring dots. The on-board or starter battery voltage can be selected or the display turned off at the touch of a button. When the battery voltage is low, red indicators indicate that the battery needs to be recharged soon.

The fill levels of the tanks are displayed as clear, three-color light bars, each with 10 LEDs, allowing precise tank levels to be recorded at a glance. The displays work continuously, as intermediate levels are displayed with variable brightness, allowing trends to be recognized immediately. When filling or emptying the containers, the constantly rising or falling display gives the user a direct picture of the current fill level, thus enabling complete control of the process. The continuous operation of the display also contributes to this. The display can be switched on and off at the push of a button, or switches off automatically after approx. 10 minutes. The tank display on the right-hand side of the Info Panel Pro can be switched to two measuring inputs (e.g. wastewater and faecal tank) as standard. For each tank display and tank used, one of the VOTRONIC tank sensors must be selected according to the tank content, tank height and mounting option on the tank. Tank displays that are not required (e.g. faecal) are simply left blank.

The Info Panel Pro is protected against reverse polarity and overload. The connections are easily accessible and are routed to the labeled rear panel via 6.3 mm flat plugs (power connections) and screw terminals (signal connections).

Detailed installation and operating instructions, as well as a drilling template for the furniture cutout, are included. The particularly shallow installation depth of just 15 mm allows for installation in almost any location, while the storage space behind it can still be used. When switched off, the device and all fuel level sensors are completely powerless.

Download assembly and operating instructions
