Votronic Fresh Water Tank Indicator S - 5311

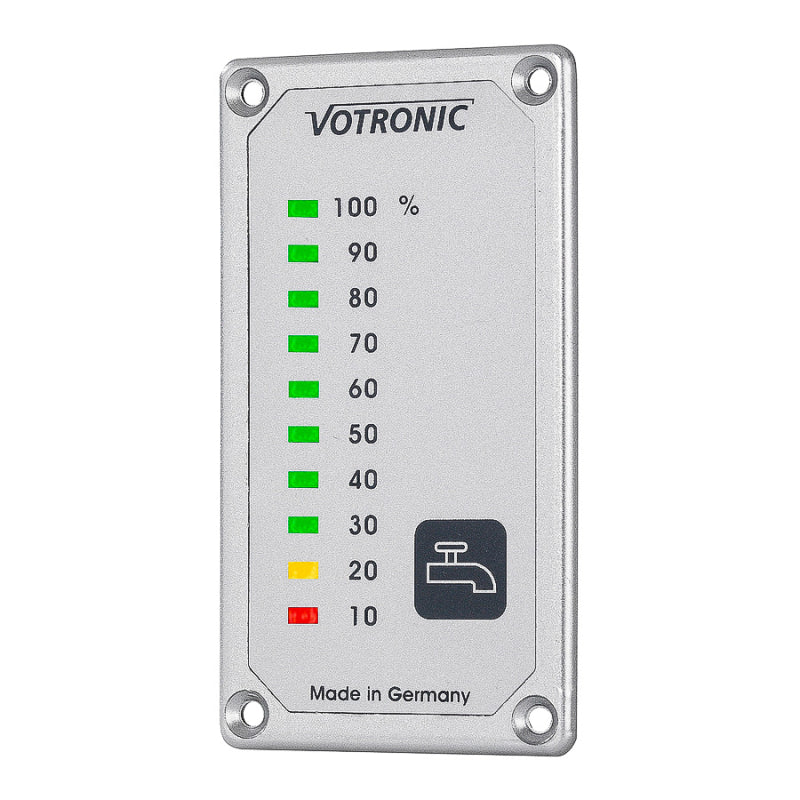

Votronic Fresh Water Tank Gauge S

The optimized monitoring solution

The VOTRONIC tank gauges are designed for accurate fill level measurement and can be used for all tank materials and tank sizes. They differ in the arrangement of the tricolor indicator LEDs at the ends of the range and in the symbol printed on the front panel. The tank fill levels are displayed as clear light bars, each with 10 tricolor LEDs, allowing for precise and immediate monitoring of tank levels. The displays operate steplessly, as intermediate levels are shown with variable brightness, making trends immediately recognizable.

When filling and emptying tanks, the continuously rising or falling display provides the user with a direct representation of the current fill level, allowing for complete control of the process. The continuous operation of the display also contributes to this. The display can be switched on and off at the push of a button or automatically switches off after approximately 10 minutes.

The display units are designed as a panel version compatible with the VOTRONIC module system and fit perfectly with other VOTRONIC display units (uniform height 85 mm). Of course, retrofitting a single display in the vehicle is also possible. Small front panel dimensions and a particularly shallow installation depth of only 18 mm allow mounting almost anywhere. The storage space behind it can thus continue to be used.

The devices are protected against reverse polarity and overload and are easy to connect via screw terminals on the back of the device. Installation and operating instructions as well as a drilling template for the furniture cutout are included in the scope of delivery. Like the sensors, the displays are suitable for both 12V and 24V operation.

Votronic Fresh Water Tank Gauge S

Technical Data	Fresh Water Tank Gauge S
Battery Nominal Voltage	12V / 24V
Current Consumption max.	30 mA
Display	LED
Dimensions	47 x 85 x 20mm
Installation Dimensions	29 x 63 x 15mm
Weight	25g
Test Mark	CE, E-Approval (EMC/Vehicle Directive)
Scope of Delivery	Display unit, mounting screws, instructions, drilling template
Operating Instructions	Download
