Votronic D+ Simulator - 3066

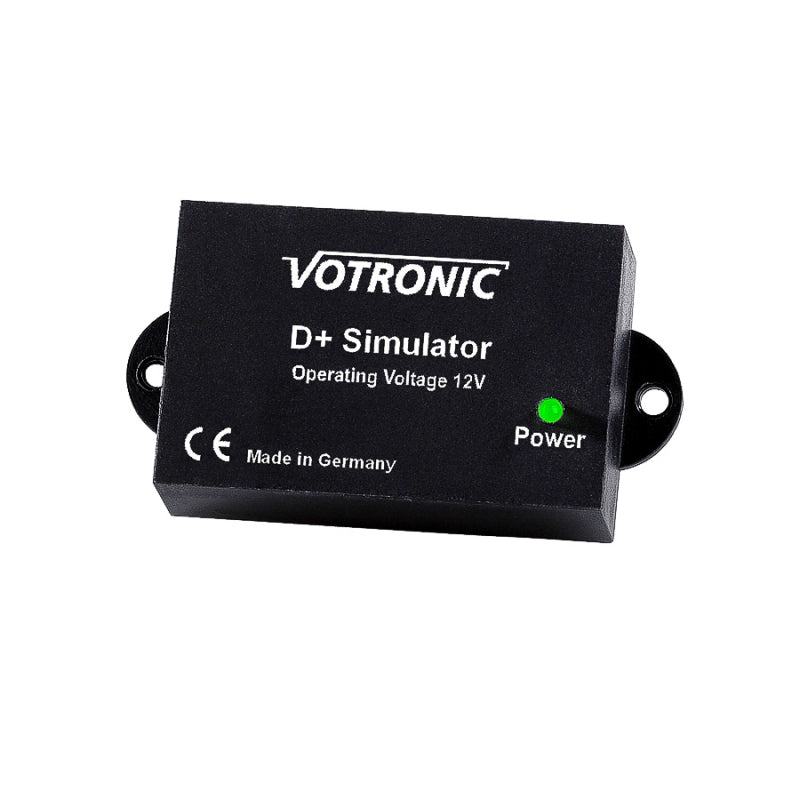

Votronic D+ Simulator

Control unit for detecting charging operation in a 12 V vehicle electrical system (engine running)

If auxiliary consumers are only to be switched on when the engine is running (the alternator is supplying power) or if the on-board battery is to be charged by connecting the on-board and starter batteries via a cut-off relay, the D+ contact of the alternator is usually used to control a relay.

However, this contact is often not accessible in the vehicle, no longer present in newer alternators, not available in a container body, or a voltage-dependent control is generally desired. The VOTRONIC D+ Simulator provides a remedy here. It generates a corresponding signal for a subsequent powerful (cut-off) relay in a voltage-controlled manner (e.g., from the starter battery). Further applications include controlling auxiliary consumers that should only be activated when the battery is sufficiently charged, such as switching on an air conditioning system while driving or switching a refrigerator, a cooling or heating box to 12 V on-board operation.

Intelligent voltage evaluation of the switching thresholds prevents incorrect activation due to voltage drops or spikes. Dynamic threshold detection also prevents oscillation around the switching points when switching very large loads. The switching status is indicated by an LED. The electronics are protected against moisture, and the connection is made in the rear terminal compartment via a plug-in screw terminal. The switching output is capable of handling 12V / 0.5A, is short-circuit and overload proof, and is of PNP type, positive output, load-side ground.

The device is not suitable for vehicles according to Euro standard 6 and 6+!

Votronic D+ Simulator

Technical Data	D+ Simulator
Device Type	D+ Simulator
Battery Nominal Voltage	12V
Switching Output	12V / max 1.0 A
Switching Thresholds on/off	13.7V / 13.0V
Self-consumption	<1 / <7 mA
Dimensions	70 x 17 x 36mm (incl. mounting flanges, without connections)
Weight	30g
Test Mark	CE, E-test (EMC/Vehicle Directive)
Scope of Delivery	Operating instructions
Operating instructions	Download
