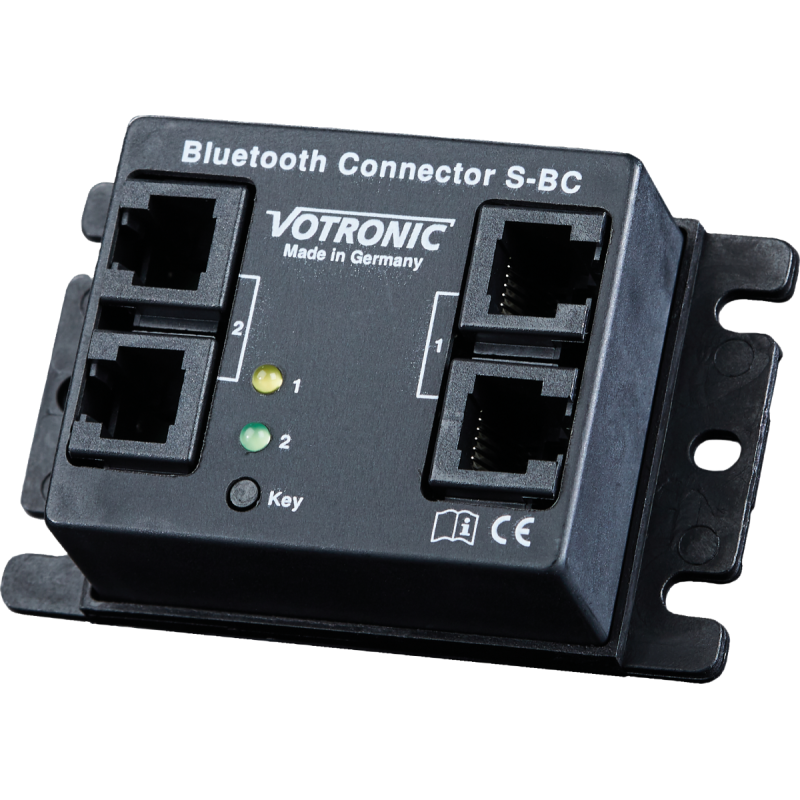

Votronic Bluetooth Connector S-BC - 1430

Name: Votronic Bluetooth Connector S-BC - 1430
Brand: VOTRONIC
SKU: 304-1062
Price: 151.90 EUR
Availability: InStock

€151,90

Tax included. Shipping calculated at checkout

Quantity:

Votronic Bluetooth Interface for Wireless Monitoring

Communication module for a variety of Votronic devices

The Votronic Energy Monitor consists of a special communication module (Bluetooth Connector S-BC) which, in conjunction with a Votronic solar charge controller (from 2013 onwards) with LCD Solar Computer S and/or the LCD Battery Computer S or VPC Jupiter with Smart Shunt, transmits the values displayed on the corresponding display to a mobile device via Bluetooth.
The required app for Android or iOS is available free of charge in the Google Play Store or iOS App Store.

Easy Connection

Connecting the Bluetooth Connector S-BC is incredibly simple. It is simply plugged in using the modular cables included in the scope of delivery between the Votronic solar charge controller and the LCD Solar Computer S or between the Smart Shunt and the LCD Battery Computer S or VPC Jupiter.
The device has 2 inputs and outputs each, so that 1 solar controller with LCD Solar Computer and 1 Smart Shunt with LCD Battery Computer or VPC Jupiter can be connected to one communication module.

Wireless display of a variety of information possible

In this way, all information about the onboard battery, such as voltage, charging and discharging currents, and remaining capacity, as well as all data from the solar system, can be conveniently read from a mobile phone or tablet. In addition, the most important data is logged, graphically prepared, and stored for a longer period. Even output as a CSV file for your own analysis purposes is possible. Of course, the Bluetooth Connector S-BC can also be retrofitted at any time.

The device is characterized by the following:

Compatible with LCD Battery Computer S and VPC Jupiter with Smart Shunt
Compatible with Votronic solar charge controllers (SR and MPP) from 2013 onwards with LCD Solar Computer S
Solar and battery information via a shared communication module (dual-mode)
Easy installation (Plug & Play)
Can be retrofitted at any time
Compact design and minimal power consumption
Connection via Bluetooth 4.0 (2.4 GHz)
Range up to 50 m outdoors
Free app (Android and iOS)
Output as a CSV file for your own analysis purposes

The Bluetooth Connector S-BC is compatible with the following devices:

VOTRONIC solar charge controllers in SR and MPP technology from 2013 onwards (serial number 13Vxx.xxxxx)
Battery Charger type VBCS-Triple
LCD Battery Computer S with Smart Shunt (all versions)
VPC Jupiter with Smart Shunt (all versions)

Technical Data	Bluetooth Connector S-BC
Item No.	1430
Weight	37 g
Test Mark	CE, E-Approval (EMC/Vehicle Directive)
Connection Cable	5 meters
Ambient Conditions	Humidity: max 95%
Dimensions	75 x 47 x 24 mm
Mounting Dimensions	65 x 71 x 18 mm

Production Sustainability No Information
