Votronic Battery Protector 40 - 3075

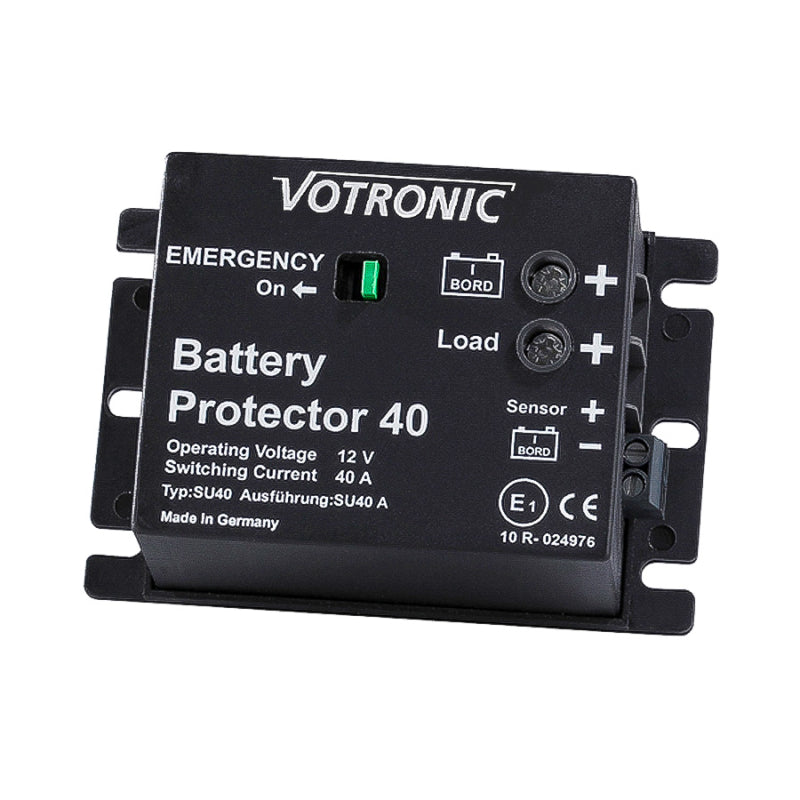

Votronic Battery Protector / Battery Monitor 40

Best protection against dangerous deep discharge

The VOTRONIC Battery Protector 40 and Battery Protector 100 devices are connected between the supply battery and the consumers and are suitable for all lead-acid battery types (acid, gel, AGM) and manufacturers. They protect the battery from dangerous deep discharge and the consumers and equipment from undervoltage and overvoltage, and can also serve as remote-controlled battery main switches when controlled by an external switch.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

Further special features at a glance:

• High switching current 40 A, short-term overloadable up to 60 A;
• Intelligent switching threshold automatic calculates the correct "empty" cutoff point for safe battery protection with optimal capacity utilization, based on stored battery characteristic curves, for both high consumers (low switching threshold with shorter response time) and very small loads (e.g., "hidden" power consumers with response times over days/months with high response threshold)
• Optional operation also adjustable with 3 fixed cutoff thresholds (manual)
• The higher setting values maintain the starting capability of emergency vehicles with only one battery circuit (according to DIN EN 1789)
• Pre-alarm with visual (LED) and audible (beeper, deactivatable) display and separate warning switch output (PNP, positive output 0.2 A) allows timely countermeasures by the user (e.g., switching off unnecessary consumers)
• Solid battery screw terminals for M6 cable lugs, protective caps included in delivery
• Votronic products "Made in Germany"

Votronic Battery Protector / Battery Monitor 40

Technical Data	Protector 40
Operating Voltage (DC)	12V
Switching Current (Continuous/Short)	40A / 60A
Undervoltage Cutoff Threshold	10.7 V
Automatic Cutoff Threshold	9.5 - 12.2 V
Undervoltage Reset Point	12.5 V
Automatic Reset Point	12.5 V
Overvoltage OFF/ON	15.5 / 15.0 V
Operating Temperature	-20°C to +50°C
Dimensions	90 x 60 x 38mm
Weight	97 g
User Manual	Download
