Votronic Battery Protector 40/24 - 6075

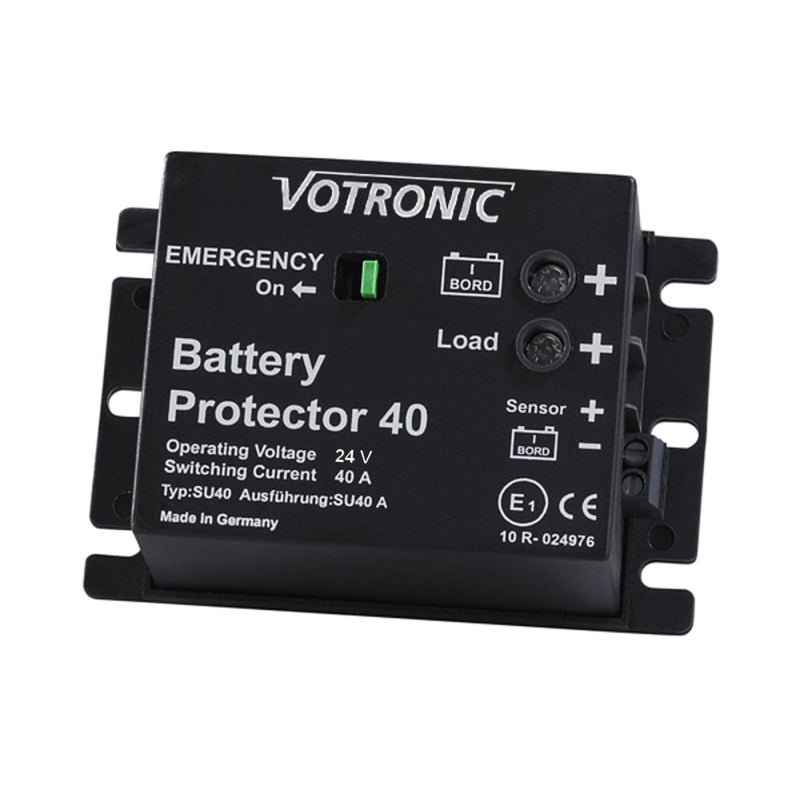

Votronic Battery Protector / Battery Monitor 40/24

Best protection against dangerous deep discharge

The VOTRONIC Battery Protector 40 and Battery Protector 100 devices are connected between the supply battery and the consumer and are suitable for all lead-acid battery types (acid, gel, AGM) and brands. They protect the battery from dangerous deep discharge and consumers and equipment from under- and overvoltage, and can also serve as remote-controlled battery main switches, controlled by an external switch.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

Further features at a glance:

• High switching current 40 A, overloadable up to 60 A for a short time;
• Intelligent switching threshold automatic calculates the correct "empty" shutdown point based on stored battery characteristic fields for safe battery protection with optimal capacity utilization, both for high consumers (low switching threshold with shorter response time) and very small loads (e.g., "secret" power consumers with response times over days/months with high response threshold)
• Optional operation also with 3 fixed shutdown thresholds (manual) adjustable
• The higher setting values maintain the starting capability of emergency vehicles with only one battery circuit (according to DIN EN 1789)
• Pre-alarm with visual (LED) and acoustic (beeper, deactivatable) display, as well as a separate warning switch output (PNP, positive output 0.2 A) allows for timely countermeasures by the user (e.g., switching off unnecessary consumers)
• Solid battery screw terminals for cable lugs M6, protective caps included
• Votronic products "Made in Germany"

Votronic Battery Protector / Battery Monitor 40

Technical Data	Protector 40/24
Operating voltage (DC)	24V
Switching current (continuous/short-term)	40A / 60A
Undervoltage cut-off threshold	21.4 V
Undervoltage reset point	25 V
Automatic reset point	25 V
Overvoltage OFF/ON	31 / 30 V
Operating temperature	-20°C to +50°C
Dimensions	90 x 60 x 38mm
Weight	97 g
Operating manual	Download
