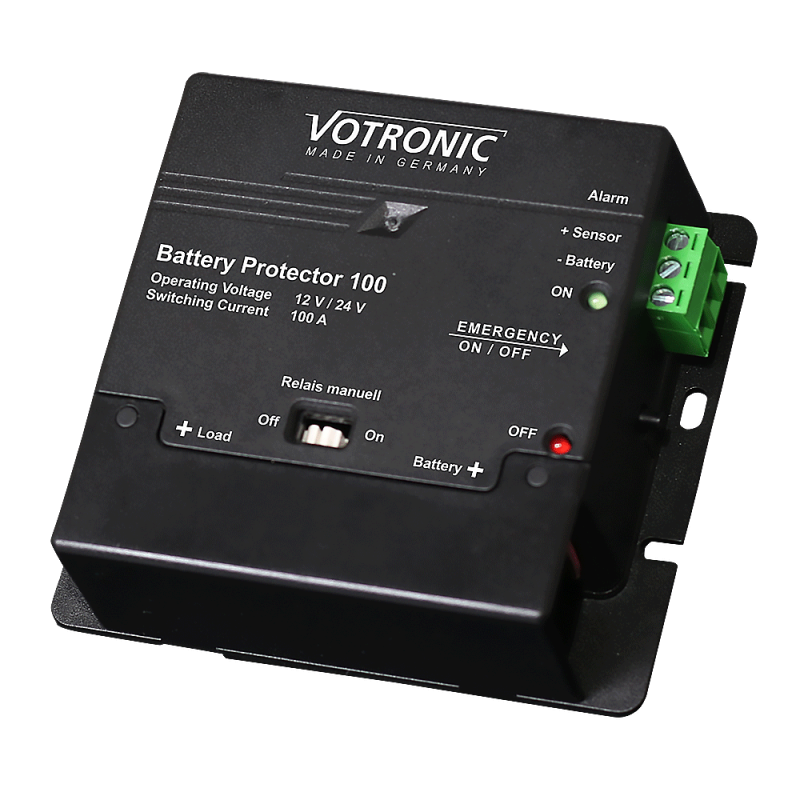

Votronic Battery Protector 100 - 3078

Votronic Battery Protector / Battery Monitor 100

Best protection against dangerous deep discharge

The VOTRONIC Battery Protector 40 and Battery Protector 100 devices are connected between the supply battery and the consumer and are suitable for all lead battery types (acid, gel, AGM) and manufacturers. They protect the battery from dangerous deep discharge, as well as consumers and equipment from under- and overvoltage, and can also serve as remote-controlled main battery switches, controlled by an external switch.

Votronic charging technology has been used for years in professional emergency vehicles such as fire engines, ambulances, and coast guard! Quality - Made in Germany!

Further special features at a glance:

• High switching current 100 A, short-term overloadable up to 180 A; switchable to 12V / 24V on-board power supply
• Intelligent switching threshold automatic calculates the correct "empty" cutoff point based on stored battery characteristic curves to safely protect the battery with optimal capacity utilization, both for high consumers (low switching threshold with shorter response time) and very small loads (e.g., "secret" power consumers with response times over days/months with high response threshold)
• Optional operation also adjustable with 3 fixed cutoff thresholds (manual)
• The higher set values maintain the starting capability of emergency vehicles with only one battery circuit (according to DIN EN 1789)
• Pre-alarm with optical (LED) and acoustic (beeper, deactivatable) display, as well as a separate warning switch output (PNP, positive output 0.2 A) allows timely countermeasures by the user (e.g., switching off unnecessary consumers)
• Solid battery screw terminals for M6 cable lugs, protective caps included
• Votronic products "Made in Germany"

Votronic Battery Protector / Battery Monitor 100

Technical Data	Protector 100
Operating voltage (DC)	12V and 24V
Switching current (Continuous/Short)	100A / 180A
Undervoltage cut-off threshold	10.6 / 11.5 / 11.8 V
Automatic cut-off threshold	9.5 - 12.2 V
Undervoltage reset point	12.4 / 12.5 / 12.8 V
Automatic reset point	12.5 V
Overvoltage OFF/ON	15.5 / 15.0 V
Operating temperature	-20°C to +50°C
Dimensions	105 x 37 x 70mm
Weight	180 g
User Manual	Download
