Votronic 80A-12V Battery Charger Pb 1280 SMT 2B - 3131

Name: Votronic 80A-12V Battery Charger Pb 1280 SMT 2B - 3131
Brand: VOTRONIC
SKU: 302-1130
Price: 1045.30 EUR
Availability: InStock

€1.045,30

Tax included. Shipping calculated at checkout

Quantity:

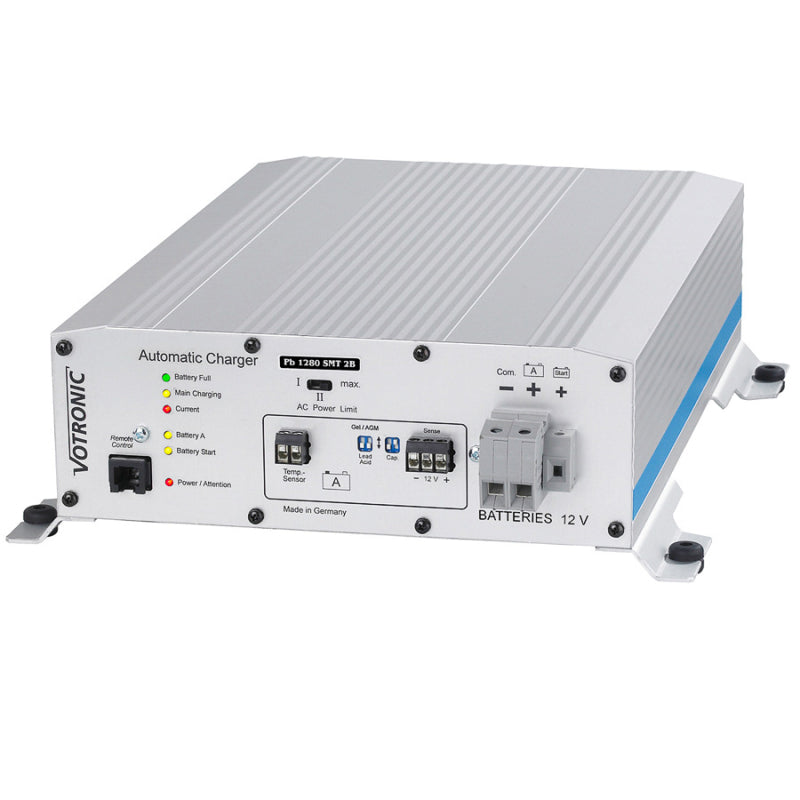

Votronic 80A-12V Battery Charger PB1280 SMT2B

Designed for high-quality motorhomes, marine use, special vehicles and self-sufficient applications.

Votronic chargers are characterized by high operational reliability and readiness for use, representing the latest state of the art. Their high-quality charging technology, robust power electronics combined with intelligent microprocessor control ensure precise adherence to charging voltages, currents, and times, thus extending battery life. A variety of different versions of the devices are available, allowing you to find the right charger for your application.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality Made in Germany!

All charging programs are applied by the charger for gentle full charging and then for trickle charging of the battery, with temperature compensation adapted to the battery type if a temperature sensor is used. The supply of connected consumers is also handled during charging, dimensioned so that no more than 50% flows to the consumers during the I-phase (initial charging).

When the batteries are full, almost the entire possible device charging current is available for consumers without discharging the batteries.

Further features at a glance:

80 A main charge / 2 A secondary charge
Adjustable charging programs Gel, AGM, Acid (No. 1, 2, 4) (separate device available for Li!)
Excellent charging technology
Adjustable Silent-Run function (night reduction)
Battery disconnection in case of power failure, overheating, malfunction
Charging voltages free of peaks, thus overcharging is excluded
Fully automatic continuous operation for constant readiness of the batteries
Separate auxiliary charging output "S" for supporting and maintaining the vehicle's starter battery, max. 2A
Automatic battery regeneration during long periods of inactivity (twice a week)
Compensation of voltage losses on the charging cables for precise adherence to charging voltages
Built-in on-board network filter: Trouble-free parallel operation with solar systems, generators, alternators, etc. on one battery.
Intelligent microprocessor control takes into account the simultaneous supply of consumers on the battery
Precise battery temperature compensation (temperature sensor required)
Power supply function: Enables the supply of consumers without a battery (e.g., battery change)

Selectable charging programs / charging curves:

1. "Gel": Charging program for gel batteries, characteristic IU1oU2oU3

Tailored for sealed, gas-tight gel/dryfit batteries with fixed electrolyte, which generally require a higher charging voltage level and longer U1 hold times to achieve short charging times with particularly high capacity storage and to avoid long-term battery "starvation". Among other things, perfectly suited for our WATTSTUNDE gel batteries.

2. "AGM": Charging program for AGM / fleece batteries, characteristic IU1oU2oU3

Intended for charging sealed, gas-tight AGM (Absorbent-Glass-Mat) batteries and those in lead-fleece technology, which require a particularly high U1 level with coordinated hold times for full charging and then a moderate U2 level for trickle charging (round cell and plate technology).

4. "UNIVERSAL": Charging program for lead-acid/wet-cell batteries, characteristic IU1oU2oU3

Universal program for charging and trickle charging of acid batteries in vehicles (mixed mobile/stationary). Offers short charging times with a medium U1 level, good charging factor and good acid mixing for open and closed, low-maintenance, maintenance-free standard, traction, lighting, solar and heavy-duty batteries as well as AGM batteries with normal U1 level.

Technical Data:
Technische Daten Votronic PB Batterieladegeräte
