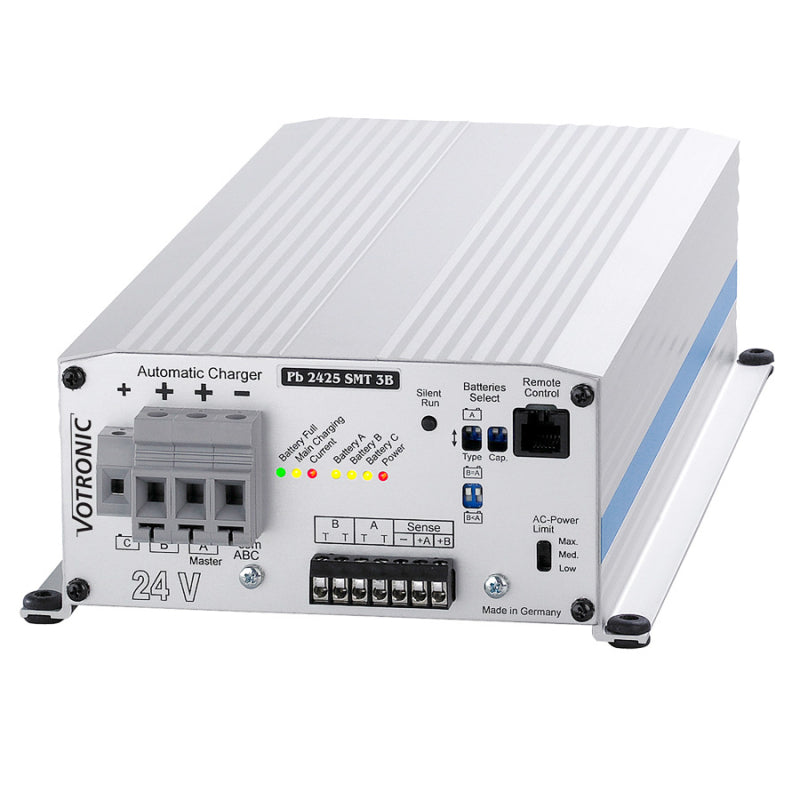

Votronic 25A-24V Battery Charger Pb 2425 SMT 3B - 6239

Name: Votronic 25A-24V Battery Charger Pb 2425 SMT 3B - 6239
Brand: VOTRONIC
SKU: 302-1134
Price: 717.00 EUR
Availability: InStock

€717,00

Tax included. Shipping calculated at checkout

Quantity:

Votronic 25A-24V Battery Charger PB2425 SMT2B

Designed for high-quality motorhomes, marine applications, special vehicles, and self-sufficient systems.

Votronic chargers are characterized by high operational reliability and readiness for use, representing the latest in technology. Their high-quality charging technology, robust power electronics combined with intelligent microprocessor control ensure precise adherence to charging voltages, currents, and times, thus extending battery life. A wide variety of device versions are available, allowing you to find the right charger for your application.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality Made in Germany!

All charging programs are applied by the charger for gentle full charging and subsequent trickle charging of the battery. If a temperature sensor is used, temperature compensation is also adjusted according to the battery type. Power supply to connected consumers is also handled during charging, dimensioned so that no more than 50% flows to consumers during the I-phase (initial charge).

When batteries are full, almost the entire possible device charging current is available for consumers, without discharging the batteries.

Further special features at a glance:

25A main charge / 4A secondary charge
Charging programs adjustable according to battery type
Excellent charging technology
Silent-Run function adjustable (night reduction)
Battery disconnection in case of power failure, overheating, malfunction
Charging voltages free of peaks, thus overcharging is excluded
Fully automatic continuous operation for constant battery readiness
Separate secondary charging output "S" for supporting and trickle charging the vehicle starter battery, max. 4A
Automatic battery regeneration during long periods of inactivity (twice a week)
Compensation of voltage losses on the charging cables for precise adherence to charging voltages
Intelligent microprocessor control considers the simultaneous supply of consumers connected to the battery
Precise battery temperature compensation (temperature sensor required)

Selectable charging programs / charging characteristics:

1. "Gel": Charging program for gel batteries, characteristic IU1oU2

Optimized for sealed, gas-tight gel/dryfit batteries with fixed electrolyte, which generally require a higher charging voltage level and longer U1 holding times to achieve short charging times with particularly high capacity storage and to prevent long-term battery "starvation". Also recommended for EXIDE MAXXIMA, high-current battery in AGM spiral cell technology.

2. "AGM": Charging program for AGM / fleece batteries, characteristic IU1oU2

Designed for charging sealed, gas-tight AGM (Absorbent-Glass-Mat) batteries and those in lead-fleece technology, which require a particularly high U1 level with coordinated holding times for full charging and then a moderate U2 level for trickle charging (round cell and plate technology).

3. "UNIVERSAL": Charging program for lead-acid / wet batteries, characteristic IU1oU2oU3

Universal program for charging and trickle charging of acid batteries in vehicles (mixed mobile/stationary). Offers short charging times with a medium U1 level, good charging factor and good acid mixing for open and closed, low-maintenance, maintenance-free standard, traction, lighting, solar and heavy-duty batteries.

Download Installation and Operating Instructions

Votronic Battery Charger Pb SMT Technical Data
