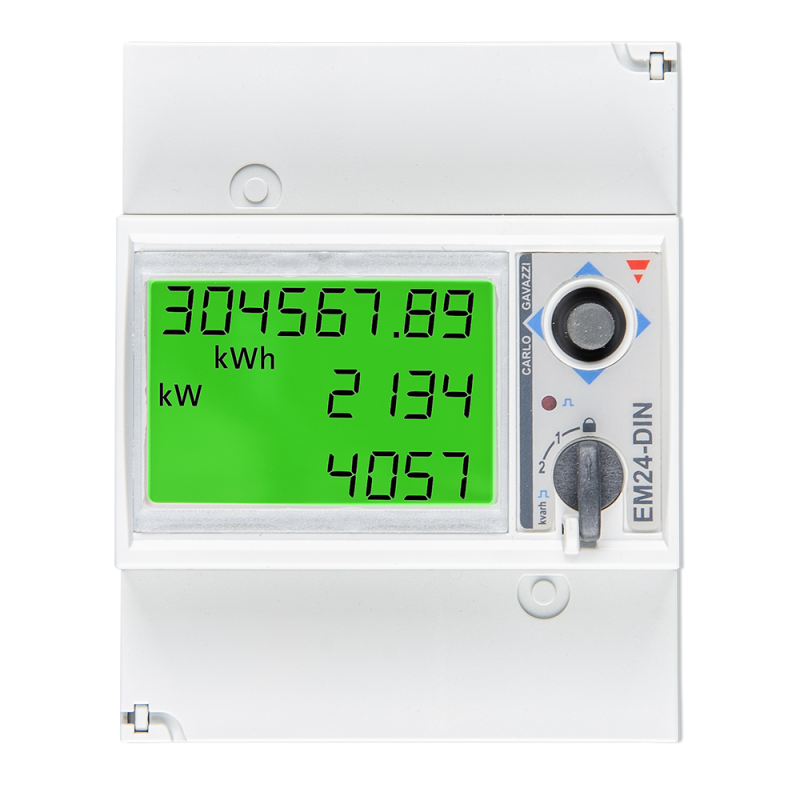

Victron electricity meter EM24 - 3 phase - max 65A/phase Ethernet

Victron electricity meter EM24 Ethernet

The energy meter can be used as:

• Network meter
• Control input for an ESS system
• Measuring the performance of a PV inverter
• Measuring the power of an AC generator

For all of the above uses, the meter should be connected to the local network so that the GX device can reach it.

GX Configuration

Unlike the RS485 model, the Ethernet EM24 is not automatically configured. Before use, the configuration of the electrical system (3-phase or single-phase) must be set on the meter itself. See the EM24 manual for more information.

In most networks, the meter will be automatically configured via DHCP when plugged in. For larger installations, we recommend configuring a static IP address. This will avoid an address change if the DHCP server assigns a different IP address in the future.

The configuration for Ethernet EM24 meters can be found under Settings → Modbus TCP Devices. By default, new devices are searched for every ten minutes, but a manual scan is also possible.
