Victron Smart IP43 Charger 48/13(1) 120-240V · Delivery time approx. 2–4 weeks

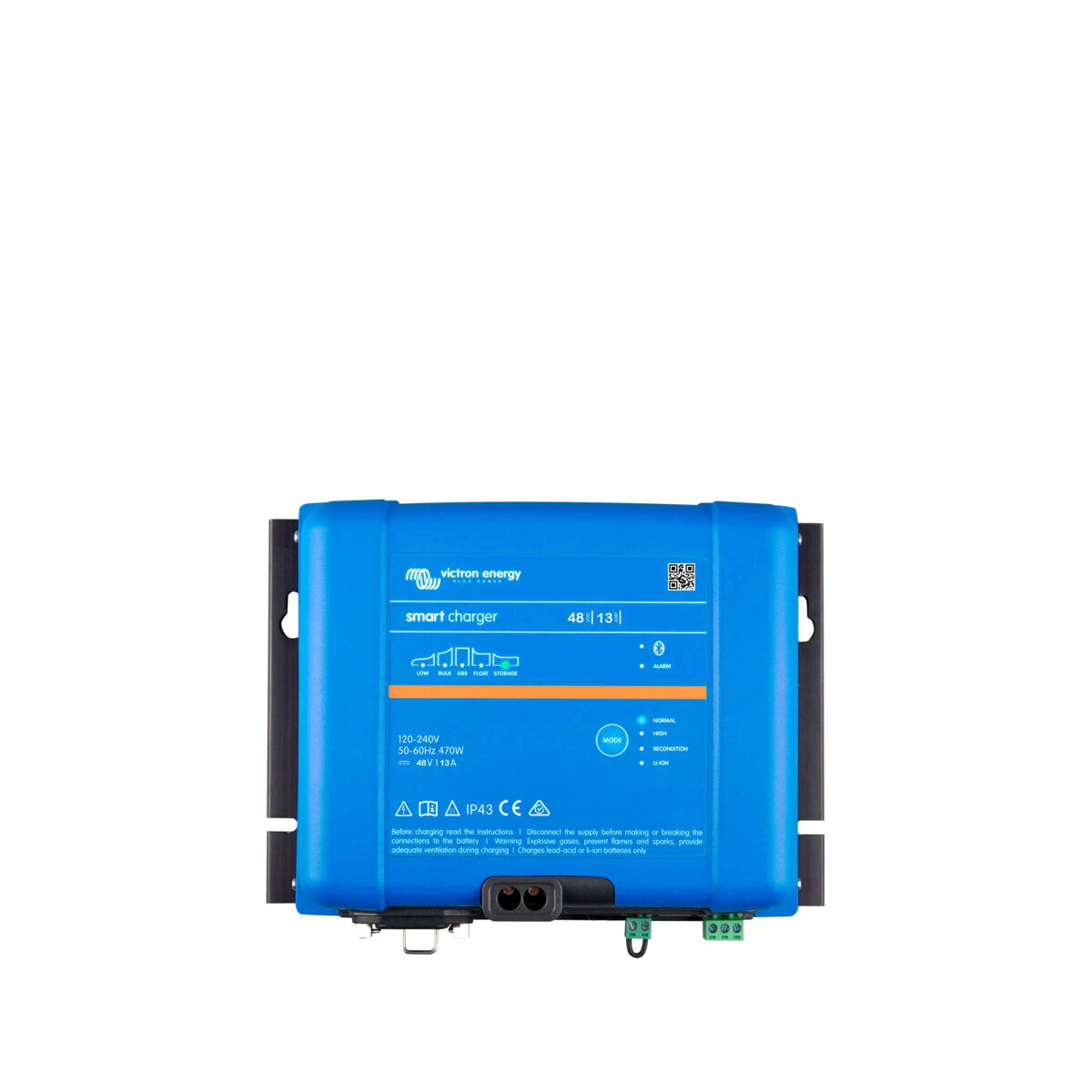

Victron Smart IP43 Charger 48/13(1) – Smart 48V Charger with Bluetooth, Quiet Passively Cooled (120–240 V)

The Victron Smart IP43 Charger 48/13(1) is a 48V battery charger with a max. 13A output, which you can conveniently set up via smartphone thanks to Bluetooth. You get a 6-stage charging algorithm with adaptive charge adjustment, designed for a long battery life. In addition to preset charging profiles for various battery types (including lithium), you can also configure the charging curves custom – up to max. 66 V DC. It also features a silent, passively cooled aluminum housing, IP43 protection, and the option to use the device as a power supply unit.

Intelligent Charging: Choose Profiles or Configure Them Yourself

Depending on whether you use lead-acid or lithium batteries, you can select appropriate preset charging cycles according to battery type. If your setup requires specific specifications, the charging characteristics can be individually adjusted. The adaptive charge adjustment independently optimizes the charging process to support battery life.

Operation via Bluetooth – and Externally Switchable

Via Bluetooth, you can make settings directly on your smartphone. Additionally, the charger is externally switchable – ideal if you want to integrate it into a control concept or switch it on and off depending on operating conditions.

Quiet, Robust, and Suitable for Control Cabinets

The passive cooling without a fan makes the charger silent. With IP43, it is protected against spray water and solid foreign objects (suitable for indoor use/protected mounting). It operates at -20 °C to +60 °C, with output power reduced above +40 °C.

Flexible Power Input and Solid Connections

The device can be powered with 100–250 V AC (45–65 Hz) or alternatively with 90–375 V DC. Connection terminals up to 16 mm² are available for installation. A connector plug without cable is included, so you can choose the supply line according to your setup.

Your Advantages at a Glance

• 48 V charger, max. 13 A (adjustable)
• 6-stage charging algorithm with adaptive adjustment
• For many battery types, incl. lithium – selectable profiles
• Individually configurable charging curves (up to 66 V DC)
• Bluetooth: Settings via smartphone
• Also usable as a power supply unit
• Input: 100–250 V AC or 90–375 V DC
• Passively cooled, without fan: silent
• IP43, humidity up to 95 %
• Programmable relay (5 A at 230 V AC / 48 V DC)
• Externally switchable
• Compact: 180 × 249 × 100 mm, 2.7 kg

If you are looking for a reliable 48V charger that can be neatly integrated into your system, operates quietly, and at the same time offers convenient configuration via Bluetooth, the Victron Smart IP43 Charger 48/13(1) is a very suitable solution.
