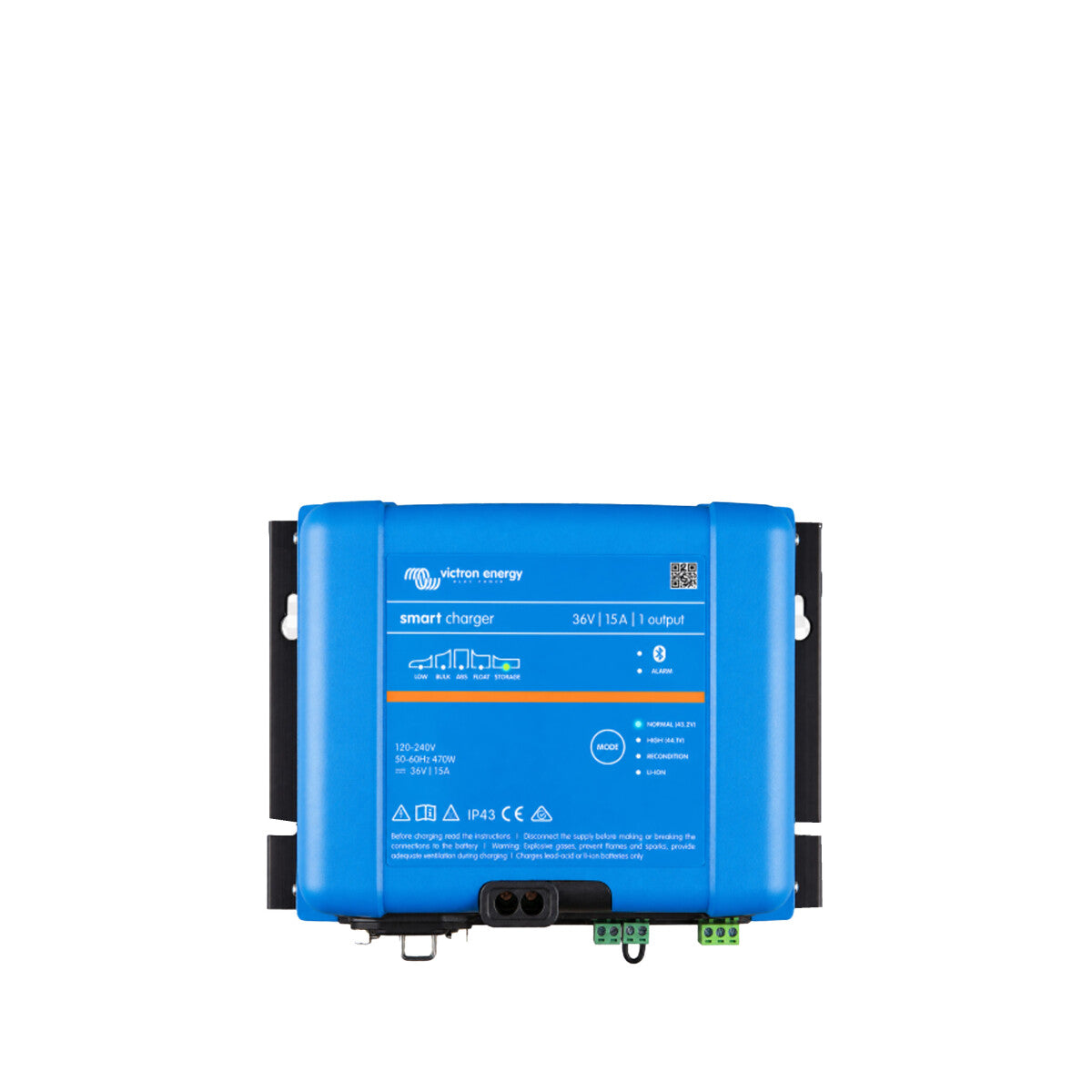

Victron Smart IP43 Charger 36/15(1) 120-240V · Delivery time approx. 2–4 weeks

Victron Smart IP43 Charger 36/15(1) – smart 36V charger with Bluetooth, 15 A adjustable and silent (120–240 V)

The Victron Smart IP43 Charger 36/15(1) is a 36V battery charger with max. 15 A (adjustable) that you can conveniently configure via Bluetooth using your smartphone. With a 6-stage charging algorithm and adaptive charging adjustment, it supports battery-friendly charging – including pre-set charging profiles for various battery types (including lithium). If you need more precision, the charging characteristics can be custom-set up to max. 49.5 V. Thanks to passive cooling without a fan, the device operates completely silently, and due to IP43, it is well suited for protected installations in technical rooms, vehicle, or control cabinet environments.

Pre-settings for battery types – or individual characteristic curve

Depending on the battery chemistry, you can select appropriate charging cycles according to battery type. For special applications (e.g., if the battery manufacturer specifies exact voltage values), the charging can be individually configured.

Smartphone instead of screwdriver: Bluetooth configuration

You can easily set up the charger via Bluetooth. In addition, the charger is externally switchable, which facilitates integration into existing control systems or switching concepts.

Also usable as a power supply unit – with flexible input

In addition to classic charging, the Smart Charger can also be used as a power supply unit. The input is flexible: 100–250 V AC (45–65 Hz) or alternatively 90–375 V DC. Connection terminals up to 16 mm² are available for wiring; a connection plug without cable is included.

Robust and quiet in operation

The aluminum housing also serves as a heat sink – meaning the charger does not require a fan and remains silent. It is designed for -20 °C to +60 °C (with reduced output power above +40 °C) and can be operated at up to 95% humidity. In addition, a programmable relay is available (5 A at 230 V AC / 36 V DC).

Your advantages at a glance

• 36 V charger, max. 15 A (adjustable)
• 6-stage charging algorithm with adaptive charging adjustment
• For many battery types, incl. Lithium – profiles selectable
• User-definable configuration up to 49.5 V
• Bluetooth: setting via smartphone
• Can also be used as a power supply unit
• Input: 100–250 V AC or 90–375 V DC
• Passively cooled (fanless): silent via aluminum housing
• IP43, humidity up to 95%
• Programmable relay (5 A at 230 V AC / 36 V DC)
• Externally switchable
• Compact: 180 × 249 × 100 mm, 2.7 kg

If you are looking for a powerful 36V charger that is quiet, flexible, and at the same time cleanly configurable via Bluetooth, the Victron Smart IP43 Charger 36/15(1) is particularly well suited for professional 36V energy systems.
