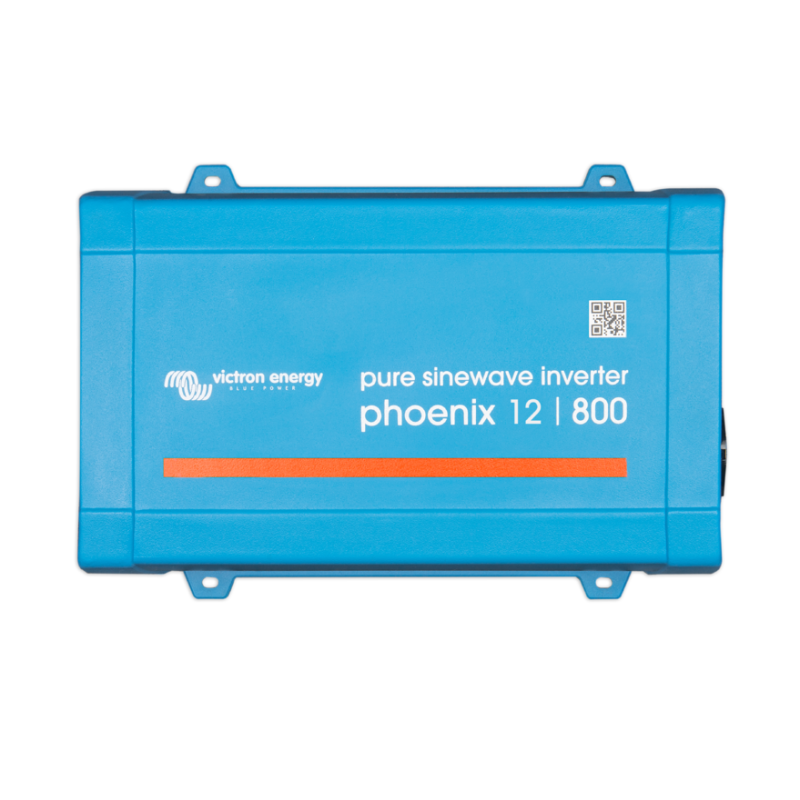

Victron Phoenix VE.Direct Schuko 12/800 inverter 650 W

Victron Phoenix inverter 650 W with Bluetooth option (12 V battery system)

SinusMax – cutting-edge technology
The Phoenix inverter series was developed for commercial use; it is suitable for a wide range of applications. The development aimed uncompromisingly at creating an inverter with a clean sine wave output and high efficiency. By using the latest hybrid HF technology, it was possible to present a quality product with compact dimensions and low weight that can easily deliver any desired power.

VE.Direct / Bluetooth dongle connection: Convenient device monitoring with your smartphone
The inverter can be connected to a PC or mobile phone using the VE.Direct connection.
It is also possible to keep an eye on the status of the device using your mobile phone. To do this, simply connect the dongle that you can find here in the webshop: Victron Bluetooth Dongle

Highest starting performance
A key feature of SinusMax technology is the particularly high starting power. This is not possible with conventional HF technology. Phoenix inverters are able to cope with the high starting currents of cooling compressors, tool motors and similar, for example. Load switching to other AC sources: The automatic load switch For smaller power outputs, we recommend the Filax automatic switch. Computers and other sensitive electronic devices can continue to operate practically without interruption, as the switching times are very short (less than 20 msec).

Eco mode
In ECO mode, the inverter switches to standby as soon as the load falls below a preset value (minimum load: 15W). In standby mode, the inverter then switches on for a short period of time (adjustable default setting: every 2.5 seconds). If the load exceeds a preset threshold, the inverter remains switched on.

Proven reliability
Complete bridging with a ring transformer topology has proven itself for years. The inverters are short-circuit proof and protected against overheating (whether caused by overload or by the ambient temperature).

Fully configurable:

• Thresholds for triggering and resetting alarms when the battery is low.
• Thresholds for shutdown and restart at low battery voltage levels.
• Dynamic shutdown: load-dependent shutdown threshold
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• Threshold for ECO mode on/off and ECO mode sensor
• Monitoring: input and output voltage, % load and alarms
