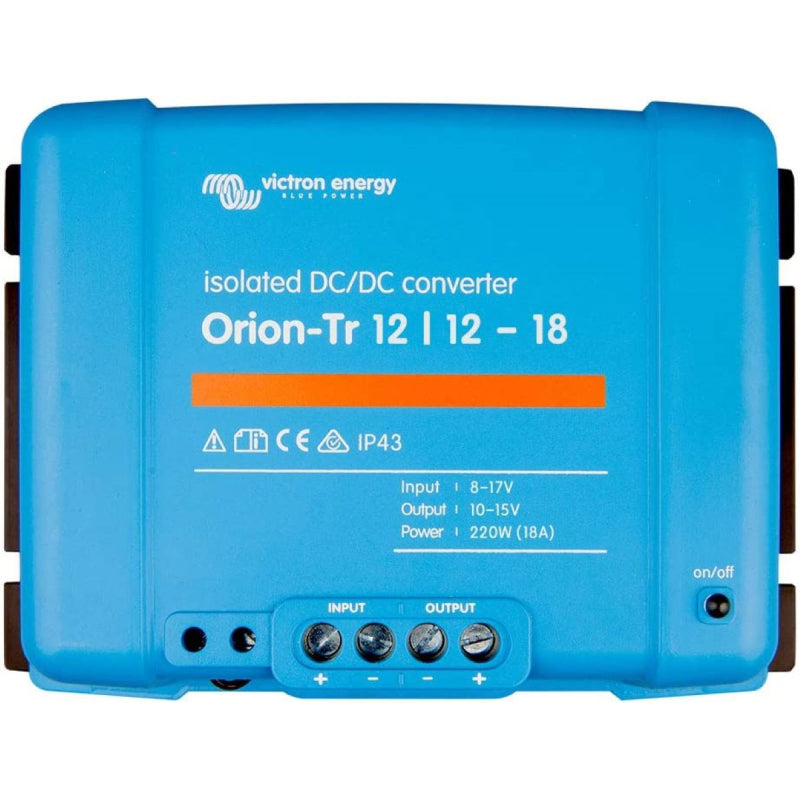

Victron Orion-Tr 12/12-18A (220W) DC-DC converter

Remote controlled on/off switching

The remote on/off switch eliminates the need for a high current switch on the input wiring. The remote on/off connection can be controlled by a power saving switch or by the motor's run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger

For example, for charging a 12 volt starter or additional battery in an otherwise 24 V system.

All models are short-circuit proof and can be connected in parallel to increase the output current.

An unlimited number of devices can be connected in parallel.

IP43 protection

When the screw terminals on the device are installed facing downwards.

Screw terminals

No special tools are required for installation.

Input fuse (not replaceable)

Only on the 12V and 24V models
