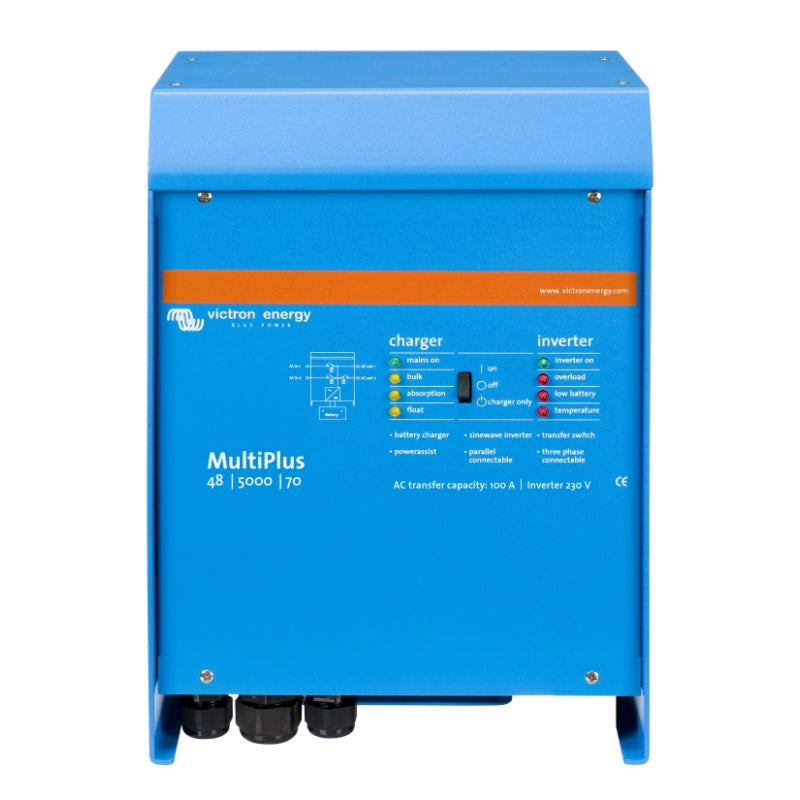

Victron MultiPlus 48/5000/70-100 inverter 4000W and charger 48V 70A

Victron Energy

Victron MultiPlus 48/5000/70-100 inverter 4000W and charger 48V 70A

Sale price€1.379,23

Tax included.

Quantity:

Innovative combination device from Victron: sine wave inverter and 48 V battery charger in one!

The Multiplus 48/5000/70 from Victron is a device combination of a 4000 W sine wave inverter and a 48 V battery charger. The smart integrated battery charger delivers an impressive 70A so that the batteries can be charged extremely quickly when shore/mains power is available. The sine wave voltage converter integrated in the Multiplus transforms the 48V direct current from the battery into a 230 V alternating current. Thanks to the real sine wave, the quality of the voltage is also perfect for sensitive electronic devices.
Also included: Powerful 100 A transfer switch.

Versatile use

The MultiPlus is a powerful pure sine wave inverter, an advanced battery charger using adaptive charging technology, and a high speed AC transfer switch in a single compact package. Models range from 800VA to 5000VA per module.

Unique PowerAssist feature

The MultiPlus prevents overloading a limited AC source. First, it automatically reduces the battery charge to protect against overload. Next, it boosts the output of a generator or shore power supply with energy from the battery.

Uninterruptible alternating current (UPS function)

In the event of a grid fault or an interruption of the shore power or on-board generator, the Multi's inverter is automatically switched on and takes over the supply of power to the connected consumers. The switchover takes place so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed.

Virtually unlimited power through parallel connection

Up to six Multis can be connected in parallel if high power requirements are required. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel operation, three-phase and split-phase operation.

On-site monitoring and control

Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, Smartphone or Tablet (Bluetooth Smart), Laptop or Computer (USB or RS232).

Remote monitoring and control

If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.

Remote configuration:

Victron Ethernet Remote, Venus GX and the Color Control Panel. The data can be saved and viewed free of charge on the VRM (Victron Remote Management) website.

Technical data

item number 300-3054
AC continuous power (W) 4000W
Voltage regulation 48V DC / 230V AC
Self-consumption without load 35W
Self-consumption without load in energy saving mode 15W
Operating ambient temperature range -40°C to 65°C
Number of battery outputs 1
Battery voltage 48V
IP protection IP21
Output voltage (V) 230V AC / alternating current
Power quality true sine wave
AC Output Frequency Range (Hz) 50Hz / +-0.1Hz
Manufacturer Part Number PMP485021010
Product type Powerful pure sine wave inverter and battery charger with adaptive charging technology in one device.
In addition, the MultiPlus devices have a transfer switch.
Transfer switch 1
Manufacturer Victron Energy
Dimensions 444x328x240
Weight 30kg
guarantee 5 year manufacturer warranty
Transfer switch switching capacity (A) 100A
