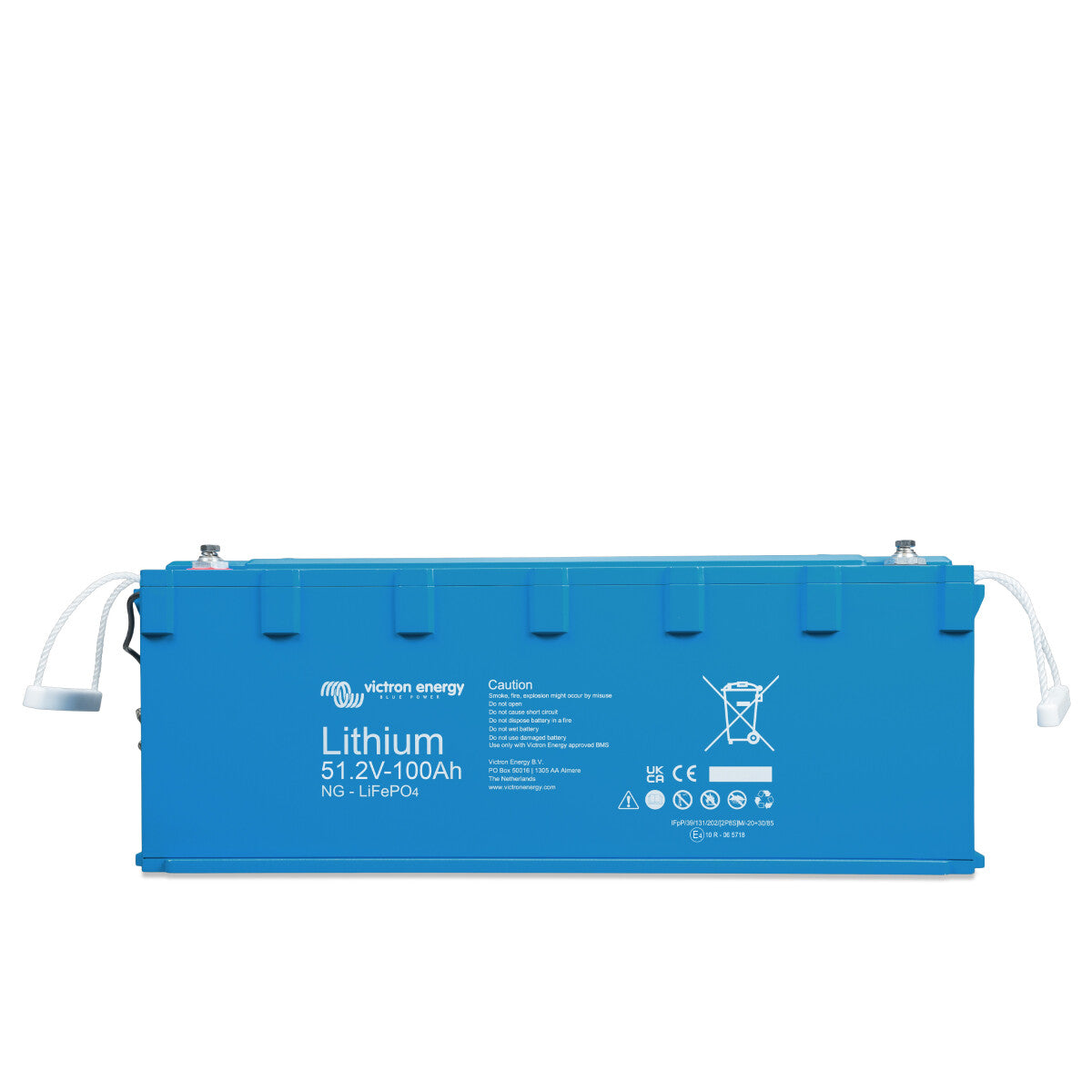

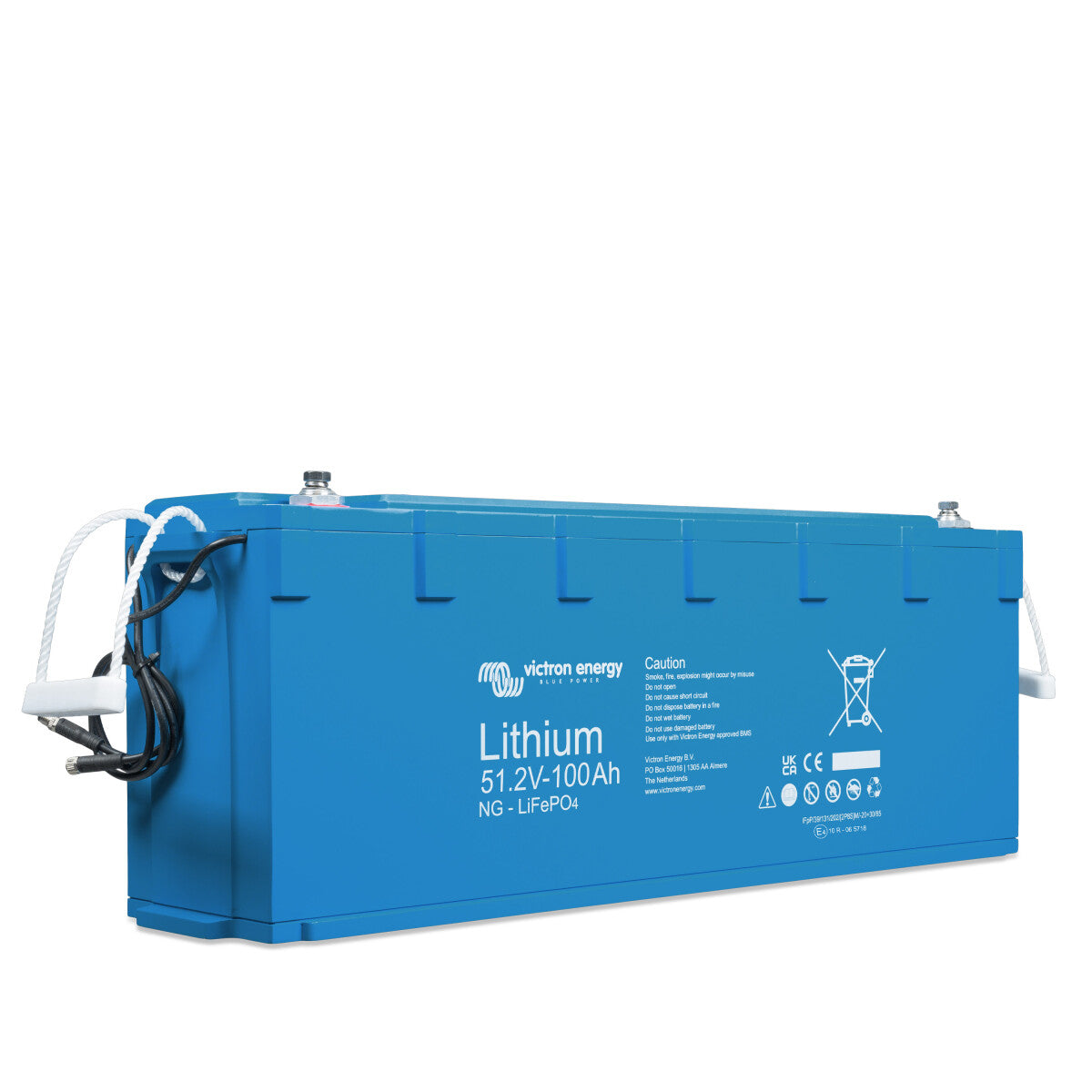

Victron LiFePO4 Battery 51.2V/100Ah NG

Victron LiFePO4 Battery 51.2V / 100Ah NG – Powerful Lithium Storage for Modern Energy Systems

The Victron LiFePO4 NG battery with 51.2 V and 100 Ah is a next-generation lithium battery specially developed for demanding energy storage applications. It builds on the proven Victron Lithium Smart series and combines high performance with modern monitoring technology, robust construction, and flexible expansion options. With integrated Bluetooth monitoring, IP65 protection, and modular scalability, this battery is ideal for off-grid systems, mobile applications, marine installations, and industrial energy storage solutions.

Thanks to the integrated shunt, connection to the VictronConnect app, and seamless integration into the Victron ecosystem, you maintain full control over your energy storage at all times.

Intelligent Monitoring thanks to Integrated Shunt

A special feature of the Victron NG series is the integrated shunt, which accurately records important battery data. This includes, among other things:

• Battery voltage
• Charge and discharge current
• Battery temperature

This data is transmitted directly to the Battery Management System (BMS). This allows the exact state of charge of the battery to be calculated and warnings or alarms to be triggered early. For you, this means maximum transparency and significantly safer operation of your energy storage.

Full Control via the VictronConnect App

Via the integrated Bluetooth interface, you can easily connect the battery to your smartphone or tablet. In the VictronConnect app, you get access to extensive system data, including:

• Cell voltages
• Cell status
• Currents and temperatures
• Battery alarms and warnings

Alternatively, the battery can also be integrated into a comprehensive energy management system via a Victron GX communication center.

Flexible Expansion for Large Energy Storage Systems

The Victron NG batteries are particularly flexible in use. You can connect them in series, parallel, or in series/parallel configuration to build battery systems of various sizes.

Possible System Voltages:

• 12 V
• 24 V
• 48 V

In total, up to 50 batteries can be combined into one system. This creates energy storage systems with impressive capacity:

• up to 192 kWh at 12 V
• up to 384 kWh at 24 V or 48 V

This makes this battery suitable for smaller off-grid installations as well as for large stationary storage solutions.

Robust Housing for Demanding Applications

The battery housing is protected according to IP65 and is thus reliably protected against dust and low-pressure water jets. This allows you to use the battery in challenging environments, for example:

• Marine applications
• Outdoor installations
• Industrial environments
• Off-grid systems

The integrated mounting brackets also facilitate installation and ensure that the battery remains securely fastened – even with movement or vibration.

Compatible Battery Management Systems (BMS)

For safe operation, the Victron LiFePO4 NG battery requires a compatible Victron BMS. Depending on the application, various solutions are available:

• VE.Bus BMS / VE.Bus BMS V2 – ideal for systems with Victron inverter/chargers
• smallBMS – recommended for smaller systems
• Smart BMS 12/200 – for automotive and marine systems with DC loads and alternators
• Smart BMS CL 12/100 – for DC systems with generators
• Lynx Smart BMS – optimal for larger energy storage solutions

The Lynx Smart BMS NG in particular enables full system integration, automatic system detection, and firmware updates for the battery.

Your Advantages with the Victron LiFePO4 NG Battery

• Modern LiFePO4 technology with a long service life
• Integrated shunt for precise battery monitoring
• Bluetooth monitoring via VictronConnect
• Flexible scaling up to 50 batteries per system
• Robust IP65 housing for demanding environments
• Very low self-discharge of only approx. 2% per month
• Perfect integration into the Victron energy ecosystem

Reliable Energy Storage for Your Victron System

With the Victron LiFePO4 NG 51.2 V 100 Ah battery, you get a powerful, intelligent, and durable lithium storage for modern energy systems. Whether off-grid system, mobile power supply, or stationary energy storage – this battery convinces with reliable technology, comprehensive monitoring, and maximum expandability.

If you want to operate your Victron system efficiently and safely in the long term, this NG generation is a particularly future-proof solution.



---



Technical Data	Victron LiFePO4 51.2 V 100Ah NG
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Max. Discharge Current	100 A
Max. Pulse Discharge Current	200 A
Discharge Cut-off Voltage	44.8 V
Max. Continuous Charge Current	100 A
Max. Pulse Charge Current	200 A
Weight	37 kg
Dimensions (open)	235 x 648 x 162 mm
