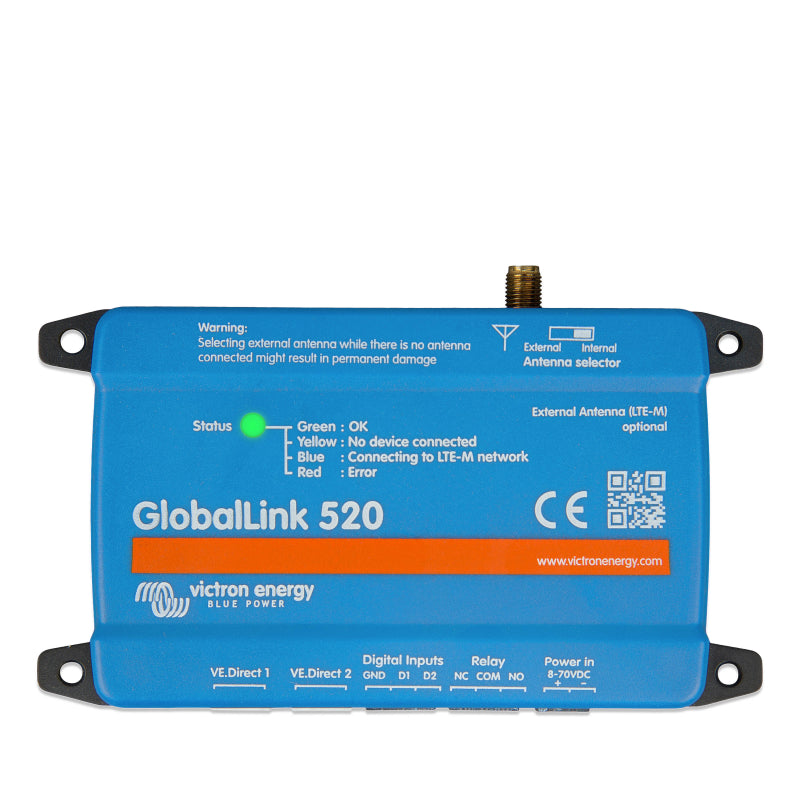

Victron GlobalLink 520 (LTE 4G-M to VE.Direct)

Victron Energy

Victron GlobalLink 520 (LTE 4G-M to VE.Direct)

Sale price€230,57

Tax included. Shipping calculated at checkout

Quantity:

Victron GlobalLink 520 (LTE 4G-M to VE.Direct)

We believe that deep insight into your system is critical to maintaining and managing your self-sufficient energy supply. Being self-sufficient does not mean being offline. That's why the GlobalLink 520 was developed. This device offers you free 4G LTE-M connectivity for all VE.Direct compatible devices for the first five years, with no monthly costs or subscriptions.

Worldwide connection with 4G LTE-M

LTE-M stands for LTE Cat-M1 or Long Term Evolution (4G), Category M1. This cellular technology is designed to connect IoT devices to existing 4G networks while using energy efficiently. LTE-M enables seamless handoffs and roaming, making it possible to use the device in mobile vehicles such as RVs. Check LTE-M availability in your area at https://1nce.com/en/coverage/ . Network coverage is continually expanding as local providers add support. Your purchase includes five years of connectivity, so you don't have to worry about separate data packages or SIM cards.

Effortlessly monitor and control your system

The GlobalLink 520 comes with two VE.Direct ports, which allow you to connect up to two VE.Direct compatible devices, such as a BMV battery monitor or an MPPT solar charge controller, directly to the VRM. With two digital inputs that also serve as meters and a remotely controllable relay, the device offers an ideal solution for monitoring and controlling your system.

Integrated antenna

The GlobalLink 520 has an integrated antenna that is designed for worldwide use. If a stronger reception is required or if the device is being installed in a commercial vehicle, for example, an external antenna can also be attached.

Victron Remote Management

The Victron Remote Management (VRM) online portal allows you to monitor your system anytime, anywhere. In VRM, you can check the status of your connected products, view detailed energy consumption graphs, create comprehensive analysis reports and set up automatic alarms to respond quickly to problems.

Technical data GlobalLink 520
Supply voltage 8 - 70VDC
Power consumption (relay open) 12 / 24 / 48 V 20mA / 10mA / 5mA
Power consumption (relay closed) 12 / 24 / 48 V 40mA / 20mA / 10mA
VE.Direct connections 2
Bluetooth Yes
WIRELESS INTERNET ACCESS no
Efficiency 98%
Operating temperature range - 20 °C - + 50 °C
Dimensions 123x67x23mm
