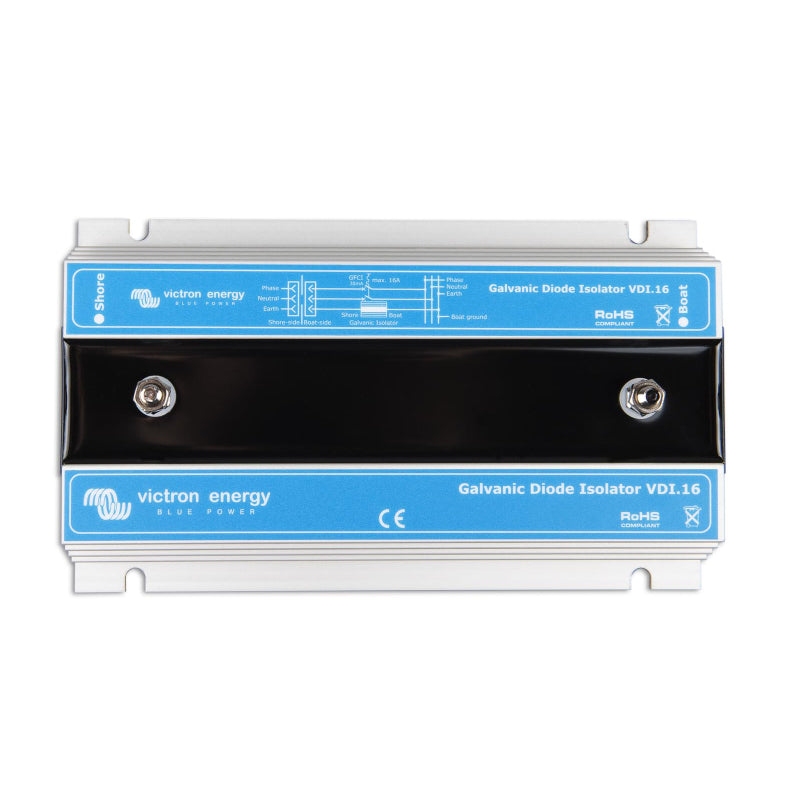

Victron Galvanic Isolator VDI-16 A

Victron energy Galvanic Isolator VDI-16

The galvanic isolator consists internally of two diodes connected in anti-parallel fashion. This connection allows the diodes to allow current to flow in both directions, but only when a certain voltage threshold is exceeded. The voltage at which the diodes conduct is 1.4 Vdc.

The isolator is installed directly behind the 230 V connection of your boat. The forward voltage of the galvanic isolator is higher than the potential difference between metals. As a result, the voltage does not allow conduction and the galvanic isolator prevents any electrolytic current. However, if a (higher) fault current occurs in the AC circuit, the diodes allow the current to pass through and the residual current device interrupts the circuit.


Specifications:

- Maximum current 16 A
- Peak current (20 ms) 1600 A
- Connection 2 bolts M6
- Material anodized aluminum
- Protection class IP 67
- Weight 1kg
- Dimensions (HxWxD) VDI-16 60 x 120 x 200 mm
