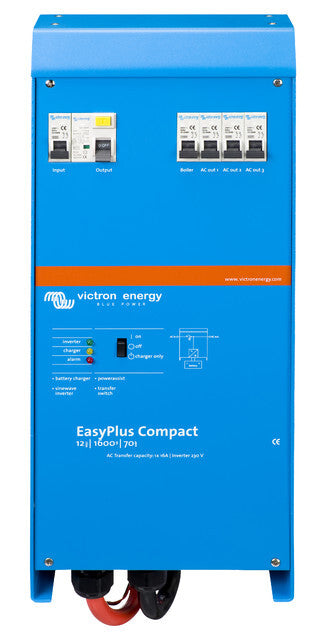

Victron EasyPlus C 12/1600/70-16 230V VE.Bus

The Phoenix EasyPlus is a high-quality multi-purpose device for Power supply with a powerful sine wave converter, a special battery charger, an ultra-fast switch and a AC power distribution, all in one compact and lightweight housing. The new system was developed for those users who who value the benefits of a complete energy supply system, and not have to deal with complicated installation problems and cumbersome technical specifications.

The EasyPlus ensures an uninterrupted power supply where and when it is needed. The unique PowerAssist® functionality ensures the necessary power when shore or generator power is limited. Increased performance from battery power. Maximum safety The integrated residual current device (RCD Residual DeviceNet®.

The name EasyPlus stands for easy installation and problem-free use. The system is installed in five installation steps, saving time and space EasyPlus contains all connections (sockets and plugs) for the AC connections and the pre-assembled battery cables to shorten installation time.

Step 1. After selecting the installation location (as close to the battery as possible), the wall mount. EasyPlus is attached to it with the supplied Fastened with screws.

Step 2. Shore power/

Step 3. The control panel (option) is connected with a UTP cable connected

Step 4. Connect the battery cable and temperature sensor (included) to the batteries connected.

Step 5. After switching on the residual current device (RCD), the AC distributor and the converter/charger, the device is ready for operation.
