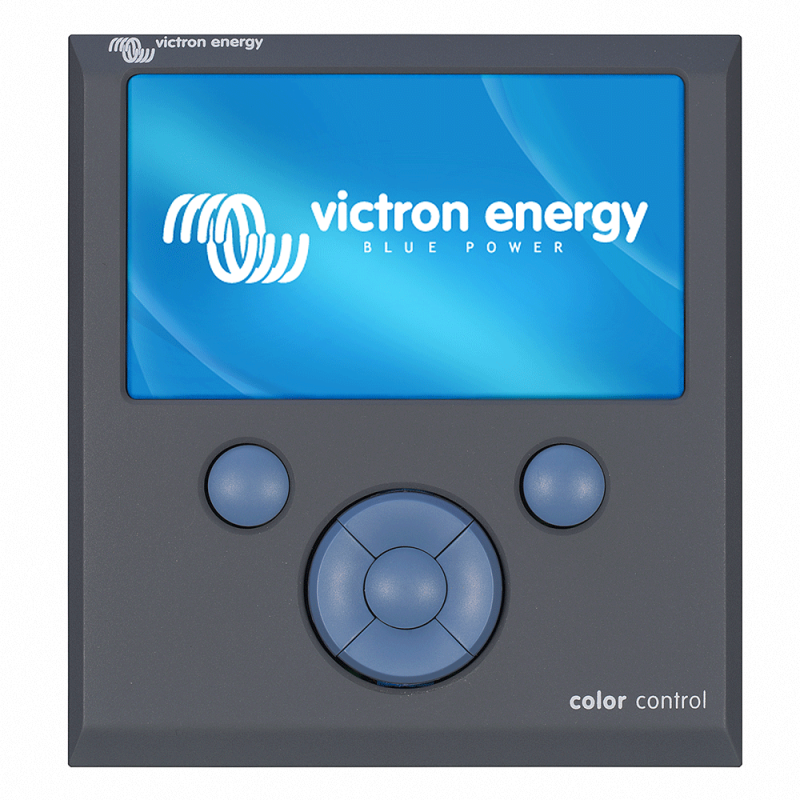

Victron Color Control GX

Color Control GX

The Color Control (CCGX) offers intuitive operation and monitoring of your installation. The list of products that can be connected to it is endless: batteries, inverters, Multis, Quattros, MPPT solar chargers, BMV, Lynx Ion + Shunt and even more devices

VRM Online Portal

Apart from monitoring and operating devices on site directly on the CCGX, the readings are also forwarded to our free website for worldwide remote monitoring: the VRM Online Portal.

Remote Console on the VRM

The CCGX can be monitored, controlled and configured remotely via the Internet. It is as if you were standing right in front of the device. It can also be operated completely remotely. The same functionality is also available on the local network, the Remote Console on the LAN.

Automatic unit start/stop

A highly flexible start/stop system. Use of charging, voltage, load and other parameters. Specific settings for rest periods and optional monthly test run can be set.

Monitoring the reserve batteries

With its Energy Storage System, the CCGX ensures that reserve batteries are always 100% charged and are immediately used in the event of a power failure.

Data recording

If the system is connected to the internet, all data is sent to the VRM portal. If no internet connection is available, the CCGX stores the data internally for up to 48 hours. By inserting a micro SD card or USB stick, even more data can be stored. These files can be uploaded to the VRM portal or converted offline for analysis using the VictronConnect app.

Internet connection

The CCGX can be connected to the Internet using an Ethernet cable and via Wi-Fi. To connect it via Wi-Fi, a Wi-Fi USB accessory is required. The CCGX does not have an internal cellular modem: there is no slot for a SIM card. Use a standard GPRS or 3G router instead.
