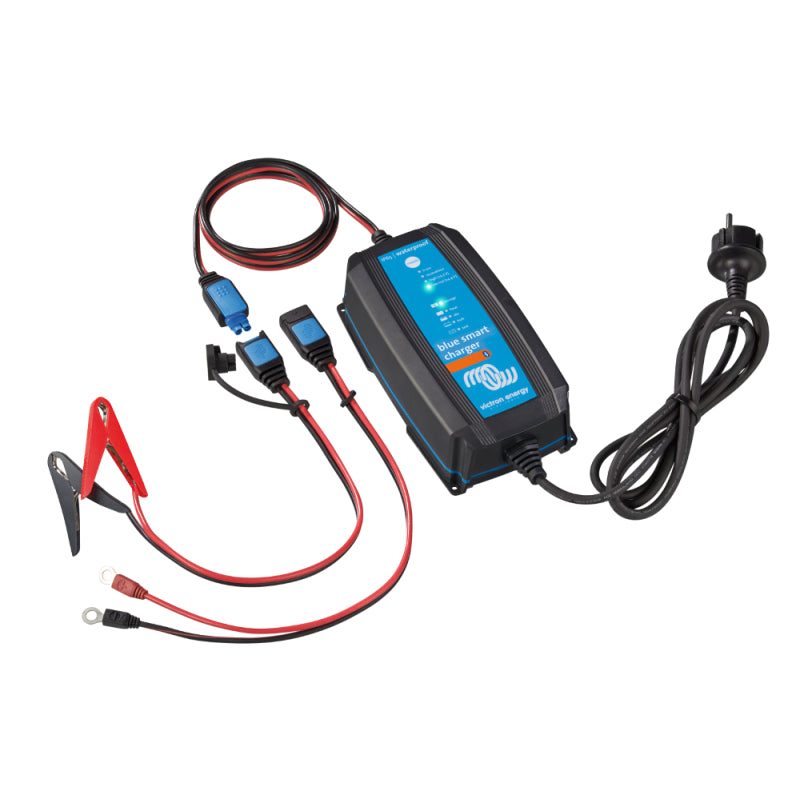

Victron Blue Smart IP65 battery charger Bluetooth 12/5 +DC cable

Powerful battery charger from Victron for 12V batteries with wireless monitoring function

Ready for Bluetooth Smart
The Blue Smart IP65 battery charger is the wireless solution for monitoring voltage and current, adjusting Settings and to update the charger when new features become available.
Simply download the app onto your smartphone and connect it to the battery charger via Bluetooth.

Practical connection cables included
The batteries can be easily connected using the included cables.
You can either use the practical crocodile clips or connect the battery to the M8 eyelets.

The VictronConnectApp
Setting, displaying and configuring your Blue Smart IP65 charger using your smartphone. Using the VictronConnect app, you can view the View the status of your charger and battery and even the functions of your charger By default, the voltage and the current is displayed on the screen

High performance level
With an efficiency of up to 94%, these chargers generate up to four times less heat than the industry standard. After the battery has been fully charged, the power consumption drops to less than 0.5 watts, which is about five to ten times better than the industry standard.

Adaptive 6-stage loading algorithm: Test- Bulk - Absorption - Recondition - Float - Storgage
The Blue Smart charger is characterized by its microprocessor-controlled, “adaptive” battery management. “Adaptive” means that the charging process is automatically adapted to the type of battery usage.

Storage mode:
Less maintenance and aging when the battery is idle:
The storage mode is activated whenever no discharge has taken place within 24 hours. The float voltage is then reduced to 2.2V/cell (13.2V for a 12V battery) to minimize gas evolution and thus to prevent corrosion on the positive plates. Once a week the voltage is increased to the level of the gassing voltage. This creates a kind of equalizing charge that prevents electrolyte stratification and sulfation - the two main causes of premature Battery failure - prevented.

Also charges lithium-ion (LiFePO4) batteries
LiFePO4 batteries are charged with a simple constant current phase – constant voltage phase – float voltage phase Algorithm loaded.

The settings NIGHT and LOW
If the device is in NIGHT or LOW mode, the output current is reduced to a maximum of 25% of the nominal output and the The charger works completely silently. NIGHT mode ends automatically after 8 hours. LOW mode can be ended manually.

Protection against overheating The output current will be reduced when the temperature rises up to 50°C, but the Blue Smart charger will not fail.

Technical data :
