Victron Battery Balancer - Charge level balancer for series-connected batteries

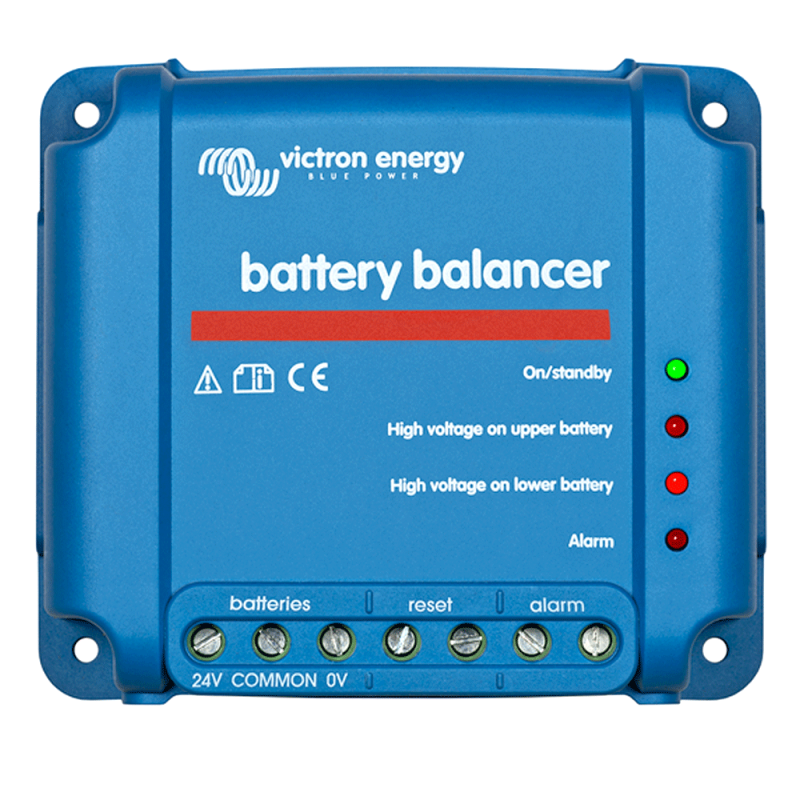

Victron Battery Balancer

The Battery Balancer balances the charge level of two 12 V batteries connected in series or of several parallel strings of batteries connected in series.

When the charging voltage of a 24 V battery system rises above 27 V, the battery balancer switches on and compares the voltage of the two batteries connected in series.
The battery balancer draws a current of up to 0.7 A from the battery (or batteries connected in parallel) with the highest voltage. The resulting difference in charging current then ensures that all batteries adjust to the same charge level. If necessary, several balancers can be connected in parallel.
A 48 V battery bank can be balanced with three battery balancers.
